Operating Instructions Safety Switch STP-BI...
Subject to technical modifications; no r
esponsibility is accepted for the accuracy of this information.
© EUCHNER GmbH + Co. KG
100209-08-05/13 (translation of the original operating instructions)
clearance of 50.8 mm must be maintained. This
does not apply if the moving cables are equipped
with suitable insulation materials which possess an
identical or higher dielectric strength compared to
the other relevant parts of the system.
The operating voltage for the guard locking solenoid
must match the value on the rating plate (e.g. U
S
=
AC/DC 24 V).
f
For terminal assignment see Figure 2.
Functional check
Warning! Danger of fatal injury as a result of
faults in installation and functional check.
Before carrying out the functional check, make
sure that there are no persons in the danger
area. Observe the valid accident prevention
regulations.
After installation and any fault, the safety function
must be fully checked. Proceed as follows:
f Mechanical function test
The actuator must slide easily into the actuating
head. Close the safety guard several times to check
the function.
f Electrical function test
1. Switch on operating voltage.
2. Close all safety guards.
In case of guard locking by solenoid force: 
activate guard locking.
f
The machine must not start automatically.
f
It must not be possible to open the safety guard.
3. Enable operation in the control system.
f
It must not be possible to deactivate the guard
locking as long as operation is enabled.
4. Disable operation in the control system and
deactivate guard locking.
f
The safety guard must remain locked until there
is no longer any risk of injury.
f
It must not be possible to start the machine as
long as the guard locking is deactivated.
Repeat steps 2 - 4 for each safety guard.
f BI-state function test
1. Switch on operating voltage and close the
safety guard.
2. Switch operating voltage off.
f
It must not be possible to open the safety guard.
3. Switch on operating voltage.
4. Deactivate guard locking and open safety
guard
5. Switch operating voltage off.
f
It must be possible to close and open the safety
guard as required.
Repeat the function test for each safety guard.
Inspection and service
If damage or wear is found, the complete switch
and actuator assembly must be replaced.
Replacement of individual parts or assemblies
is not permitted!
No servicing is required, but regular inspection
of the following is necessary to ensure trouble-free
long-term operation:
f
correct switching function
f
secure mounting of components
f
dirt and wear
f
sealing of cable entry
f
loose cable connections or plug connectors.
Note: The year of manufacture can be seen in the
bottom, right corner of the rating plate.
Exclusion of liability under the following
circumstances
f
incorrect use
f
non-compliance with safety regulations
f
installation and electrical connection not per-
formed by authorized personnel
f
failure to perform functional checks.
EC declaration of conformity
The manufacturer named below herewith declares
that the product fulfills the provisions of the
directive(s) listed below and that the related stan-
dards have been applied.
EUCHNER GmbH + Co. KG
Kohlhammerstraße 16
70771 Leinfelden-Echterdingen, Germany
Directives applied:
f
Machinery directive 2006/42/EC
Standards applied:
f
EN 60947-5-1:2004 + Cor.:2005 + A1:2009
f
EN 1088:1995+A2:2008
Leinfelden, July 2010
Dipl.-Ing. Michael Euchner
Director
Duc Binh Nguyen
Authorized representative to draw up documenta-
tion
The signed EC declaration of conformity is included
with the product.
Technical data
Parameter Value
Housing material Reinforced thermoplastic
Degree of protection
acc. to IEC 60529
IP65
Mechanical Life 1x10 6 operating cycles
Ambient temperature -20 … +55 °C
Degree of contamination
(external, according to
EN 60947-1)
3 (industrial)
Installation position Any
Approach speed, max. 20 m/min
Extraction force (not locked) 30 N
Retention force 20 N
Actuating force, max. 35 N
Actuation frequency 1,200/h
Switching principle Slow-action switching contact
Contact material Silver alloy, gold flashed
Connection Plug connector SR11, 11-pin+PE
Conductor cross-section
(rigid/flexible)
0.5 ... 1.5 mm 2
Rated insulation voltage U
i
= 50 V
Rated impulse withstand
voltage
U
imp
= 1.5 kV
Rated short-circuit current 100 A
Switching voltage, min.,
at 10 mA
12V
Utilization category
according to IEC 60947-5-1
AC-15 4 A 50 V / DC-13 4 A 24 V
Switching current, min.,
at 24 V
1 mA
Short circuit protection
acc. to IEC 60269-1
4 A gG
Conv. thermal current I
th
4 A
Operating voltage DC 24 V (+10%/-15%)
Control voltage DC 24 V (+10%/-15%)
Solenoid power consumption 8 W
Duty cycle 100%
Locking force F
max
Straight actuator with bush
Bent actuator with bush
2,500 N
1,500 N
Locking force F
Zh
in accordance with
test principles GS-ET-19
(F
Zh
=
F
max ) = 2,000 N
1.3
Switch with increased retention force STP.B..., STP.C...
Actuating force at 20 °C
45 N
Mechanical life, retention 1 x 10 5 operating cycles
Reliability values according to EN ISO 13849-1
B
10d
3 x 10 6

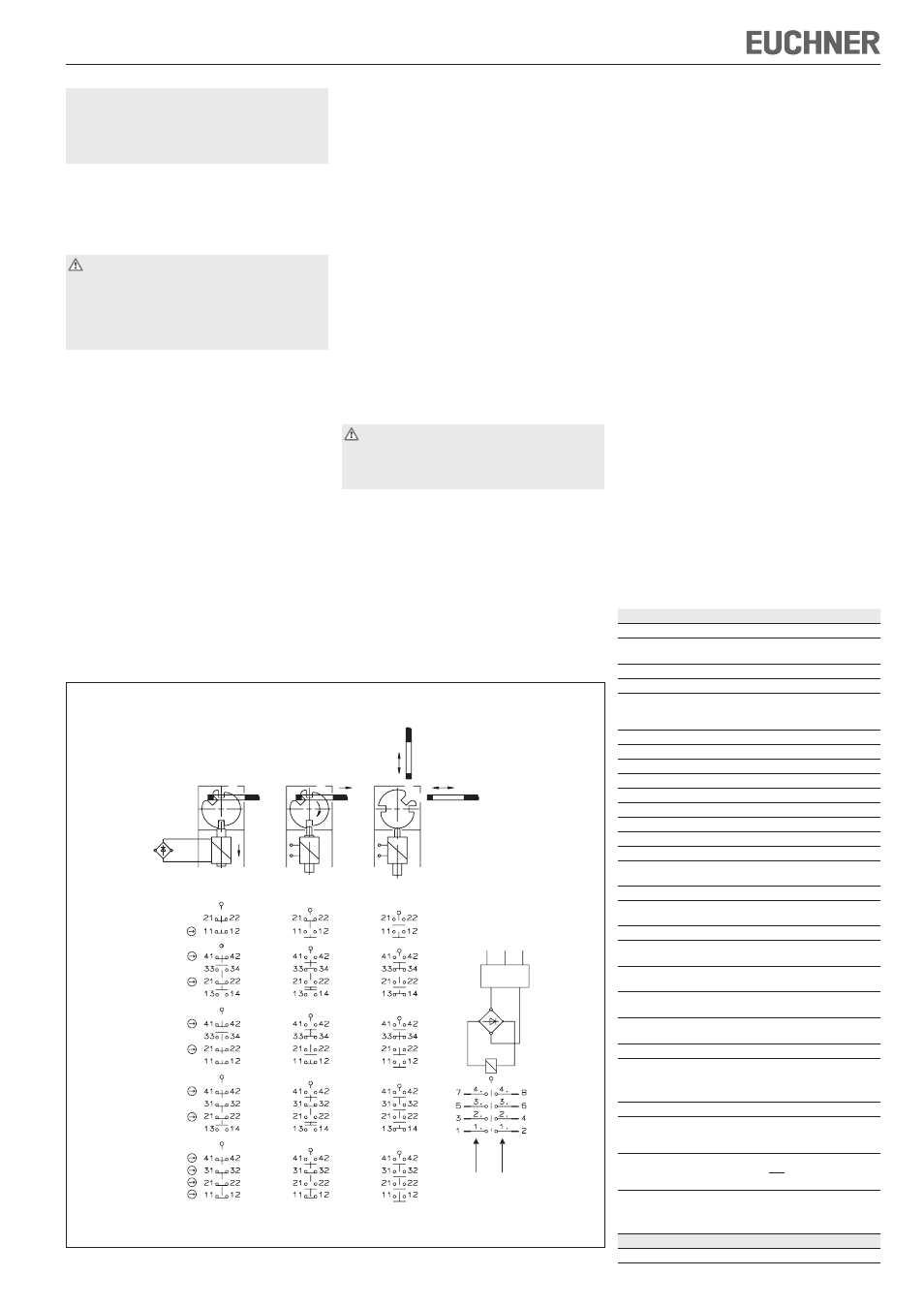

Figure 2: Switching elements and switching functions
E1
E2
E1
E2
v
h
E1 E2
9 10 11
Type
Plug connector
terminal
assignment
SR11
Ordinal numbers
of switching
contacts
STP-BI-3-537..
STP-BI-3-4131..
STP-BI-3-2131..
STP-BI-3-4121..
STP-BI-3-4141..
Pin 9 0 V
Pin 10 Control voltage + 24 V
Pin 11 Operating voltage + 24 V
Door closed
and locked
Door closed
and not locked
Door open
