14 CEM3 Sensor+ Portable Pack Retrofit Manual

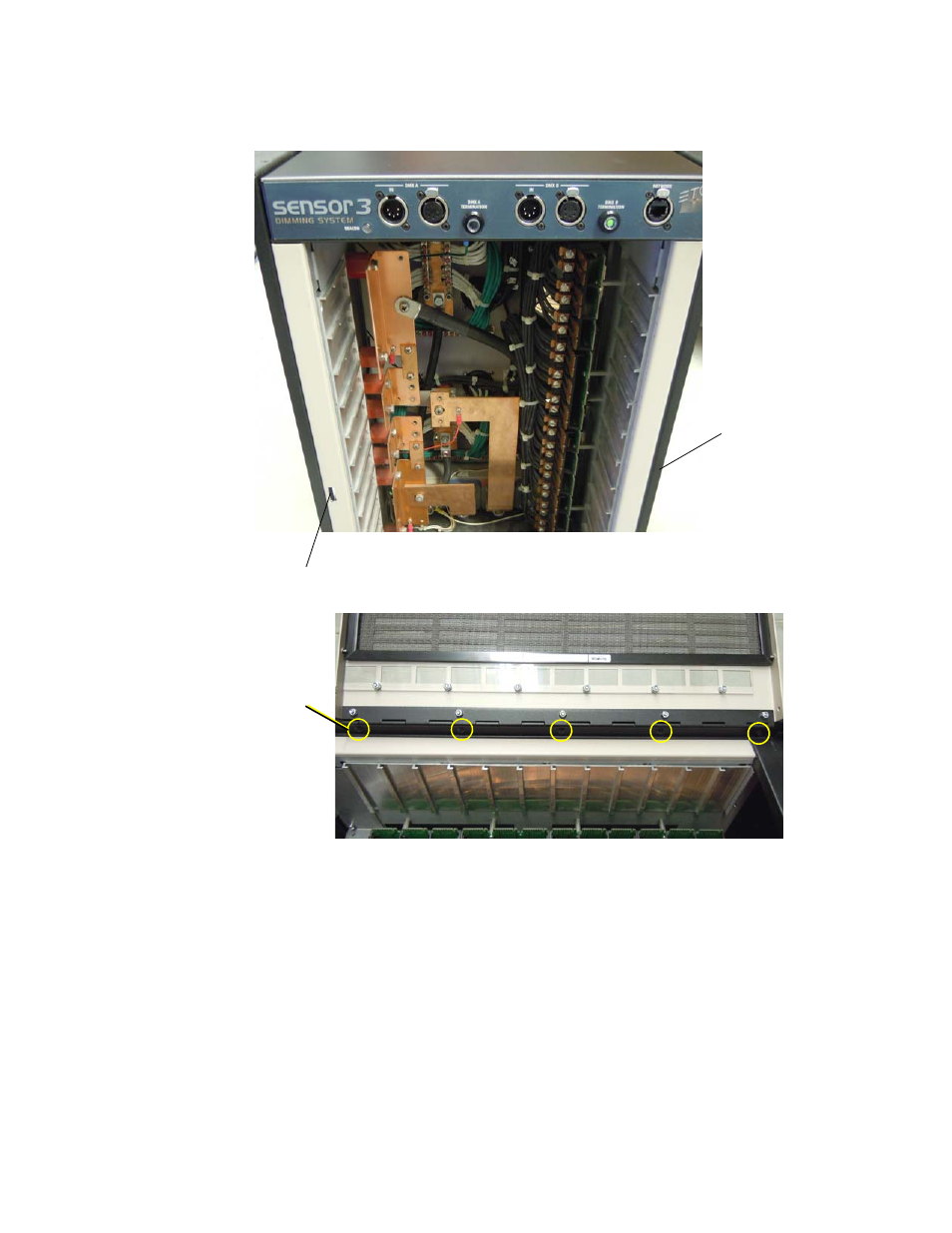

Step 12: Place the pack side rails back into their original locations and secure them with
the 5/32” allen screws removed earlier. three screws top and bottom, for each
side rail (24 screws total). Be sure to put the side rail with the door hinge screw
holes in the appropriate location, opposite the door latch retainer.
Step 13: Attach the new door to the side rail using the screws removed earlier.
Step 14: Replace the dimmer modules to their appropriate locations
Step 15: Insert the new CEM3 control module into the control module slot.
Step 16: Connect power to the rack.
Step 17: Power up the control module and configure it according to the CEM3
Configuration Quick Guide that accompanied the module in the upgrade kit.
Door latch retainer
Place side rail
with door hinge
screws holes in
this location.
Replace hinge
screws
