CEM3 Sensor+ Portable Pack Retrofit Manual

Remove the CEM+ Backplane

Step 1:

Remove the lid retaining bolts using a wrench (may be 7/16” or 3/8” depending

on your pack model). The bolts are found at the top of each side of the pack, just

beneath the lip of the carrying handles.

Step 2:

Raise the lid from the data connection side to expose the CEM+ backplane.

Step 3:

Disconnect the multi-colored DMX ribbon cable and CAT5 cable from the

backplane.

Step 4:

Remove the lid entirely to expose the inner cavity of the pack.

Step 5:

Disconnect the power wire harness and dimmer output cable from the backplane.

Step 6:

Remove the backplane screws found at the top corners on each side of the

backplane using a #2 phillips screwdriver.

Step 7:

Bend in the side arms of the backplane and remove the CEM+ backplane from

the pack.

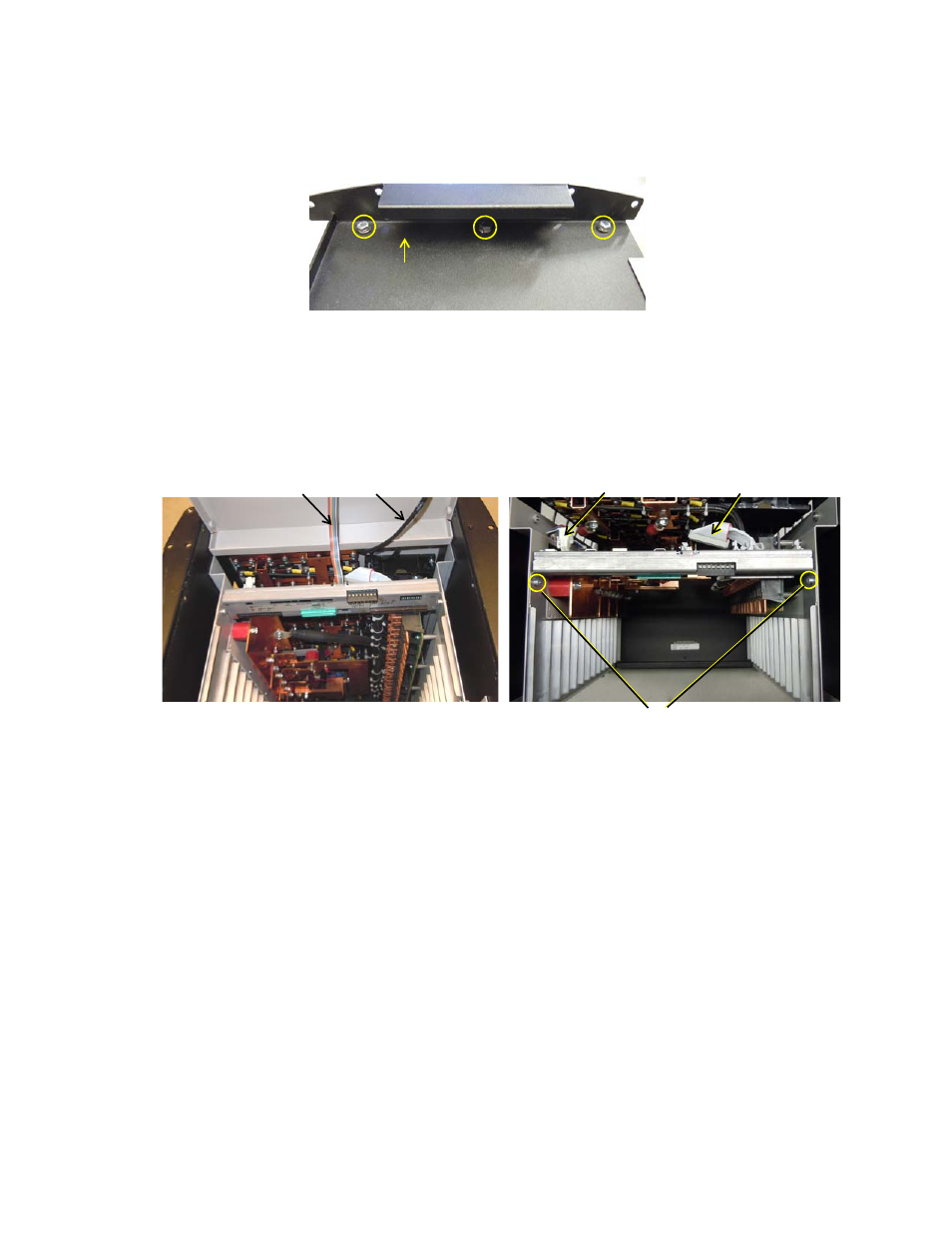

Side View of Pack

Disconnect these from Backplane

DMX

Ethernet

Power

Dimmer Output

Remove these screws
