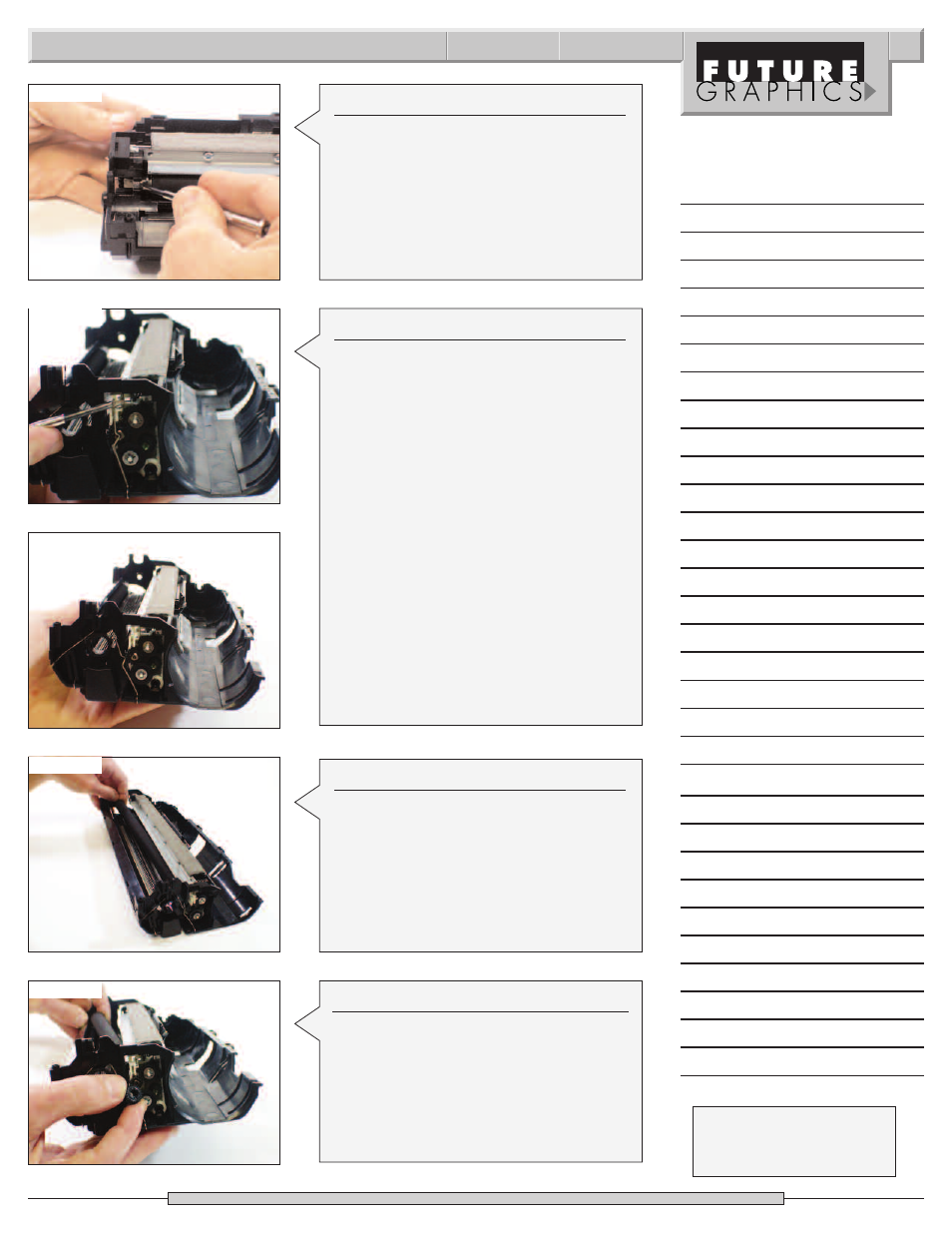

Photo 22

Photo 23

Step 21

Remove the gear and the metal developer
roller bearing from the contact side of the
roller.

(See Photo 24)

Photo 24

Need help with a particular remanu-
facturing problem?
Call the Technical Resource Center from
8am - 5pm PST: 800 394.9900

Photo 20

Photo 21

Step 18

Remove the metal developer roller bear-
ing from the gear side of the cartridge.

(See Photo 20)

Step 19

Move the developer roller contact bar to
the side.

(See Photo 21 & 22)

Step 20

Move the drive gear end of the developer
roller out and slide the roller away from
the contact end.

(See Photo 23)

Brother DR-250 Technical Instruction

5

Notes
