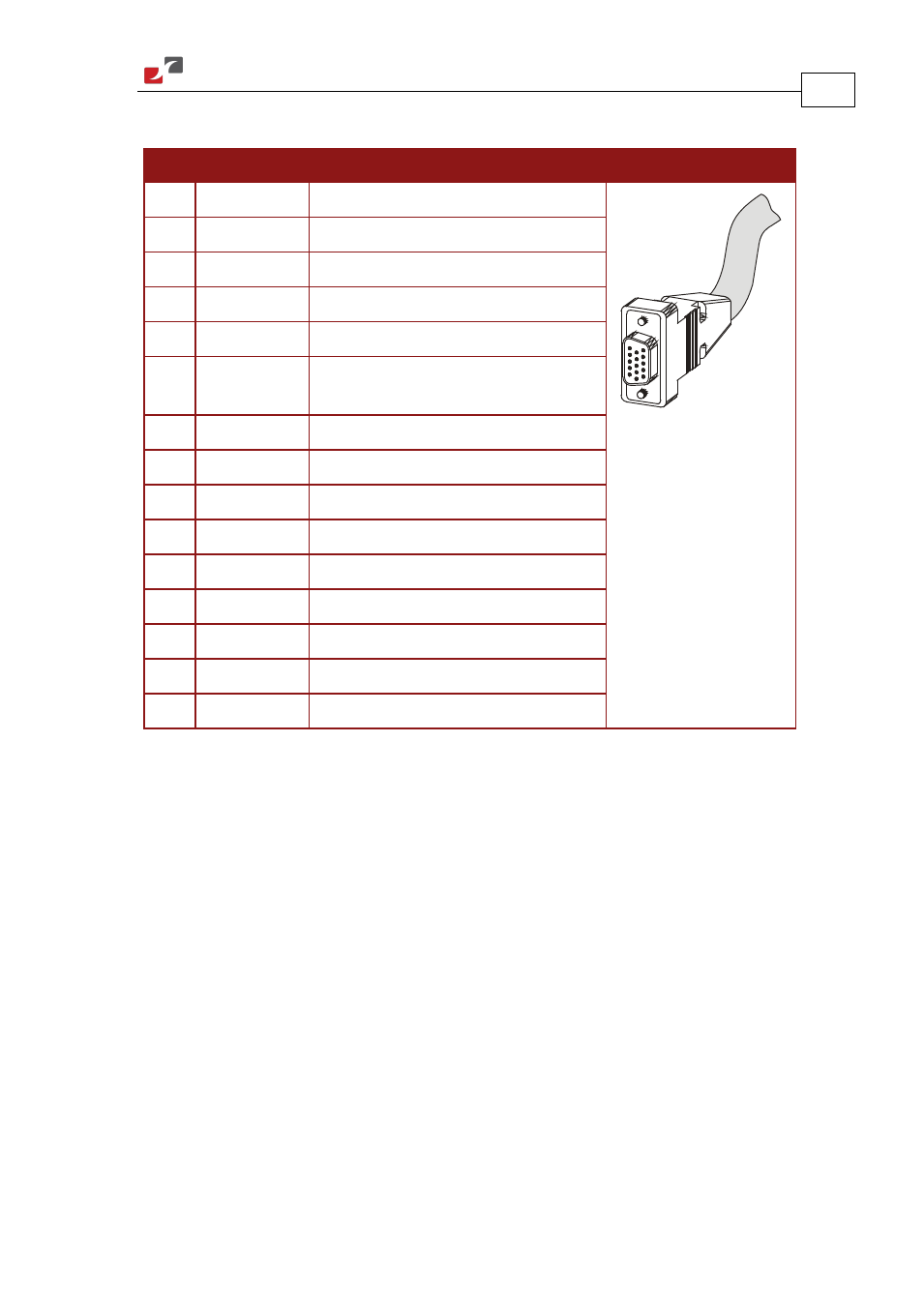

3.8.1.2. Digital Output (as Sink Configuration) & Input (as Source Configuration)
Pin Signal Function Pin Positions
1 IN1 Programmable input 1 return
2 IN2 Programmable input 2 return
3 OUT1 Programmable output 1 up to 50 mA
4 OUT2 Programmable output 2 up to 50 mA
5 OUT3 Programmable output 3 up to 50 mA
6 INRET General input for positive connection /
“Common Anode”
7 IN3 Programmable input 3 return
8 IN4 Programmable input 4 return
9 VDDRET External 24 VDC supply return
10 VDDIN External 24 VDC supply pos. input
11 IN5 Programmable input 5 return
12 IN6 Programmable input 6 return
13 OUT4 Programmable output 4 up to 50 mA
14 VDDRET External 24 VDC supply return
15 VDDIN External 24 VDC supply pos. input
Table 11: Digital Output (as Sink Configuration) & Input (as Source Configuration) P1 Cable -
Pin Assignments
