3.8.1.1. Digital Output (as Source Configuration) & Input (as Sink Configuration)
Pin Signal Function Pin Positions
1 IN1 Programmable input 1
2 IN2 Programmable input 2
3 OUT1 Programmable output 1 up to 0.5 A
4 OUT2 Programmable output 2 up to 0.5 A
5 OUT3 Programmable output 3 up to 0.5 A
6 INRET General input return 1 to 6/ “Common
Cathode”
7 IN3 Programmable input 3
8 IN4 Programmable input 4
9 VDDRET External 24 VDC supply return
10 VDDIN External 24 VDC supply pos. input
11 IN5 Programmable input 5
12 IN6 Programmable input 6
13 OUT4 Programmable output 4 up to 0.5 A
14 VDDRET External 24 VDC supply return
15 VDDIN External 24 VDC supply pos. input

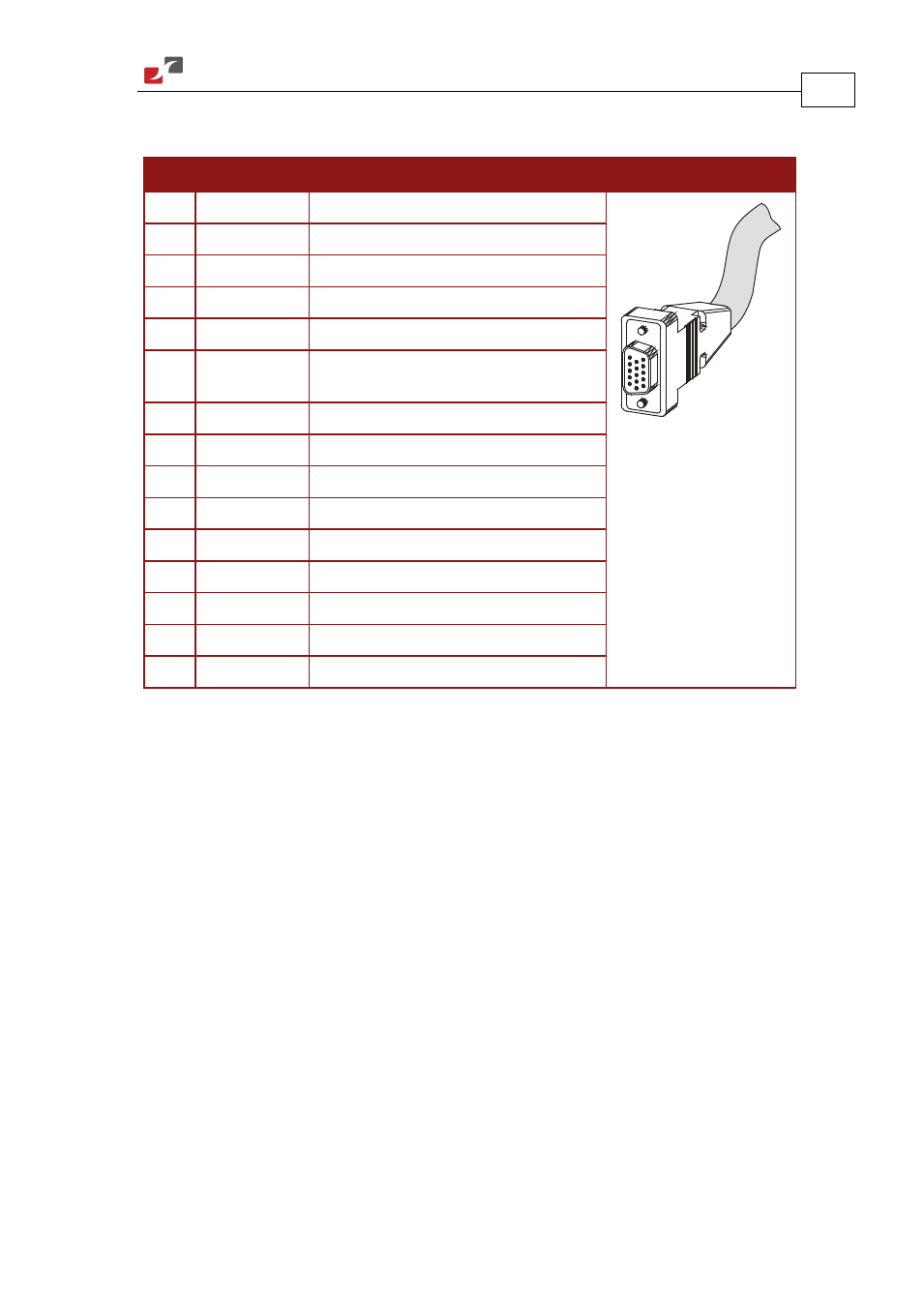

Table 10: Digital Output (as Source Configuration) & Input (as Sink Configuration) P1 Cable -
Pin Assignments
