Below are the signals on the Auxiliary Feedback ports when set up to run as buffered emulated
outputs of the following main encoders(on FEEDBACK A):
• Interpolated Analog Encoder
• Resolver
• Tachometer and Potentiometer
• Absolute Encoder (all types)
Port Pin Signal Function
B1 1 CHA Not in use in this mode
B1 2 CHA- Not in use in this mode
B1 3 CHB Not in use in this mode
B1 4 CHB- Not in use in this mode
B1 5 INDEX Not in use in this mode
B2 6 CHAO Emulated buffered channel A output
B2 7 CHAO- Emulated buffered channel A complement output
PWR 8 +5V Encoder supply voltage
PWR 9 SUPRET Encoder supply voltage return
B1 10 INDEX- Not in use in this mode
B2 11 CHBO Emulated buffered channel B output
B2 12 CHBO- Emulated buffered channel B complement output
B2 13 INDEXO Emulated buffered Index output
B2 14 INDEXO- Emulated buffered Index complement output
PWR 15 SUPRET Supply return

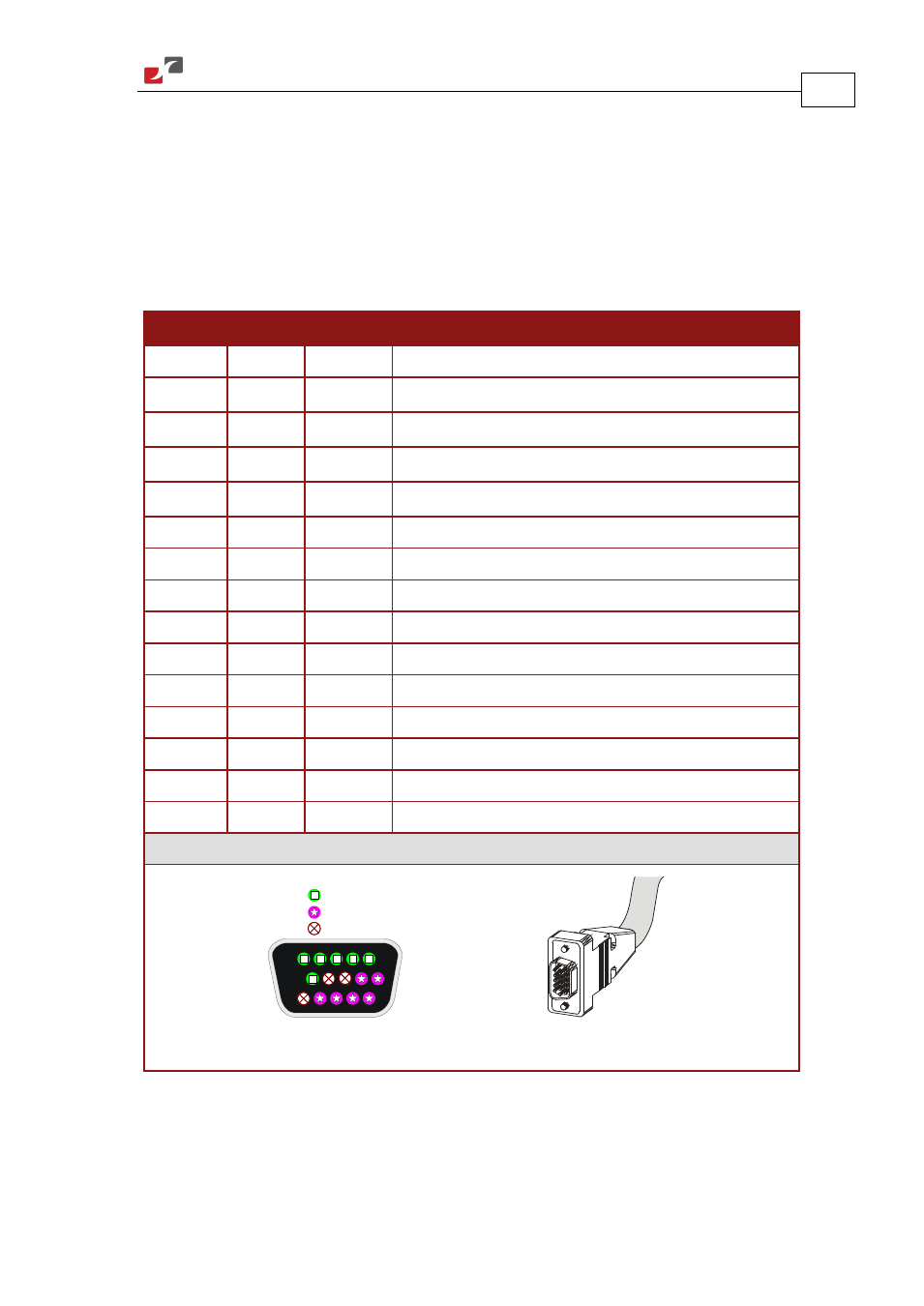

Pin Positions
5
15
10
1
11
6
Port B1
Port B2
Power
15-Pin High Density D-Sub Socket 15-Pin High Density D-Sub Plug
Table 7: Emulated Encoder Outputs on FEEDBACK B - Pin Assignments
