6.13. Heat Dissipation
The best way to dissipate heat from the Gold Solo Guitar is to mount it so that its heat-sink faces
up. For best results leave approximately 10 mm of space between the Gold Solo Guitar's heat-sink
and any other assembly.
6.13.1. Gold Solo Guitar Thermal Data
• Heat dissipation capability (θ): Approximately 8 °C/W
• Thermal time constant: Approximately 360 seconds (thermal time constant means that the
Guitar will reach two thirds of its final temperature after 6 minutes)
• Shut-off temperature: 86 °C to 88 °C (measured on the heat-sink)

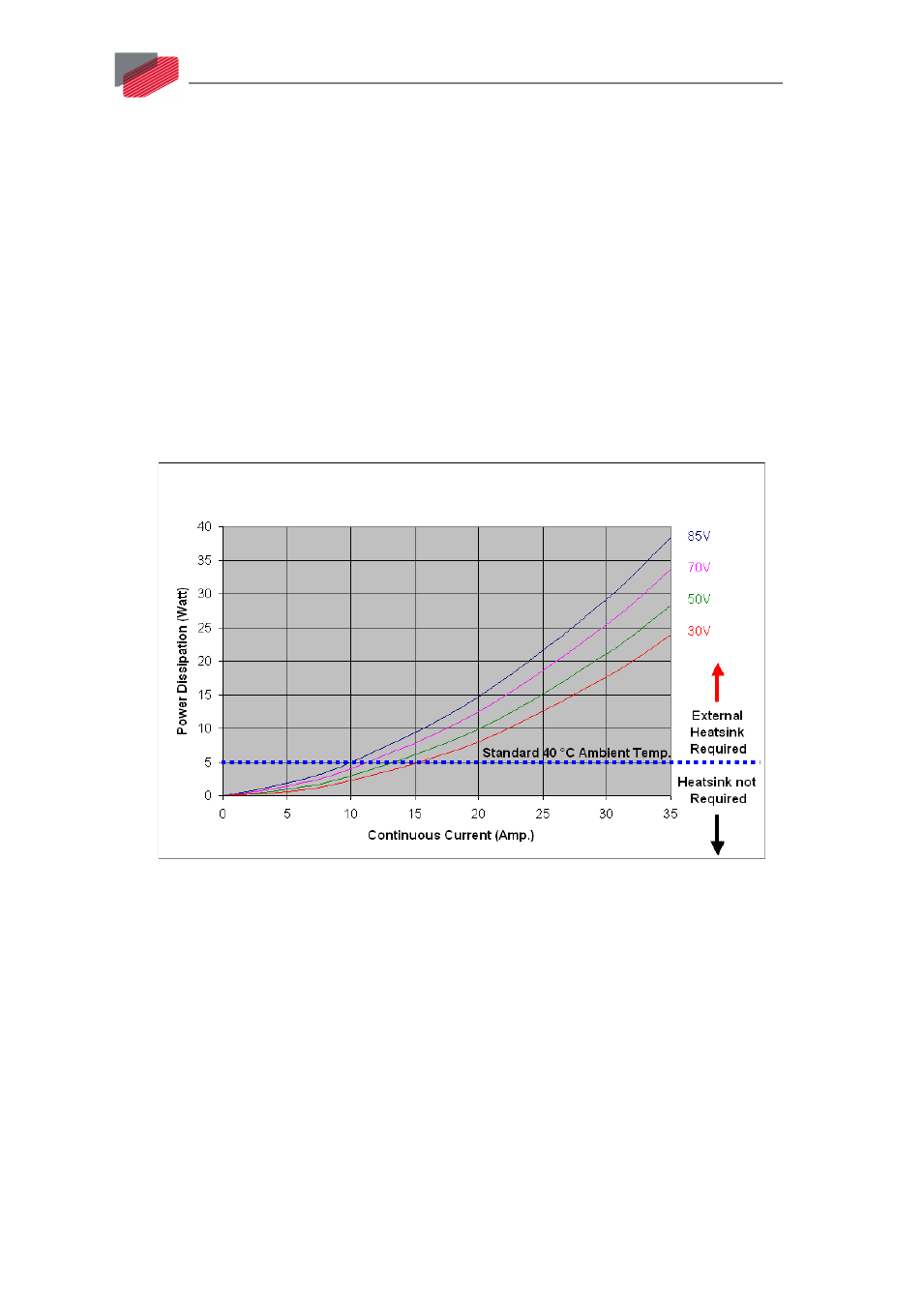

6.13.2. Heat Dissipation Data
Gold Solo Guitar 100 V Power Dissipation
