Power to the Gold Solo Guitar is provided by a 14 to 195 VDC source. A smart control-supply
algorithm enables the Solo Guitar to operate with the power supply only, with no need for an
auxiliary supply.
Connect the DC power cable to the VP+ and PR terminals on the Main Power Connector.
To connect the DC power supply:
1. The source of the 14 to 195 VDC power supply must be isolated.
2. For best immunity, it is highly recommended to use twisted and shielded cables for the DC
power supply. A 3-wire shielded cable should be used. The gauge is determined by the actual
current consumption of the motor.
3. Connect the cable shield to the closest ground connection near the power supply.
4. Connect the PE to the closest ground connection near the power supply.
5. Connect the PR to the closest ground connection near the power supply.
6. Before applying power, first verify the polarity of the connection.

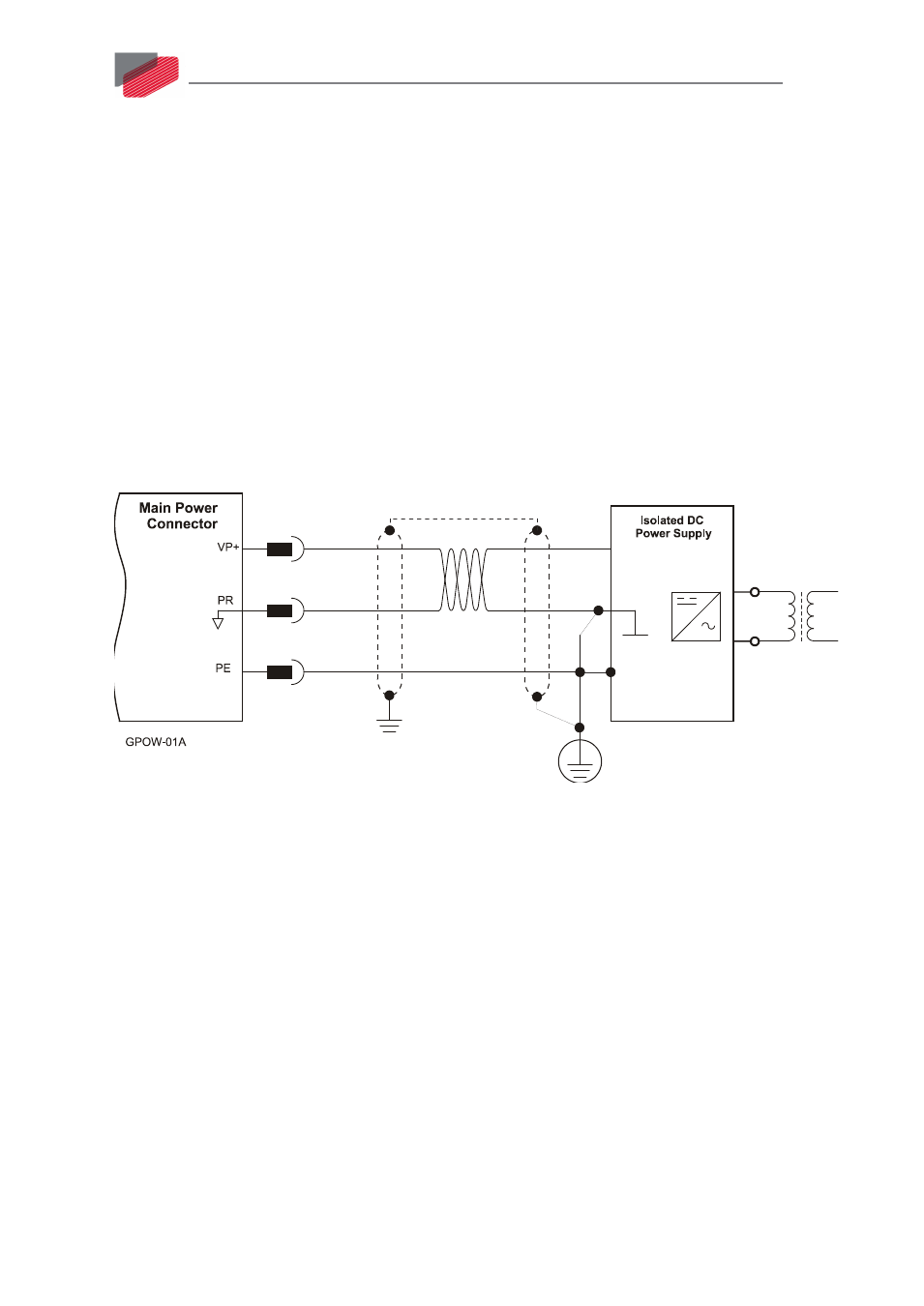

Figure 14: Main Power Supply Connection Diagram (no Auxiliary Supply)
