Gold Solo Guitar Installation Guide
MAN-G-SOLGUTIG-EC (Ver. 1.100)
|Main Power, Auxiliary Power| www.elmomc.com
28
Table of Contents

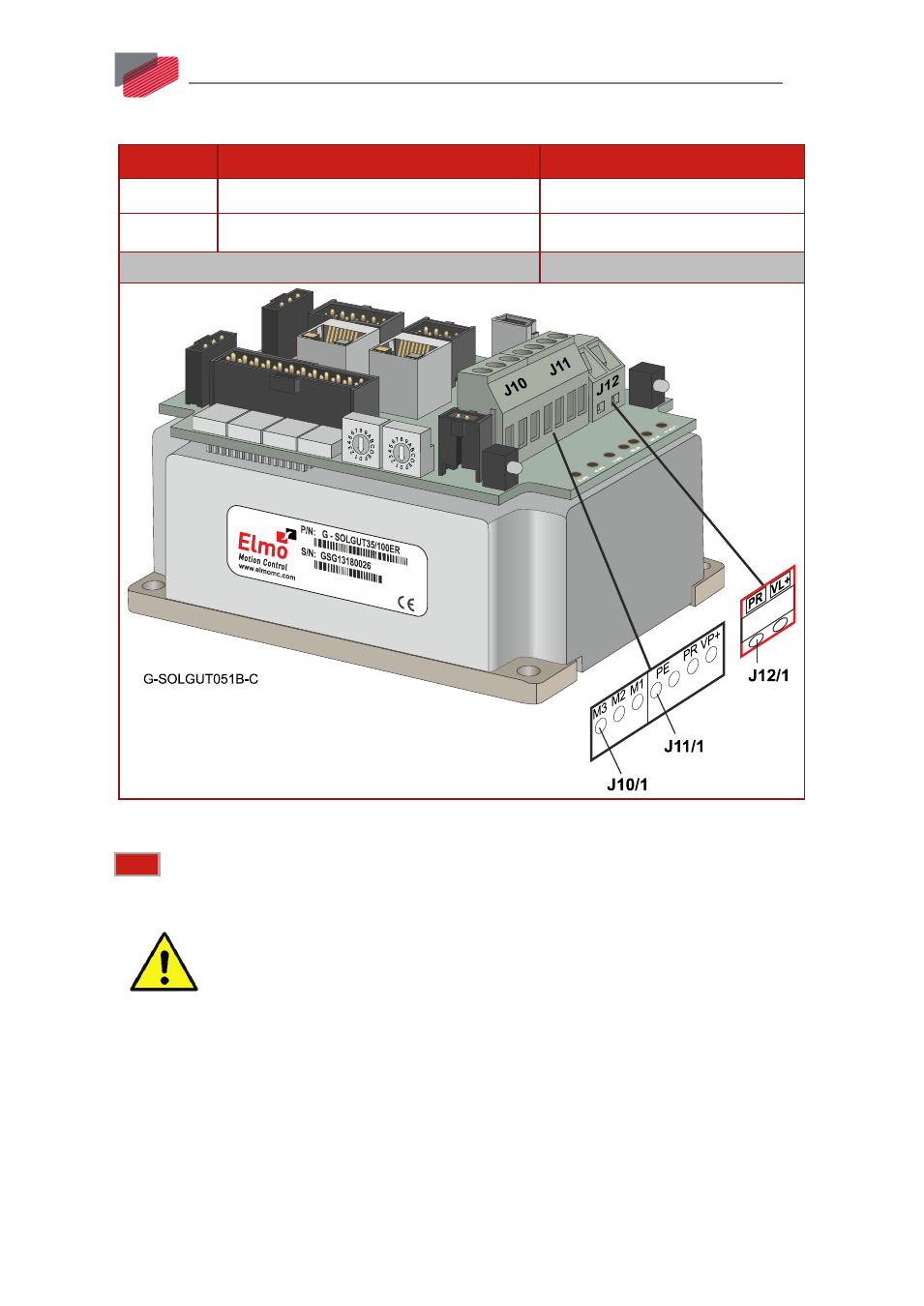

6.3.2. Auxiliary Power Supply (J12) - (Optional)
Pin Signal Function
J12/1 PR Auxiliary Supply Return
J12/2 VL+ Auxiliary Supply Input
Pin Positions Cable Connector
Table 5: Auxiliary Supply Pins
Note: The source of the Auxiliary Supply must be isolated.
Connect the VL+ and PR pins on the Gold Solo Guitar in the manner described on page 29.
Caution: Power from the Gold Solo Guitar to the motor must come from the
Main Supply and not from the Auxiliary Supply.
Power to the Auxiliary Supply can be provided by a separate Auxiliary Supply.
