To connect the auxiliary supply:
1. The source of the auxiliary supply must be isolated.
2. For safety reasons, connect the return (common) of the auxiliary supply source to the closest
ground near the auxiliary supply source.
3. Connect the cable shield to the closest ground near the auxiliary supply source.
4. Before applying power, first verify the polarity of the connection.

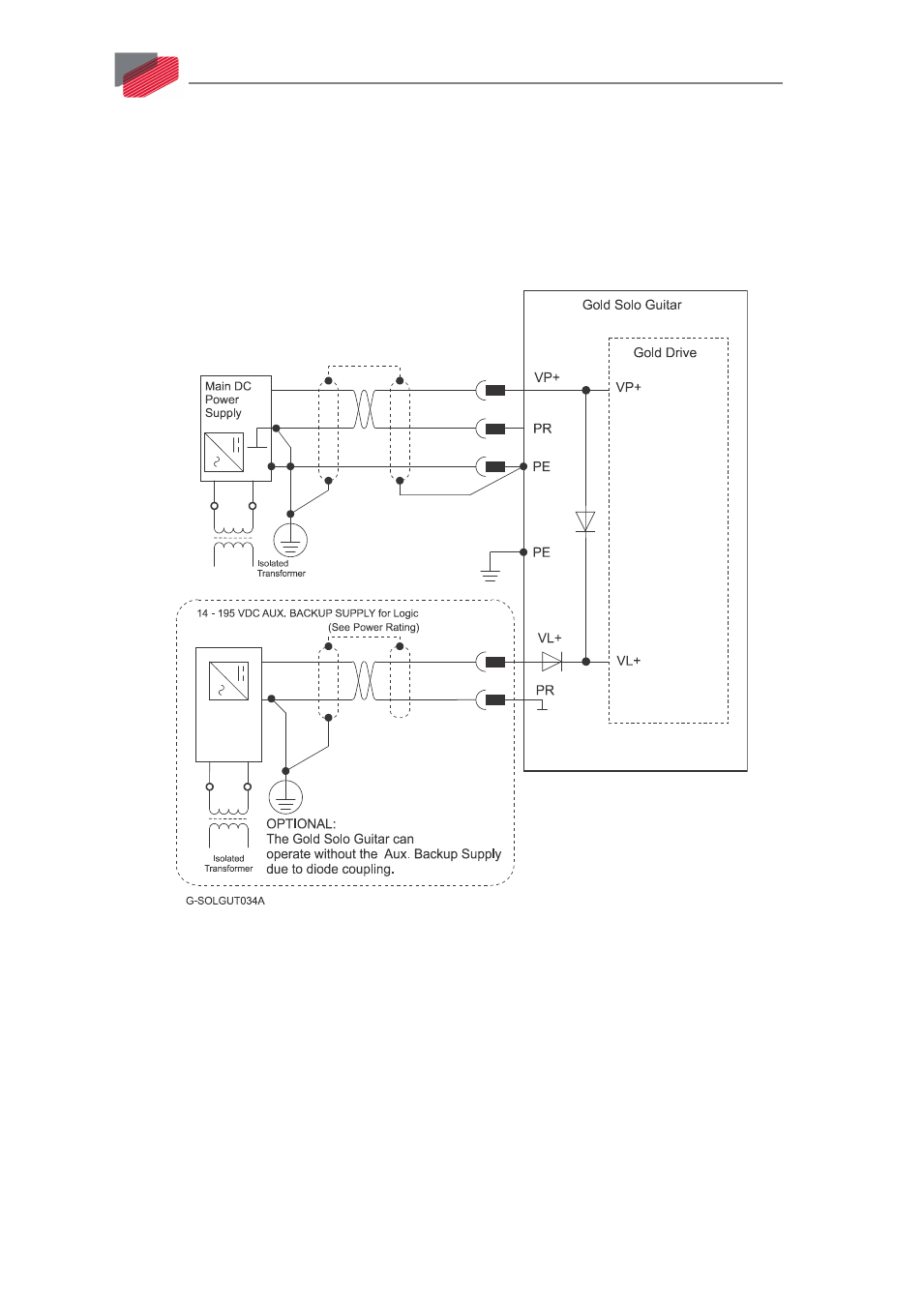

Figure 15: Separate Auxiliary Supply Connection Diagram
