6.8.1.3. STO Output (J6)
There are two available options:
• I/O and STO type without STO
• I/O and STO type with STO
If the STO STATUS OUT is configured, then IN6 and OUT4 pins of the J6 connector will not be
available. Refer to Figure 35 below for details of the connections. Refer to Chapter 9 in the in the
MAN-G-Panel Mounted Drives Hardware manual for full details.

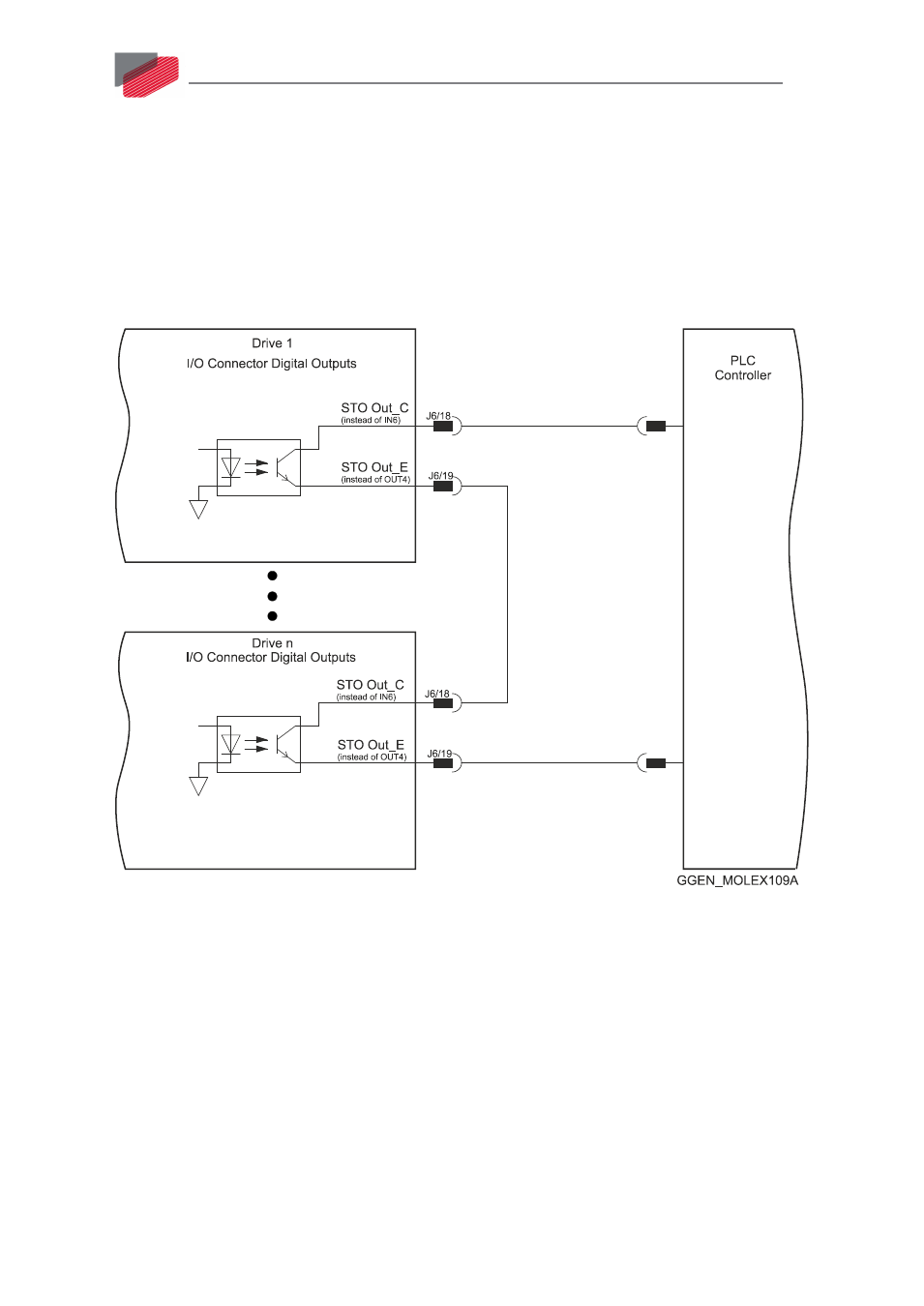

Figure 35: STO Output
