2. Controls and Indicators
(UBEC1, UBEC2, UBEC3, UICS2)
All controls and indicators are located on the front of the control and display module.
Refer to Figure 41 .
Valve Position Indicator
When the valve is fully closed the red closed LED will be on. The ten green LEDs indicate the valve position as
it moves from closed to fully open.
Valve Control Buttons
Three buttons control the valve motor to open and close the valve. The preset button will set the valve to a
programmed position.
Pressure Display (UBEC2, UBEC3, and UICS2)
This 4-digit LED display will indicate pressure in PSI, kPa, or Bar. The display is also used when accessing
program features. See the Programming section for more information. Pages 53-62.
Flow Display (UBEC3)
This 4-digit LED display will indicate flow rate in GPM or LPM. The display is also used when accessing
program features. See the Programming section for more information. Pages 53-62.
CAF SELECT Button (UICS2)
This button selects the operating mode and moves the valve to a pre programmed position.
CAF ON Button and LED (UICS2)
This button activates/deactivates the compressed air and allows the operating mode with pre programmed
valve positions to be selected.
UBEC1 UBEC2
Valve
Closed LED
Valve Control
Buttons
Pressure
Display
Valve Position
Indicator
UBEC3
Flow Display

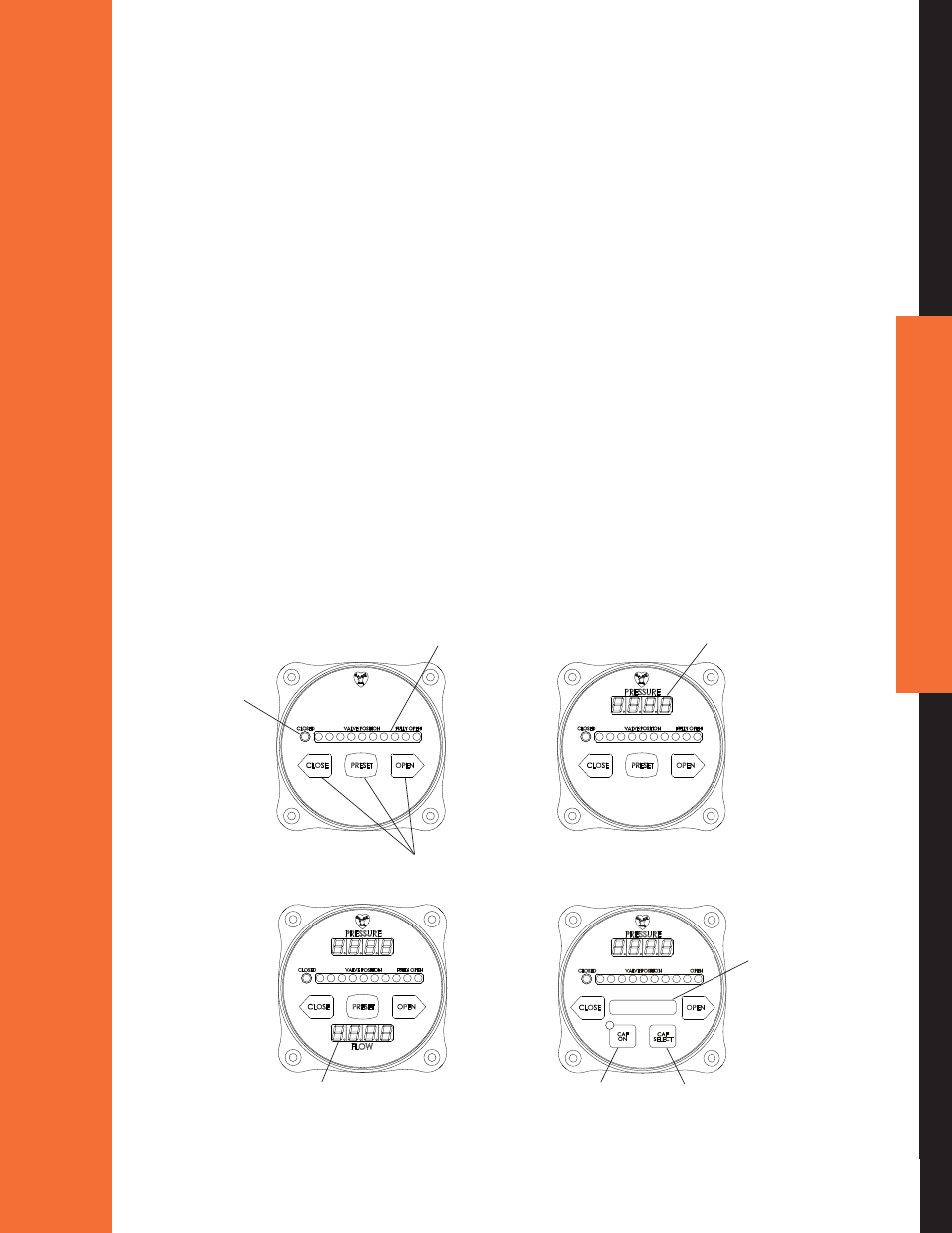

Figure 41. Controls and Indicators
UICS2
CAF ON Button
and LED
Message
Display
CAF SELECT
Button
