13
800.346.0250 • www.elkhartbrass.com
2. Installation of Actuators to Valve Body
A) Remote, Direct Handle, or Twist Lock Actuator

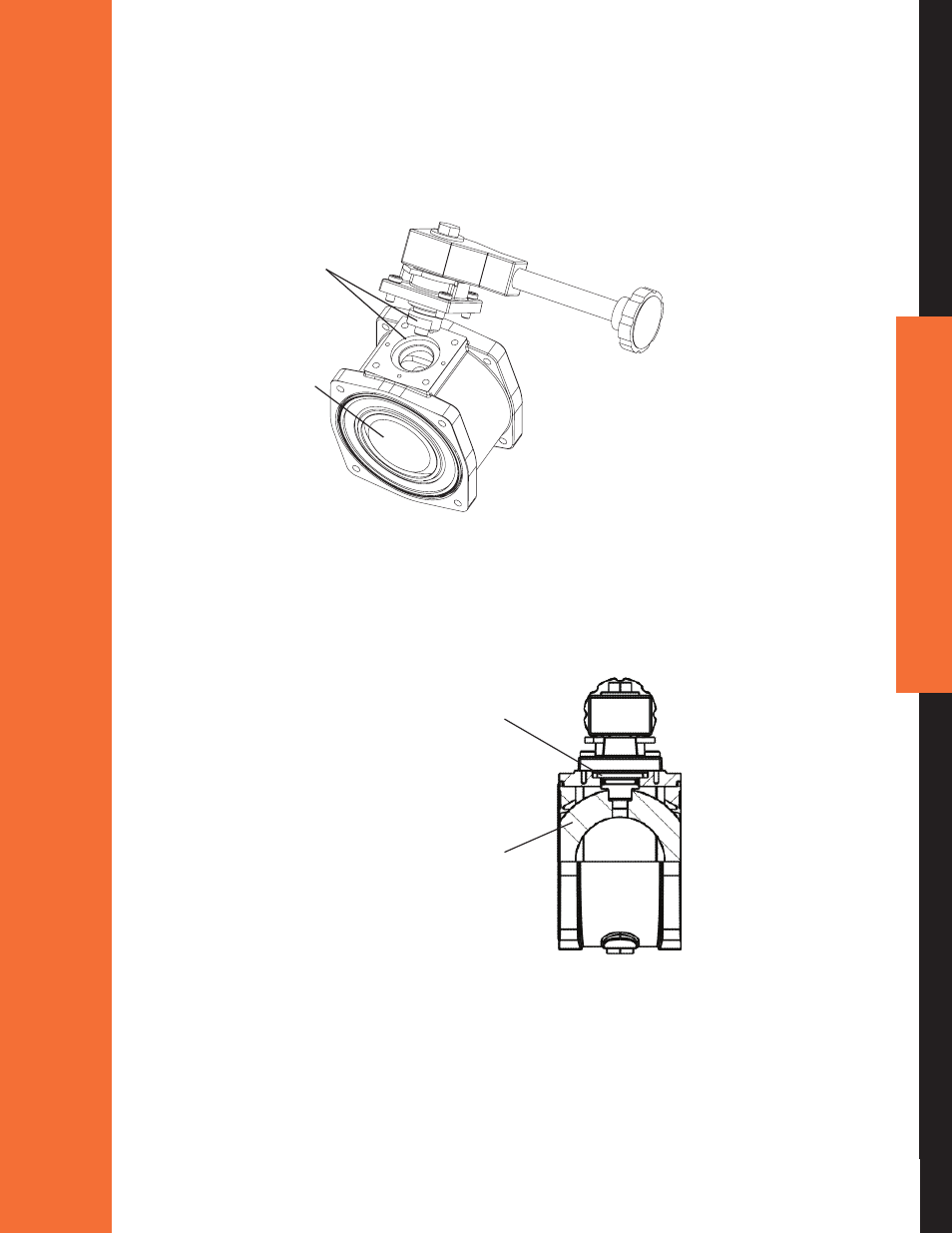

1. Hold the actuator assembly above valve body assembly and align the actuator shaft
with the slot in the ball as shown. See page 18 Handle Position if the handle requires
new orientation.
Figure 3
2. Push the actuator assembly down against valve body assembly and rotate the handle
assembly in both directions slightly while pushing assembly against valve body until
actuator drops into slot in valve ball as shown in Figure 4. There should be no gap
between the actuator assembly and the valve body.
Figure 4
No gap between
actuator assembly
and valve body
Ball in closed
position
Ball in closed
position
Actuator shaft
and slot in
ball align
