Elkhart Brass Unibody Valve User Manual
Page 21
21
800.346.0250 • www.elkhartbrass.com

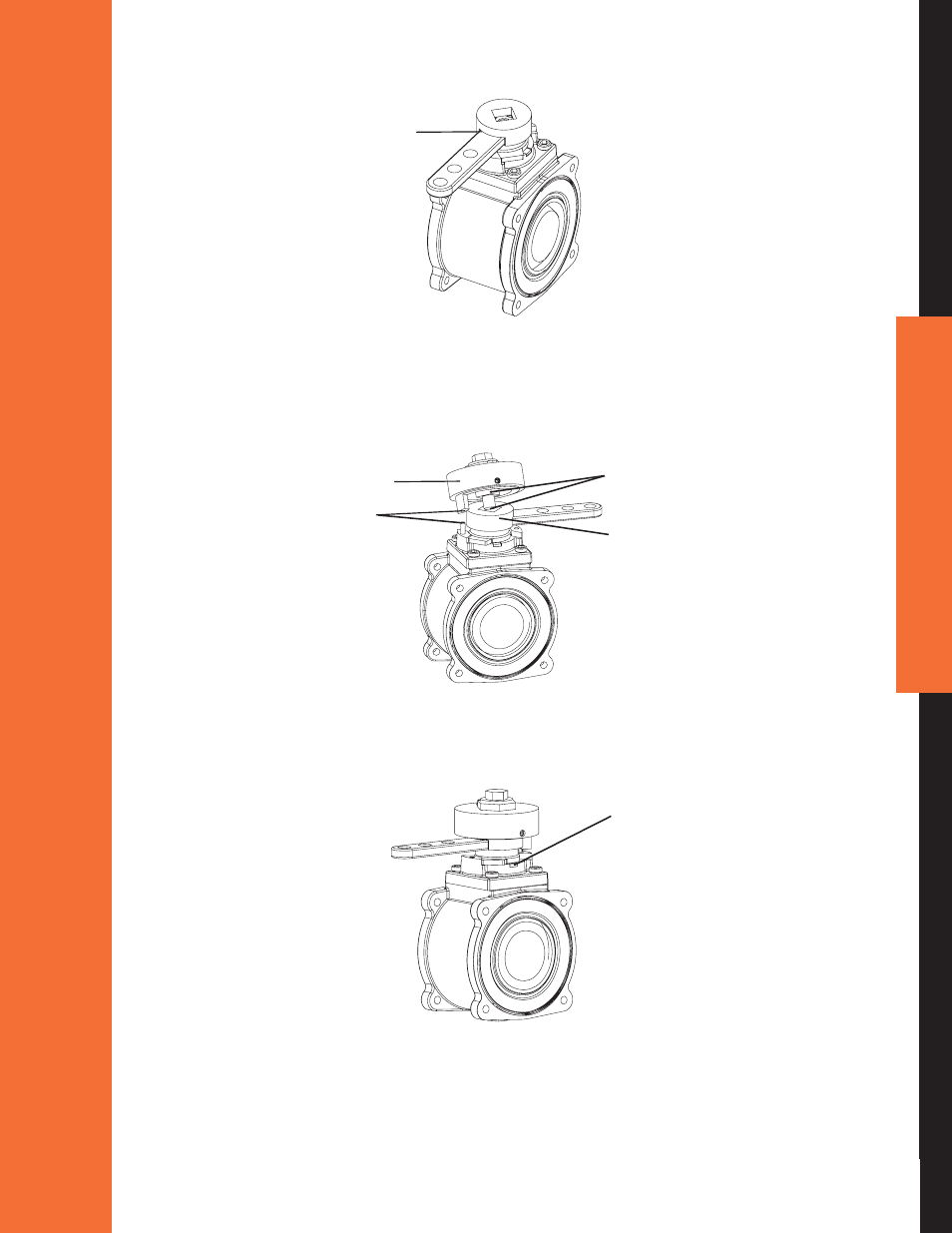

5. Place the handle coupler over the handle with the handle filling the slot.
Figure 22
6. Place the slow close onto the handle coupler. Ensure that the slow close shaft is properly
engaged with the handle coupler. Place entire assembly onto actuator shaft considering
proper handle and drive pin alignment.
Figure 23
7. Attached washer and new 2" long 1/2" bolt. While tightening bolt, ensure that the bearing
break tabs line up with slots in adapter plate as shown.
Figure 24
Slot
Slow Close
Pin Alignment
Shaft Alignment
Bearing break tab
drops into slot on
adapter plate
Handle Coupler
