Handle position – Elkhart Brass Unibody Valve User Manual
Page 18
18
ELKHART BRASS MANUFACTURING COMPANY, INC
7. On G1F, E3F and E4F assemblies, reattach the gear case cover to the gear case by
replacing the four screws that were removed in Step 1.
8. On E1F (electric) assemblies only, the gear case cover should be re-attached to the gear
case with the sensor shaft engaged into the gear sector. Accomplish this by aligning the
sensor shaft with the gear sector hole nearest the worm gear as shown below.

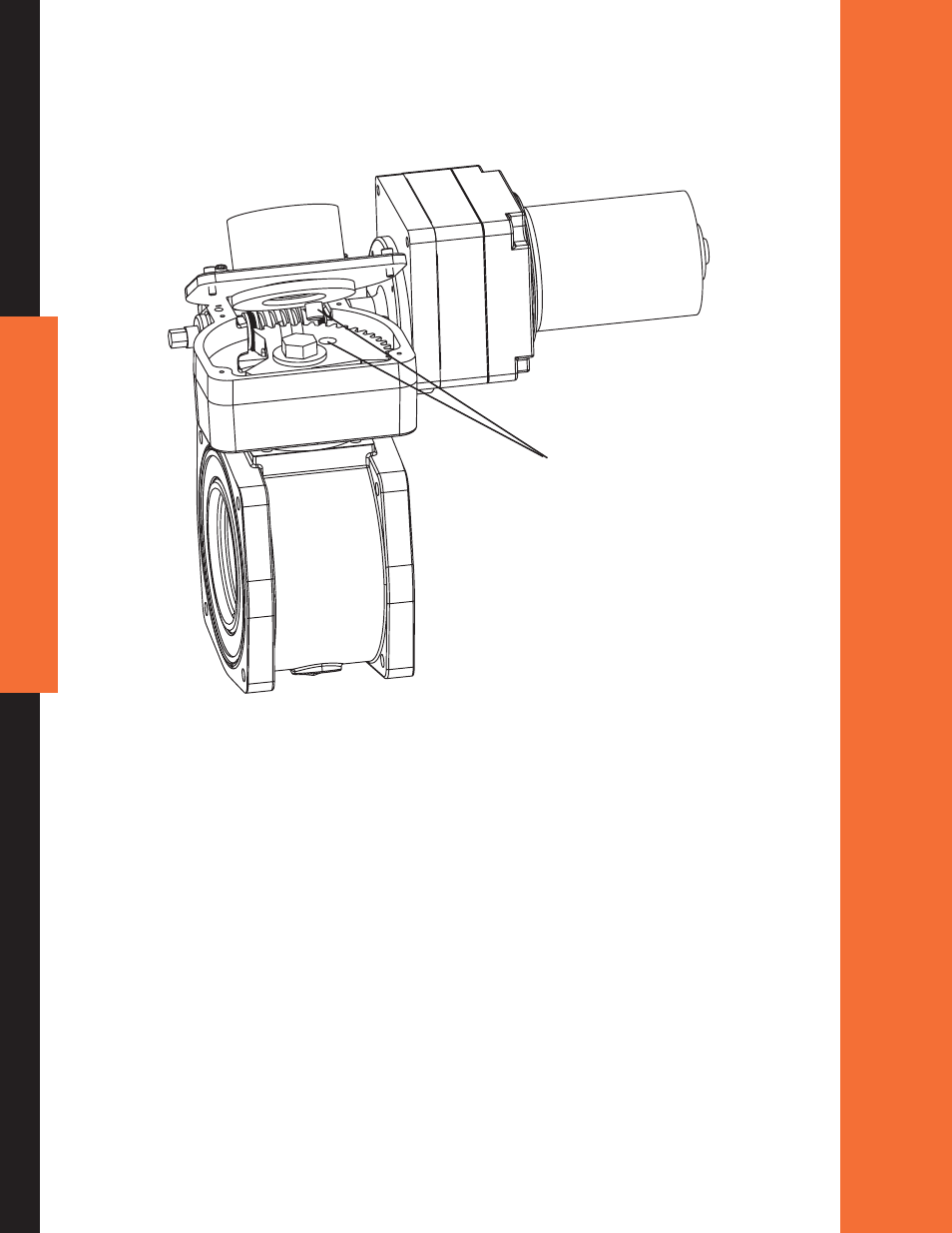

Figure 15
9. Push the gear case cover on to the gear case so that the sensor actuator engages in
the hole on the gear sector, then rotate the gear case cover on the gear case so that
the holes in the gear case cover line up with the tapped holes in the gear case. Next,
re-attach the screws that were removed in Step 1.
3. Handle Position
The twist lock, remote, and direct handle actuators may easily have the handles repositioned in
45° increments. The following details the handle reposition procedure.
Sensor shaft aligns
with gear sector
