Elkhart Brass Unibody Valve User Manual

Page 37

background image

37

800.346.0250 • www.elkhartbrass.com

INDEX

PART #

DESCRIPTION

QTY

1

64103000

#8-32 X 1/2" SHCS

4

2

71609000

#8 WASHER

4

3

81596001

CNTL COVER ASSY.

1

4

81699001

BOLT MAGNET ASSY.

1

5

71060000

WASHER FLAT

1

6

33610001

GEAR SECTOR

1

7

51224000

ROLL PIN

1

8

71249001

WORM GEAR

1

9

71522000

WASHER THRUST

4

10

15698000

THRUST BEARING

2

11

71521000 THRUST WASHER BRASS 1

12

23593001

GEAR CASE (E4F)

1

12

23597001

GEAR CASE (E6F)

1

13

17608000

WASHER ACTUATOR

1

14

65326001 ACTUATOR SHAFT GEAR 1

15

57344000

O-RING

1

16

46094000

MOTOR

1

17

11943001

MOTOR ADAPTER

1

18

65370000

SHAFT MOTOR

1

19

32134000

GREASE FITTING

1

20

63789000

#10-24 X 5/8” SCHS

8

21

44565000

LABEL

1

E4F (Electric)

E6F (Electric)

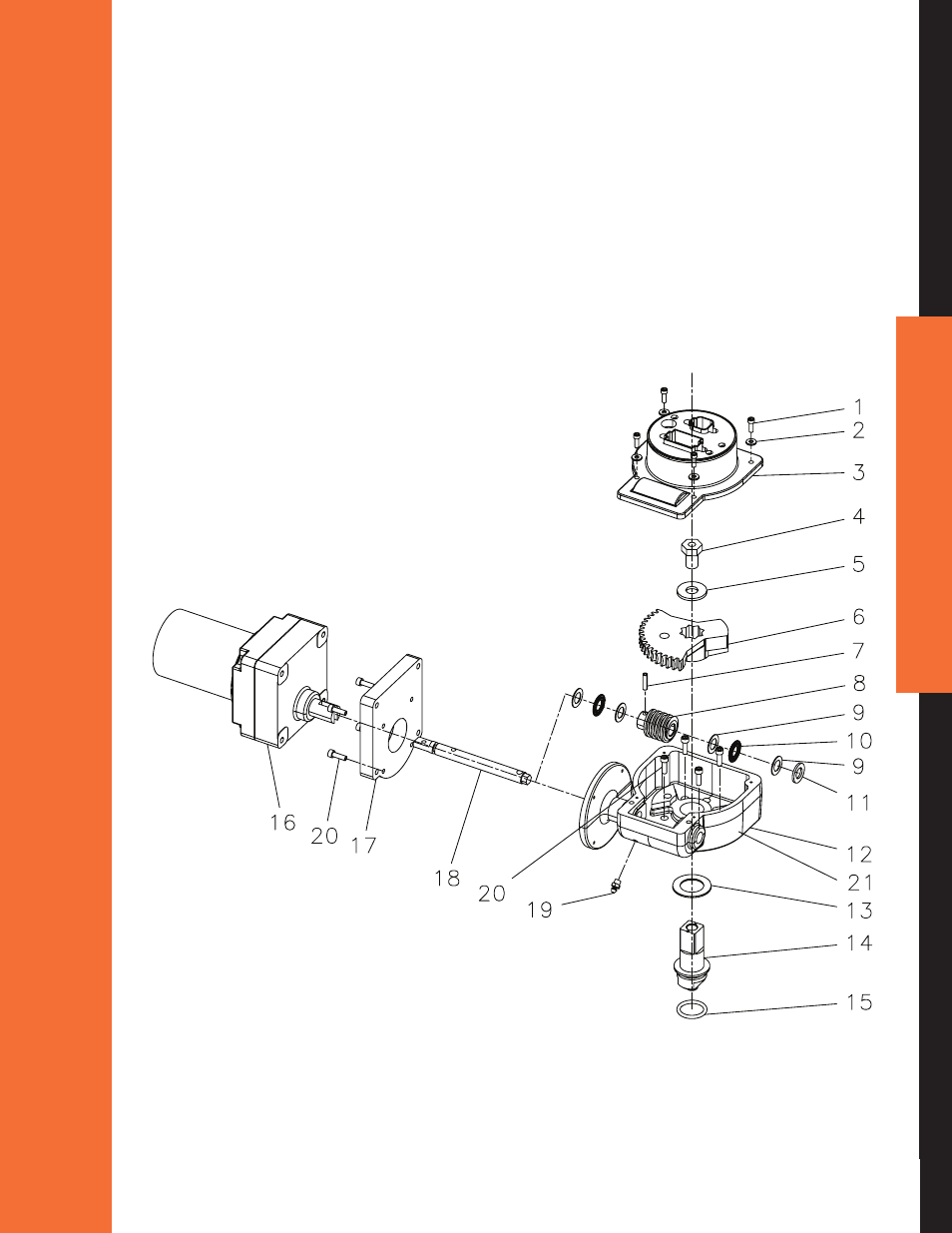

Figure 39
