6
CONTROL

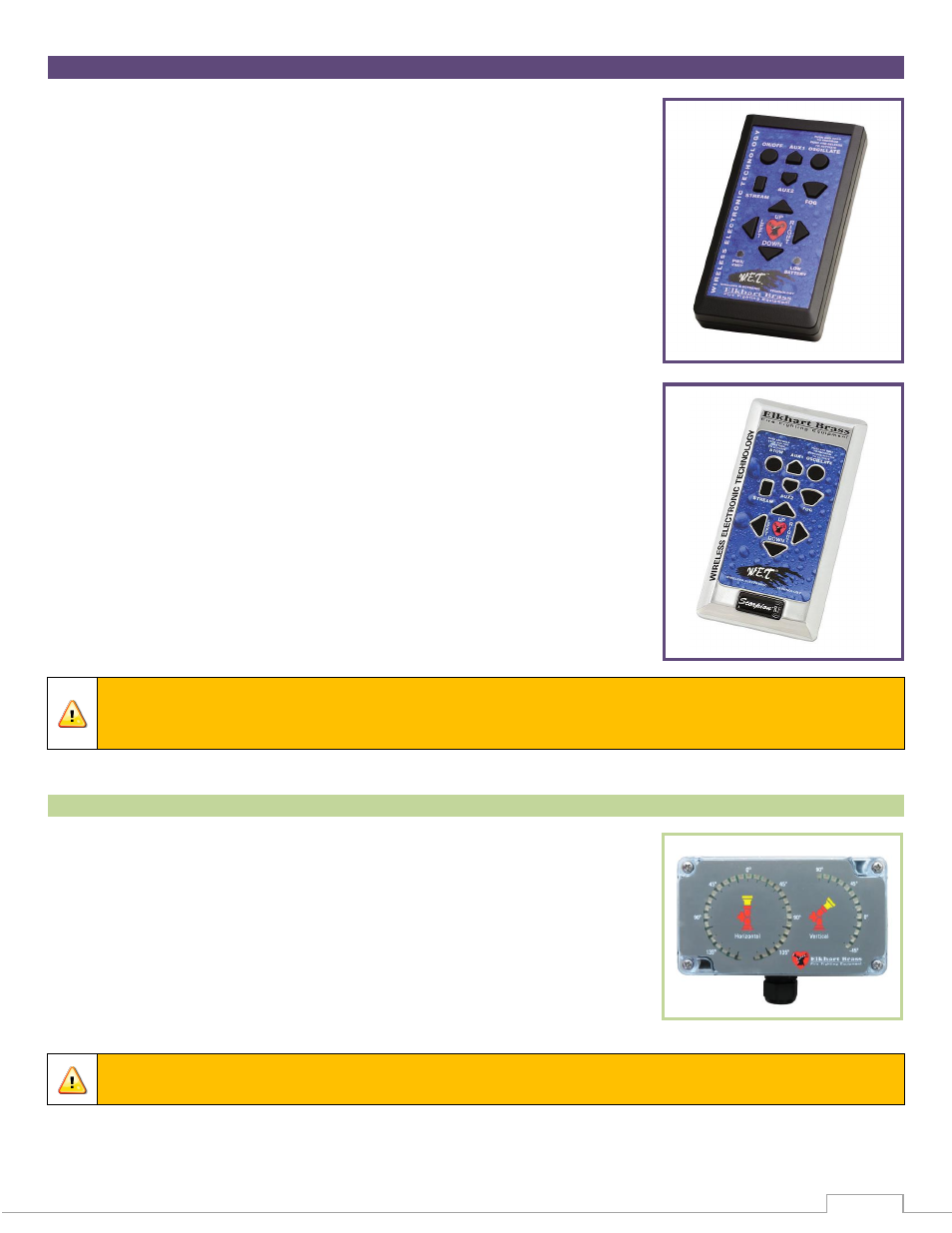

Handheld RF Controller
– 81282001
A sealed handheld RF transmitter contains all the controls necessary for
operation of the monitor. The handheld remote allows the operator to
direct the monitor from a significantly improved point of view. With the
wireless remote, the operator can view the stream from the side and
confirm that the stream is hitting its target. Separate push button
switches are provided for up, down, left, right, fog, and stream
functions. The handheld remote has user selectable frequency and
security codes that allow multiple monitors to operate on the same fire
ground at the same time. The remote has an automatic power down
feature that will shut down the power after 5 minutes of no activity. As
an additional power saving feature the radio signal is only transmitted
while a button is pushed. The handheld remote case has a NEMA 4
rating.
Primary Panel Mount RF Controller – 81327101
The fixed RF transmitter sends signals to the monitor via an encoded
radio signal, requiring no wires between the RF transmitter and the
monitor. It is powered by a 12V or 24V vehicle electrical system. The
faceplate is intended for a flush mount onto the pump or aerial ladder
control panel. Separate sealed push button switches are provided for
up, down, left, right, fog, and stream functions. This fixed RF transmitter
provides two-button access to the Stow feature. It will override any low-
priority controls, allowing the apparatus operator to retain ultimate
control over the monitor.
Caution:
Any modification of the Handheld Controller or Panel Mount enclosures will
destroy the NEMA 4 rating to that piece of equipment and will void the warranty
coverage.
MONITOR ACCESSORY
Position Feedback Display – 81584000
The Scorpion RF monitor comes with serial Position Feedback sensors.
These sensors provide feedback to the monitors’ processor even when
the monitor is moved via manual override. This information is then
transmitted to the Position Feedback Display.
Caution:
Any modification of the enclosure of the Position Feedback Display will
destroy the NEMA 4 rating, and will void the warranty coverage.
