Page 12
12
Installation Step 4: System Programming
Programming Travel Limits & Stow Position
The 8294-07 Scorpion RF LED with position display can be rotated 90° left or 90° right of straight
ahead. Stops are mechanically fixed by a stop screw and milled slot in base. Stop screws must remain
in place in monitor base.
Programming limits and stow position are completed during the same sequence of steps; not
independently. This is a unique programming feature specific to the 8294-07 with position display.
Move the monitor to the lower left position of the travel window with either the primary
controller, or a secondary controller.
Press and release the red programming switch (SW1). The setup LED DS6 will blink twice.
Move the monitor to the upper right position of the travel window.
Press and release the red programming switch. The setup LED will blink three times.
Move the monitor to the stow position.
Press and release the red programming switch. The setup LED will blink four times.
Programming of travel limits and stow position are now set.

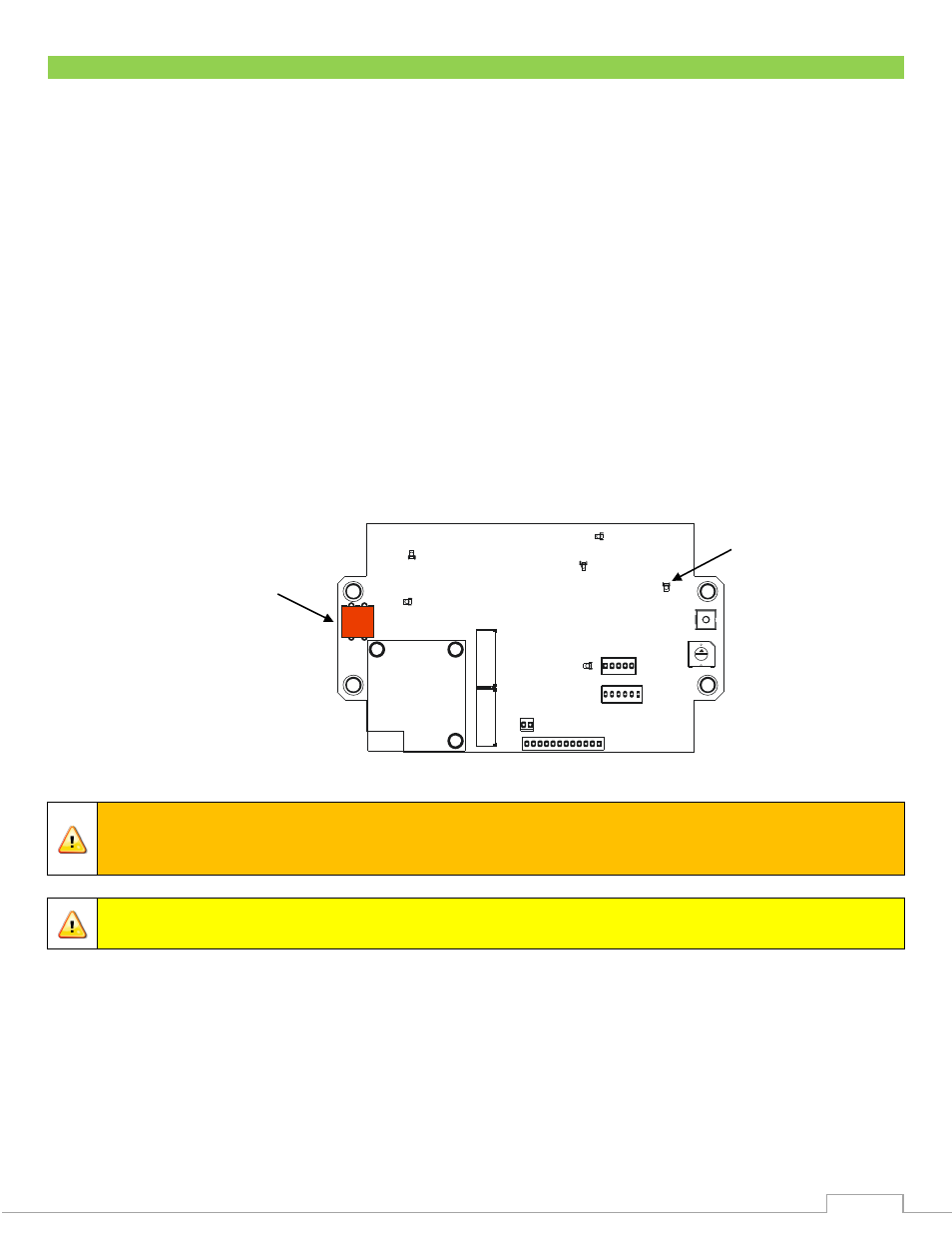

Figure 3: SW1 Programming Button
Caution:
To prevent damage to the monitor controller, keep all metallic objects away
from the receiver circuit board while it is energized. Ensure all O-rings and gaskets are
properly installed when closing receiver enclosure.
Important:
Limits must be programmed prior to use to avoid a collision between the
monitor discharge and the horizontal position sensor.
To clear programmed limits and stow position:
Press the RED program button (SW1). The LED DS6 will blink two (2) times.
Press both FOG and STRAIGHT STREAM simultaneously on either a primary or secondary
controller, and hold for 5 seconds.
Position the monitor to the left lower limit of the travel window. Press the RED program button.
The LED DS6 will blink three (3) times. Again, press the RED program button. The LED DS6 will
blink four (4) times. This clears the previous limits and positions the monitor for the lower left
travel limit.
DS5
DS2
B
A
DS1
SW4
SW1
DS4
P2
DS3
P3
DS6
P1
P4
SW2
SW3
Red Programming
Button (SW1)
DS6
