Page 18

15

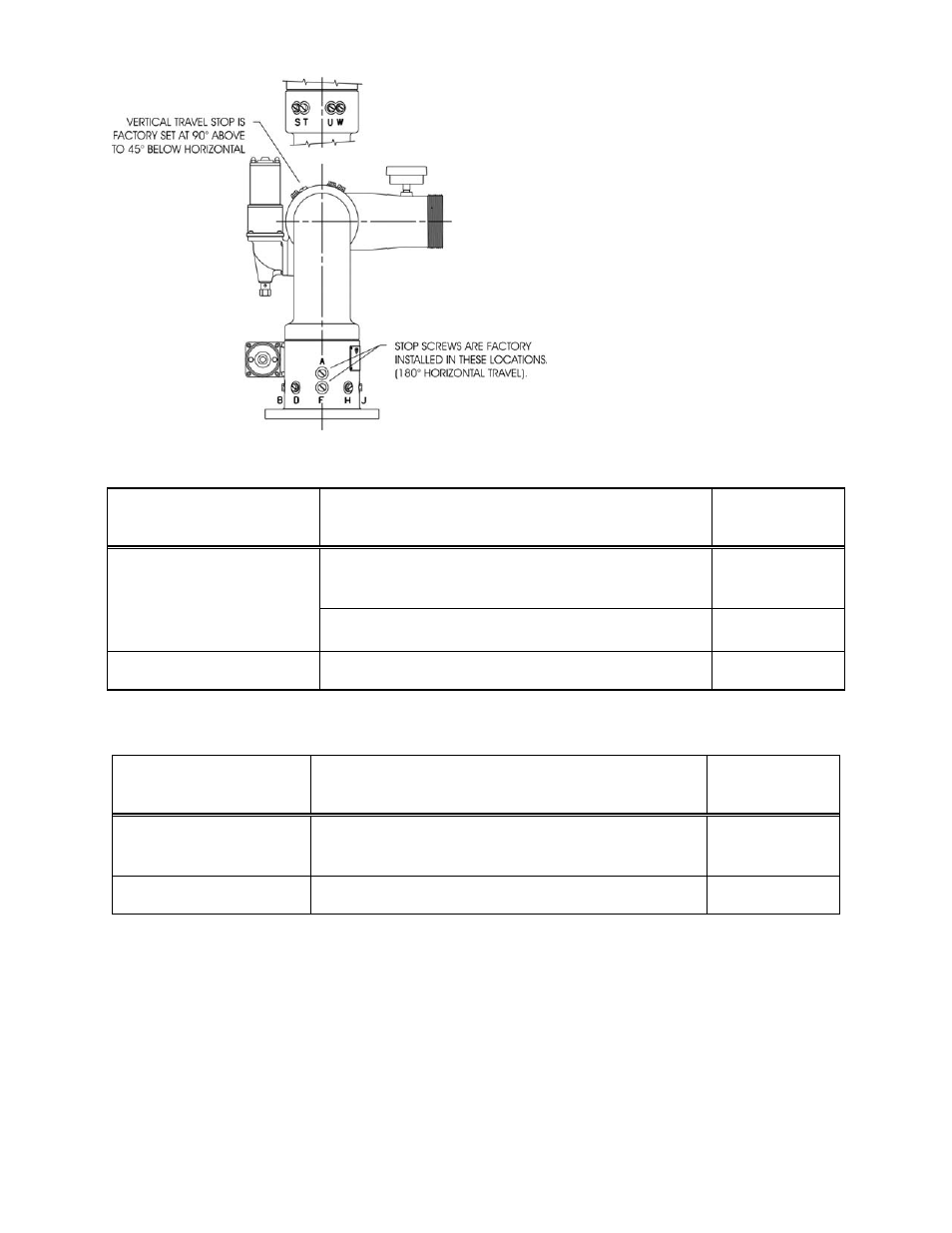

Figure
16
Rotational Limit Settings for 8394-04
Application
Rotation Limits
Stop Screw
Locations
45
°Left or Right of Straight Ahead
D & H
Aerial Ladder, Elevating
Platform, or Water Tower
90
°Left or Right of Straight Ahead
F
Deck Gun
174
°Left or Right of Straight Ahead
A
Table 3
Horizontal Settings for 8394-04
Application
Rotation Limits
Stop Screw
Locations
Aerial Ladder
or Deck Gun
90
° above horizontal to 45° below horizontal
T
Elevating Platform
45
° above horizontal to 45° below horizontal
T & U
Table 4
Vertical Settings for both 8294-04 and 8394-04
*The following paragraphs from NFPA 1901, 2003 Ed, specify minimum angles of rotation for
aerial device monitors:
1. Aerial Ladder Water Delivery System. (NFPA ¶16-6.1.1)
The monitor shall be capable of swiveling at least 135 degrees from a line parallel to
the ladder and down. The monitor shall be capable of horizontal traverse at least 45
degrees from each side of center.
