¾ Strip 5/16" of insulation from the ends of the black and white wires. Crimp insulated
female disconnect type connector (16-14AWG) securely onto each wire. Push
connector of white wire onto positive (+) battery terminal, and push connector of
black wire onto negative (-) battery terminal. Reattach box cover.
C. Rotational Limits
FOR A DESCRIPTION OF ALL
SETTINGS REFER TO DRAWING
39073000.
Visit
www.elkhartbrass.com
Look under “Service & Parts” then
“Operating and Instruction Manuals”

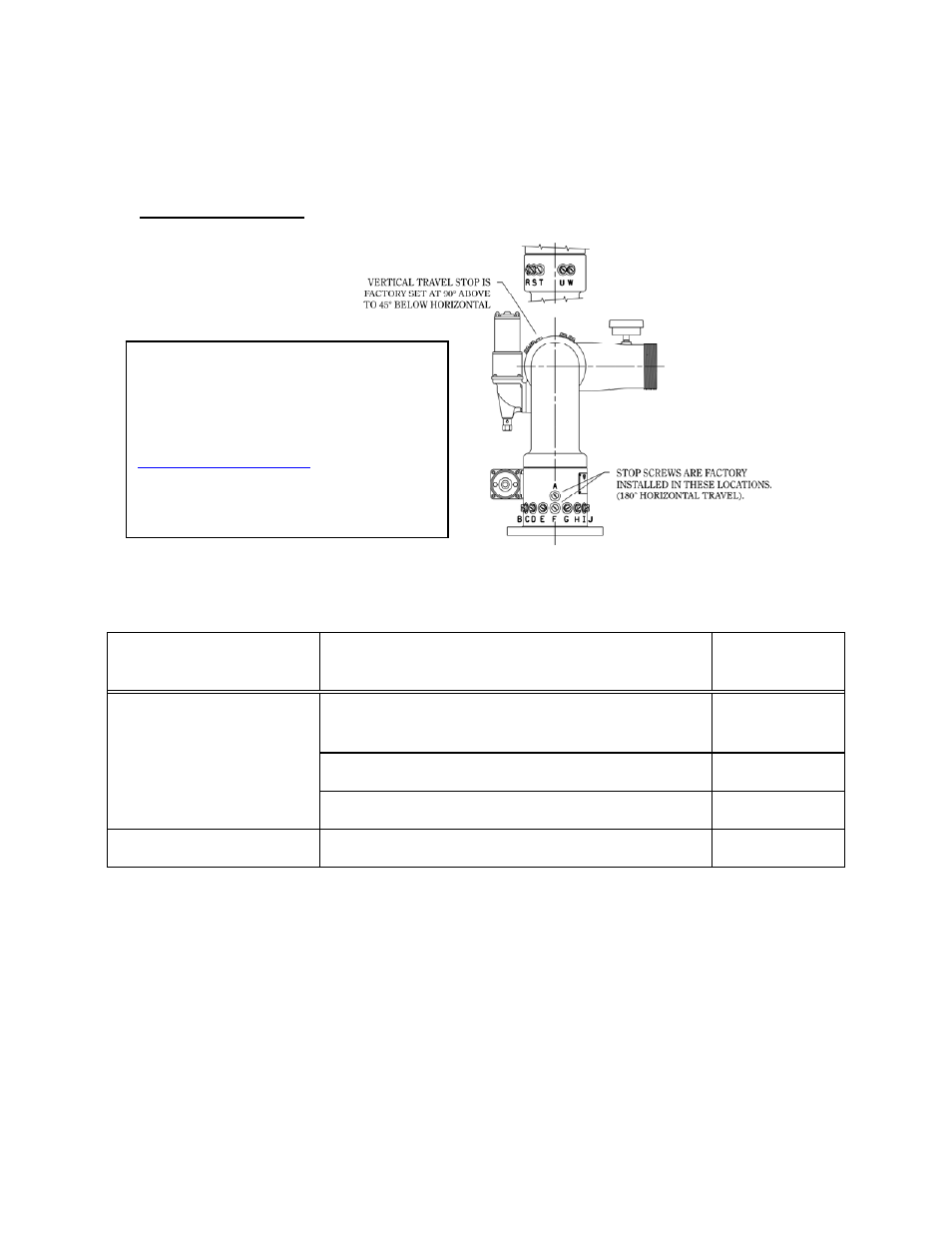

Figure 15
Rotational Limit Settings for 8294-04
Application Rotation Limits
Stop Screw
Locations
45
°Left or Right of Straight Ahead
D & H
67.5
°Left or Right of Straight Ahead
E & G
Aerial Ladder, Elevating
Platform, or Water Tower
90
°Left or Right of Straight Ahead
F
Deck Gun 174
°Left or Right of Straight Ahead
A
Table 2
Horizontal Settings for 8294-04
