16

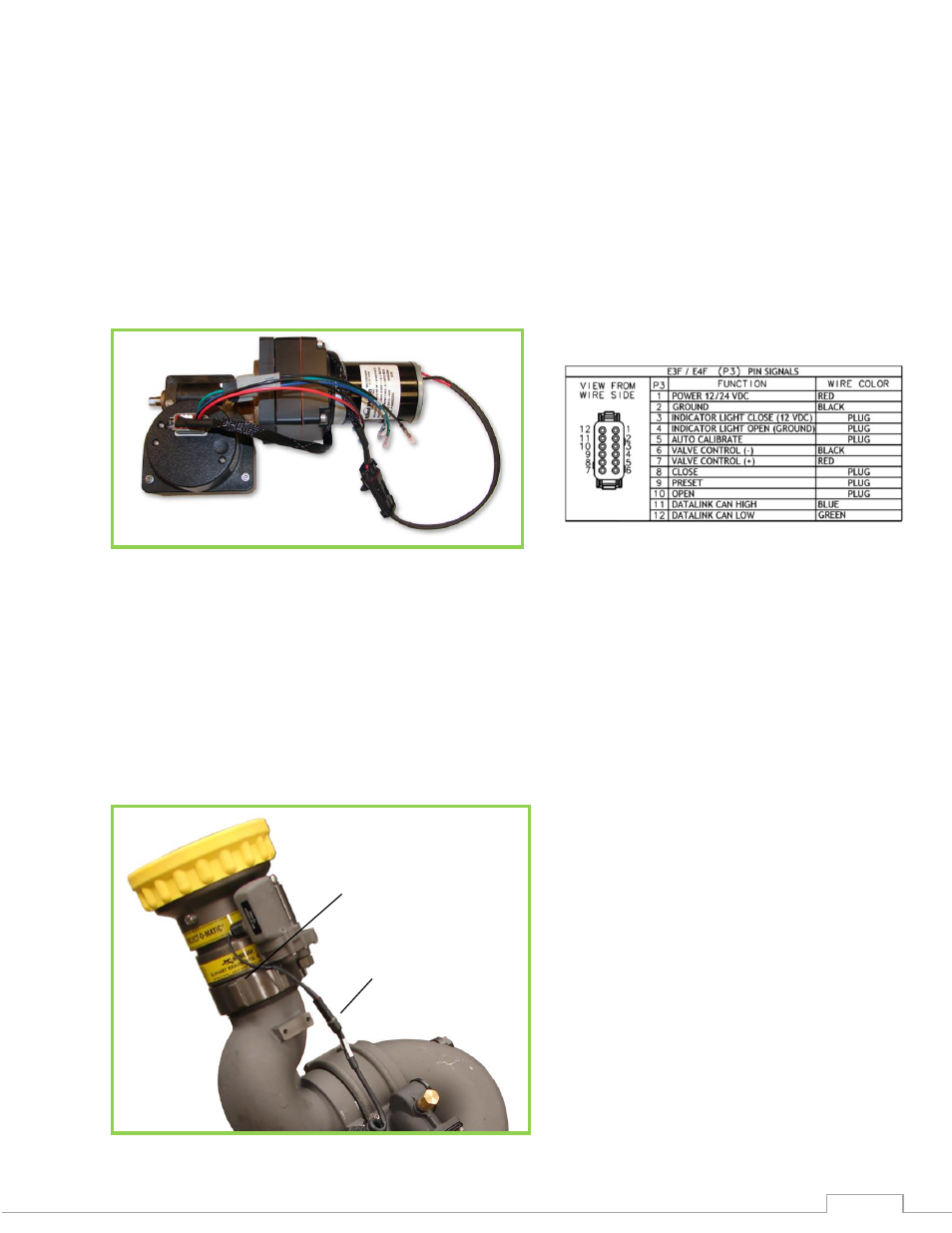

Valve Plug
Actuator
Plug
Valve Plug
Two-Way
Connector
Gasket Location
Electric Actuated Unibody Valve –
 Install the valve into the water supply line.
 Supply power to the valve by connecting the red and black leads coming from the valve plug to
an appropriate power source.
 Using the black, green, and blue leads from the plug, connect the valve to the appropriate CAN
line.
 Supply power to the valve actuator by connecting the actuator plugs.
 Install a 30 Amp fuse to the positive power lead of the valve for a 12V system (15 Amp for 24V
system).
Nozzles –
 Ensure there is a gasket inside the nozzle swivel.
 Hand tighten the nozzle onto the monitor discharge.
 Loosen the swivel to reposition the nozzle as shown (with the electric actuator on top).
 Tighten the nozzle swivel with a spanner wrench.
 Supply power to the nozzle by connecting the monitor and nozzle two-way connectors.
