PRESET 10 ARCHITECTURAL - INSTALLATION
WIRING INFORMATION

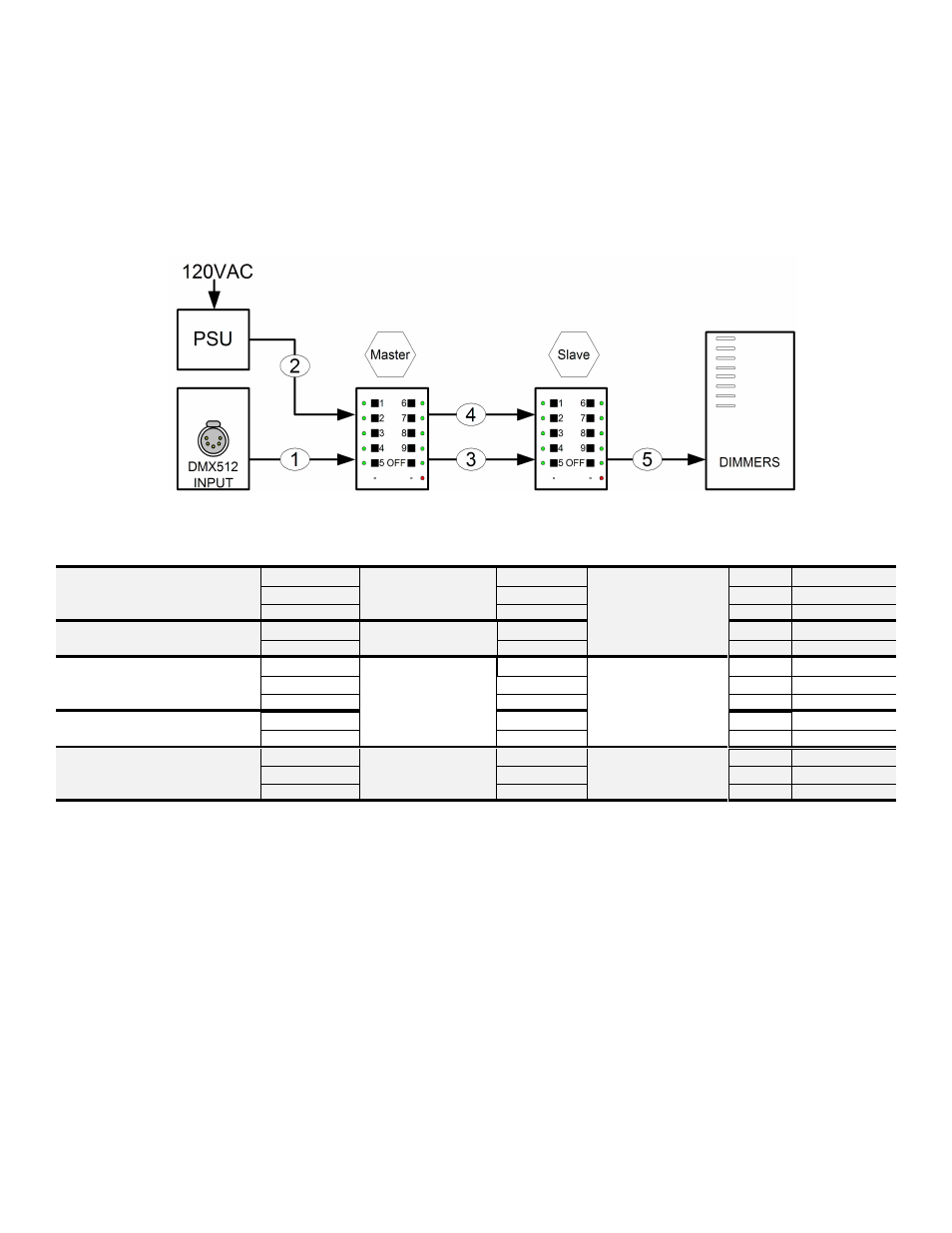

Preset 10 Architectural is designed to use daisy-chain wiring topology. An alternative to the daisy-chain topology is the
star topology. To create a star, a bidirectional isolated splitter (m odel BiDi8) is required. Also note that a system m ay
contain m ultiple power supplies when voltage drop becom es a concern. Please give us a call if you have any questions.
CABLE COLOR FROM TO USE
1
120 Ohm Data Cable
Belden 9829 or
Equivalent Shield
5 Pin XLR Plate
Pin 1
PRE10 Master
TB1-1 Common
White/Blue Pin 2 TB1-2 Data -
Blue/White Pin 3 TB1-3 Data +
2
(2) #16 AWG
Stranded Wires Black
Power Supply
Common TB1-4 Supply
Red Power TB1-5 Supply “hot”
3
120 Ohm Data Cable
Belden 9829 or
Equivalent Shield
PRE10 Master
TB1-1
PRE10 Slave
TB1-1 Common
White/Blue TB1-2 TB1-2 Data -
Blue/White TB1-3 TB1-3 Data +
4
(2) #16 AWG
Stranded Wires Black TB1-4 TB1-4 Supply
Red TB1-5 TB1-5 Supply “hot”
5
120 Ohm Data Cable
Belden 9829 or
Equivalent Shield
PRE10 Slave
TB1-1
Dimmer Cabinet
? Common
White/Blue TB1-2 ? Data -
Blue/White TB1-3 ? Data +
POWER SUPPLY
The voltage provided to the Preset 10 Architectural m ust be between 9 and 15 volts AC or DC, 200m A per station. The Preset
10 Architectural has been designed to operate on a standard class 2 “doorbell” transform er. For exam ple Ace Hardware’s
m odel# ACE36483 10 volt 5 watt transform er.
