SPECIFICATIONS
Connector: Phoenix Contact MSTB series 5 position two part term inal block
Model: MSTB 2,5/5-ST-5,08 Order Num ber: 17 57 04 8
Connector pin out: (V) Supply voltage “hot”
(C) Supply com m on (internally tied to DM X512 com m on)
(+) DMX512 data +
( - ) DMX512 data -
(C) DMX512 com m on
Input/Output Circuit:
ESD protected EIA-485 transceiver (LT1785)
Indicators:
Ten green preset indicator LEDs
One yellow Fade Tim e LED
One red Signal / Record LED
User controls:
Ten preset push buttons
One recessed record push button
One recessed fade tim e push button
Option Jum pers: For a single station installation all jum pers should be installed. (see figure 1, page 5)
INSTALLED REM OVED
JP1 Recording Enabled Recording Disabled
JP2 Master Station Slave Station
JP3 Architectural Mode Portable Mode
JP4 Single Station Mode Multi Station Mode
Power input: 9 to 15 volts AC or DC, 200m A per station
(A 10 volt class 2 “doorbell” transform er is recom m ended for fixed installations)
Color:
Black anodized with silver engraved nom enclature

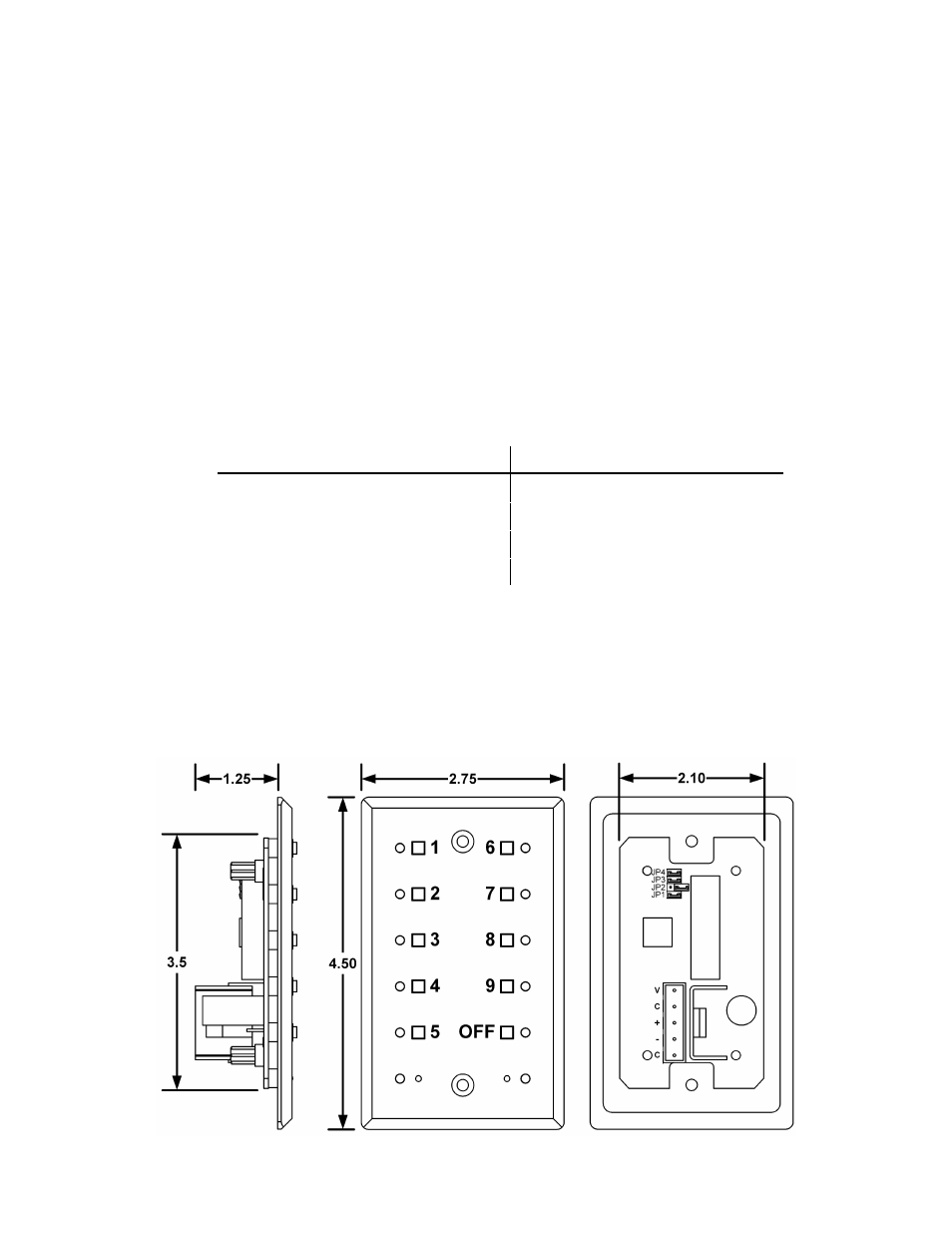

Size :
Faceplate: 4.5"h X 2.75"w X 0.2"d
Faceplate rear inset: 4.05"h X 2.4"w X 0.1"d
Electrical box m inim um inside dim ensions: 3.5"h X 2.1"w X 1.25"d
