Despatch LCC/LCD2-14PT-3 Pass Through Series User Manual
Page 26
16

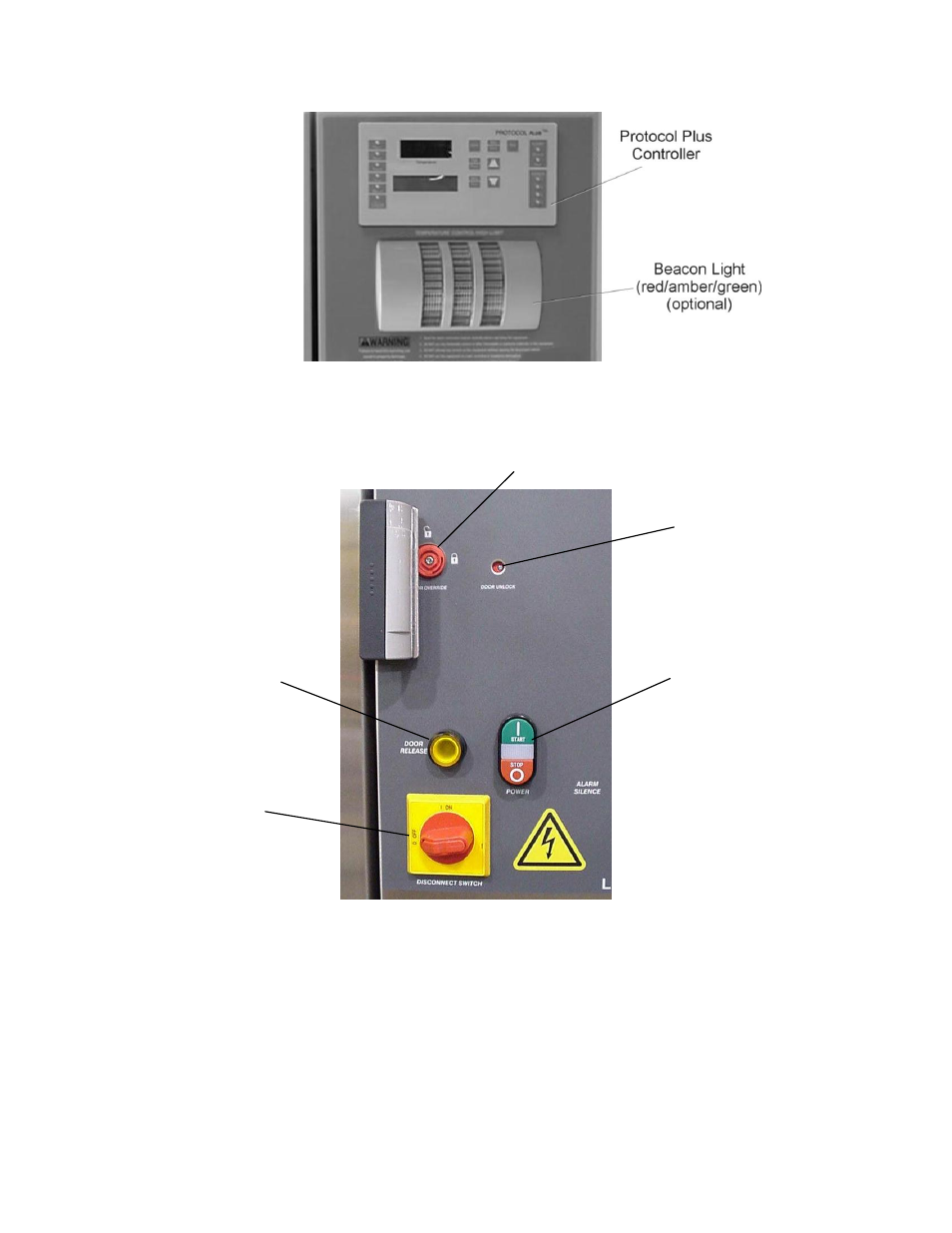

Upper Portion of Control Panel (optional beacon light installed)
Lower Portion of Control Panel (Need New)
Manual Unlock: In the event of power failure, a hollow-point torx tip tool (provided) may
be inserted and rotated 90 degrees counterclockwise to allow the chamber door to
open. It must be turned back to the locked position to allow electrical operation again.
Main Disconnect Switch: This disconnect switch is connected to the load break switch
behind the panel that disconnects or connects power from the main line.
Main
Disconnect
Switch
Door Release
Pushbutton
Power
START/STOP
Switch
Secondary
Chamber Lock
Door Unlock
