8
Wiring
NOTE: The oven must be directly
hardwired to the disconnect switch
on the equipment panel. A one (1)
inch conduit run is provided from the
left side of the lower oven compartment
to the front equipment panel, through which the line voltage power wiring can be
connected to the disconnect switch labeled LINE CONNECTION in the front of panel.
Consult the electrical drawings included with the oven for wiring details. All wiring to be
completed by properly trained and licensed personnel.

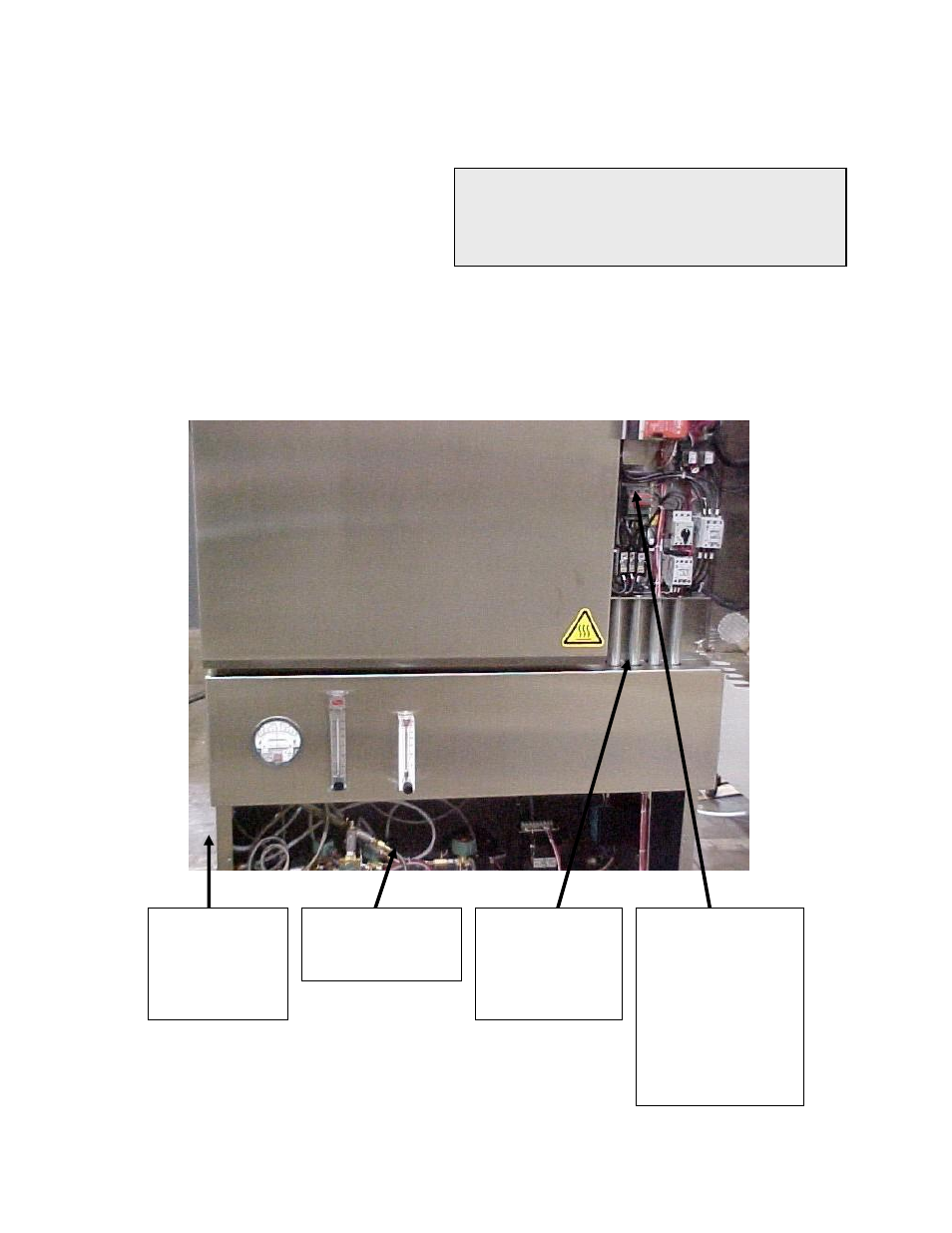

LCC/LCD2-14-3 LINE CONNECTION DESCRIPTION (ALL SERIES)
WARNING:
All grounding and safety equipment must be
in compliance with applicable codes,
ordinances and accepted safe practices.
Power wires are
connected to this
disconnect switch
and ground bus.
Approximately 84”
(2.13 meters) of wire
length is required
from the entrance on
left side of oven to
these connections. Power wires are
routed through
this unused
conduit to main
equipment panel. Power wires are
routed through this
compartment. Hole for conduit
fitting provided
on side of oven
for customer
power.
