A SSEMBLY & S ETUP LBB Series Oven Owner’s Manual
26 Version 18
Model LBB1-23 come equipped with an appropriate plug and cord. Models LBB1-69 and LBB2-
12, -18, -27 must be hardwired to the electric supply using 10 AWG or larger wires suitable for at
least 75 °C (167 °F).
To wire the LBB Series oven
(for units requiring hardwiring):
1.
Remove the top cover for
access to the connector
block (Figure 8).

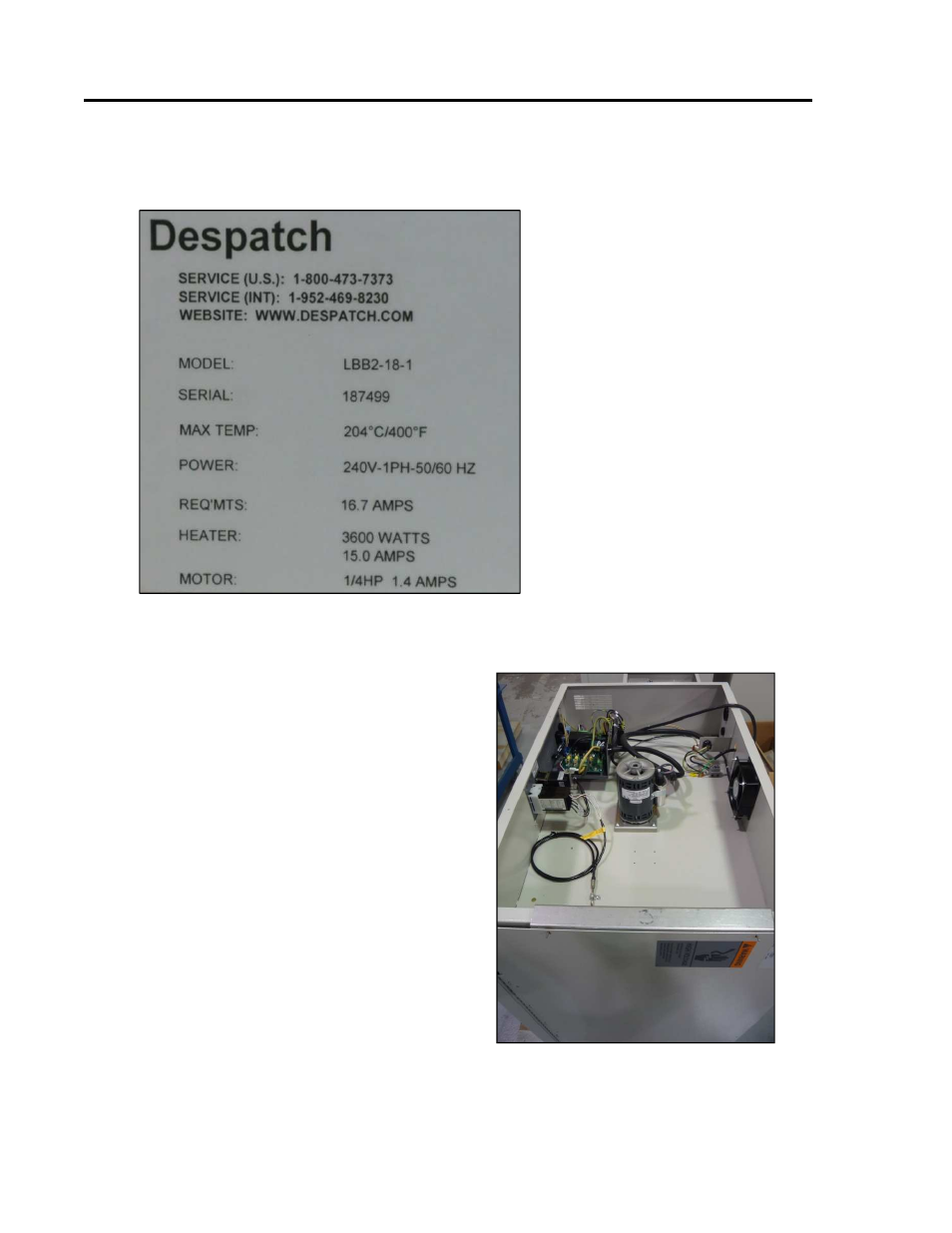

Figure 7. LBB Series Oven Name Plate Example.
Figure 8. LBB Series Oven with Top Removed.
