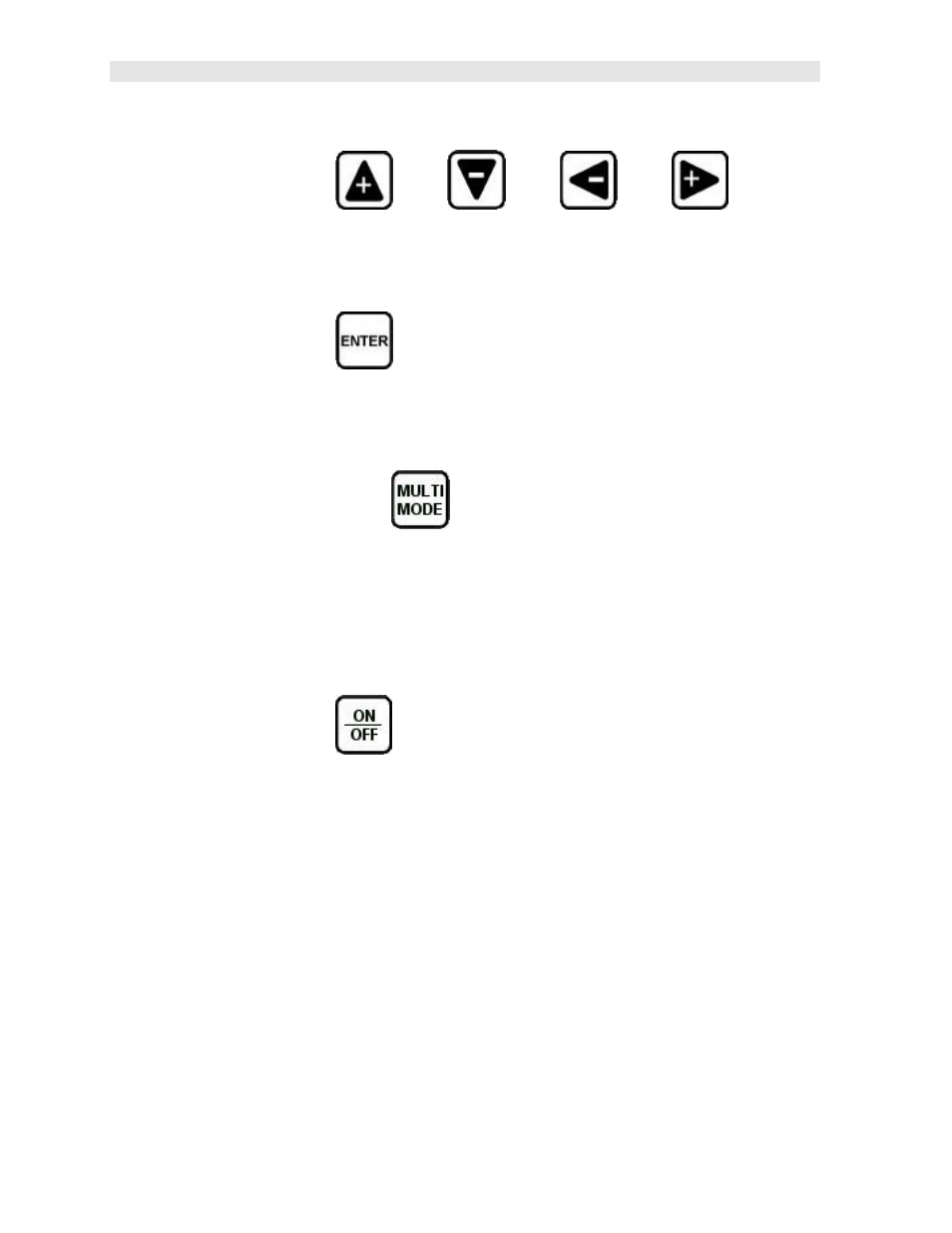

3.13 Arrow Keys
The Arrow Keys are used to navigate through the menus, increase/decrease values,
and toggle specific function keys.
3.14 ENTER key
The ENTER key is used in the overall menu selection process to activate list and edit
boxes.
3.15 MULTI MODE Key
The MULTI MODE key opens a measurement mode screen listing all the modes that
are available to the transducer specifically selected. The modes can be all or a
combination of the entire set of modes the CMX offers, depending on which
transducer is being used as follows: Coating Off (P-E), Coating On (PECT), Temp
Comp (PETP), Thru-Coat (E-E), Thru Coat Verify (E-EV), and Coating Only (CT).
3.16 ON/OFF Key
The ON/OFF key simply powers the unit either ON or OFF. Note: Unit will
automatically power off when idle for 5 minutes. All current settings are automatically
saved prior to powering off.
