Page 22

Dakota Ultrasonics

8) Press the OK key to calculate the coating velocity and return to the menu

screen, or ESC to cancel the one point calibration.

9) Finally, press the MEAS key to return to the measurement screen and begin

taking readings.

Note: CHECK YOUR CALIBRATION! Place the transducer back on the

calibration point. The coating thickness reading should now match the known

coating thickness sample. If the thickness is not correct, repeat the steps

above.

2.7 Measure

The CMX is now ready to measure. There are two different measurement view
options, each with a specific purpose – Digits & B-Scan. The steps below outline
how to toggle between the different view mode options:

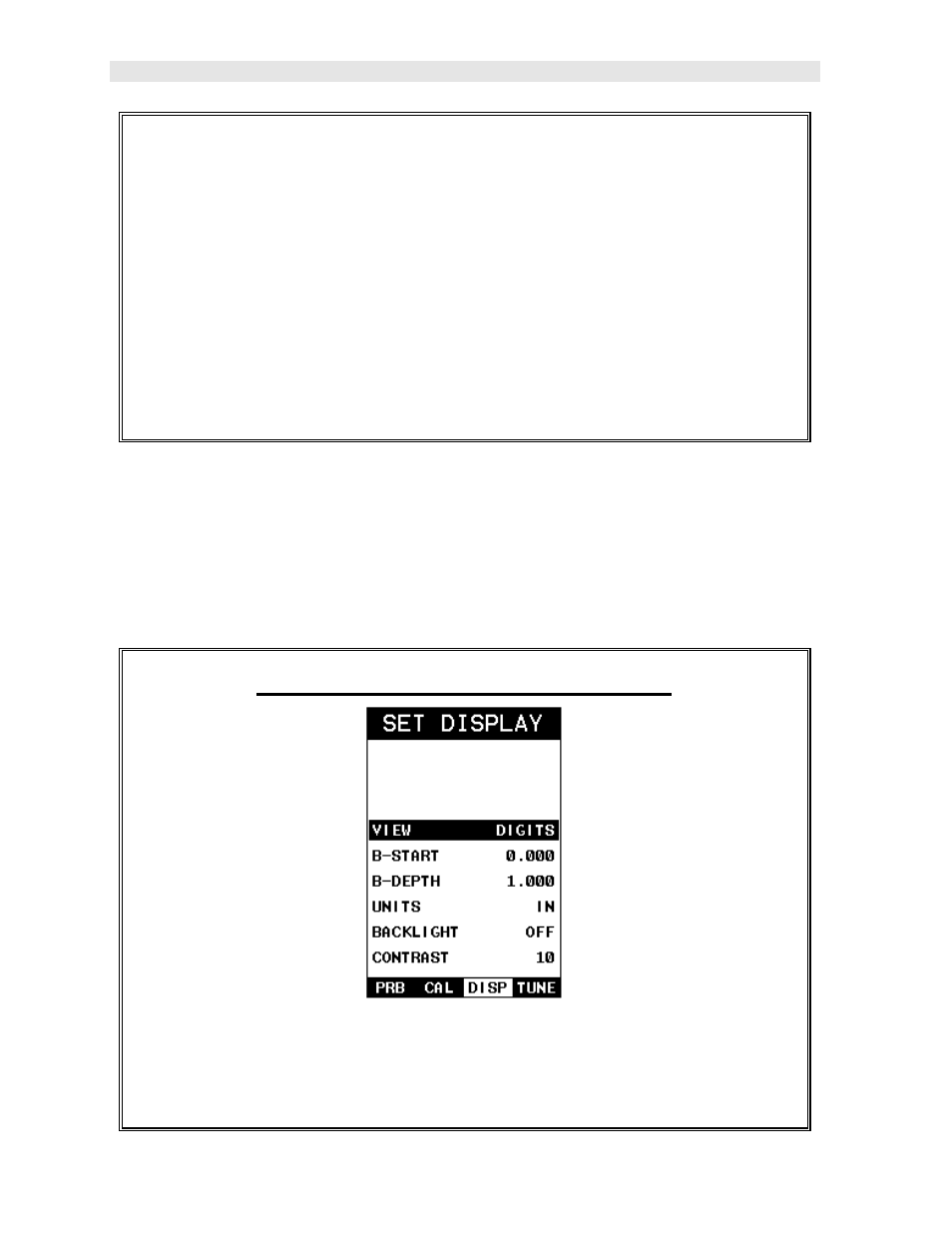

Selecting the Measurement View Option

1) Press the MENU key once to activate the menu items tab. Press the MENU

key multiple times to tab right and the ESC key multiple times to tab left until

the DISP menu is highlighted and displaying the submenu items.
