STEP 8 Final Adjustment
8.1) Check the level on the diverter. If adjustment is not needed, proceed to the next step. If adjustment is needed,
reference the Maintenance Instructions (below) for proper adjustment and leveling of the diverter.
Your new Clarus Environmental Splitter System is now in service.
Maintenance
1) Remove cap on riser.
2) Check the level on the diverter with flashlight. If the level
does not need adjustment, then maintenance is not required
at this time. If level is not centered between the lines, then
proceed to the next step.
3) Loosen the thumb screw (two full turns max) until the diverter
can be adjusted. The thumb screw can be adjusted by hand
or by using a ¾" pipe ( not supplied) with a slot as shown in
Figure A.1.
4) Using the ¾" pipe, or by hand, tap at point “A” or “B” on the
bottom surface of the diverter until the diverter is level. See
Step 6 on page 3, Figure 6.1.
5) Once the diverter is leveled, tighten the thumb screw until the
diverter is stationary. DO NOT OVERTIGHTEN THE THUMB
SCREW. Check bubble level with flashlight. If diverter
becomes unlevel during tightening, repeat steps 3, 4 and 5.
6) Replace cap on riser.
The splitter system should be checked annually in conjunction with your yearly septic system inspection.
THUMB SCREW
3/16" X 3/16"
SLOT
3/4" PIPE
AS NEEDED

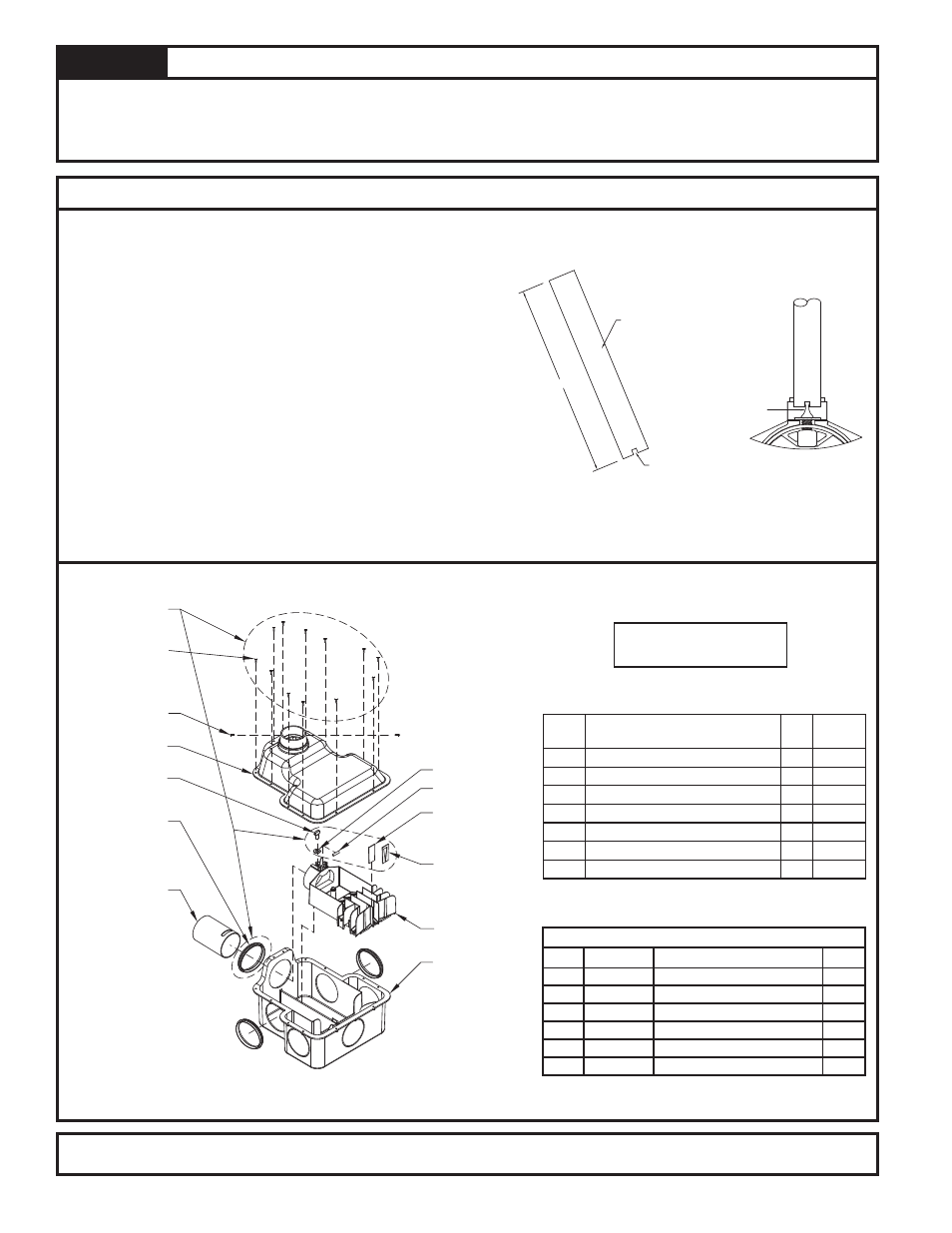

Figure A.1
SK1953
All Clarus Environmental products must be installed and maintained in accordance with all applicable codes.
Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.
Replacement Parts List for Model 173-0001 Splitter System
SK1954
REF.# DESCRIPTION QTY.
PART
173-0001
1 Hardware Pack 1 013236
2 Cover 1 013043
3 Slotted Pipe Nipple 1 013241
4 Diverter 1 012925
5 Basin 1 013044
8 Thumb Screw, Plastic 3/8"-16 1 013239
10 Washer, SS-1" O.D. 1 006413
U.S. Patent Nos.
6,152,650 and 6,112,766
(BLANK COVER)
(3 SEALS NOT SHOWN) (2 COVERS NOT SHOWN)
(RESTRICTOR COVER)
(2 COVERS NOT SHOWN)
4
14
13
10
11
12
5
3
9
8
6
2
1
HARDWARE PACK P/N 013236
REF.# P/N DESCRIPTION QTY.
6 014515 Screw, SS#12 x 3/4" Phillips 12
9 013238 Pipe Seal, Tuf-Tite-SDR 35 6
11 013237 Bubble Level, 3/8" x 1 3/8" LG 1
12 013240 Slot Cover 3
13 011644 Screw, SS #10-16 x ½" Phillips 2
14 013753 Cover, Slot Diverter 3
Lifetime Warranty: Every Clarus Splitter System is guaranteed to be free from defects in materials and workmanship for the lifetime of the homeowner/purchaser. Free repair or
replacement, excluding labor, will be made on return of the splitter system prepaid to the factory. This warranty is limited to product proven to be free from abuse or improper installation.
