Clarus Environmental 6000 Series Automatic Multizone Valve User Manual

Page 2

Limited Warranty

Manufacturer warrants, to the purchaser and subsequent owner during

the warranty period, every new product to be free from defects in material

and workmanship under normal use and service, when properly used and

maintained, for a period of one year from date of purchase by the end user, or

18 months from date of original manufacture of the product, whichever comes

first. Parts that fail within the warranty period, one year from date of purchase

by the end user, or 18 months from the date of original manufacture of the

product, whichever comes first, that inspections determine to be defective

in material or workmanship, will be repaired, replaced or remanufactured

at manufacturer's option, provided however, that by so doing we will not be

obligated to replace an entire assembly, the entire mechanism or the complete

unit. No allowance will be made for shipping charges, damages, labor or

other charges that may occur due to product failure, repair or replacement.

This warranty does not apply to and there shall be no warranty for any

material or product that has been disassembled without prior approval

of manufacturer, subjected to misuse, misapplication, neglect, alteration,

accident or act of God; that has not been installed, operated or maintained

in accordance with manufacturer's installation instructions; that has been

exposed to outside substances including but not limited to the following:

sand, gravel, cement, mud, tar, hydrocarbons, hydrocarbon derivatives (oil,

gasoline, solvents, etc.), or other abrasive or corrosive substances, wash

towels or feminine sanitary products, etc. in all applications other than in

raw effluent pumping applications. The warranty set out in the paragraph

above is in lieu of all other warranties expressed or implied; and we do not

authorize any representative or other person to assume for us any other

liability in connection with our products.

Contact manufacturer at, 3649 Cane Run Road, Louisville, Kentucky 40211,

Attention: Customer Service Department to obtain any needed repair or

replacement of part(s) or additional information pertaining to our warranty.

MANUFACTURER EXPRESSLY DISCLAIMS LIABILITY FOR SPECIAL,

CONSEQUENTIAL OR INCIDENTAL DAMAGES OR BREACH

OF EXPRESSED OR IMPLIED WARRANTY; AND ANY IMPLIED

WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND OF

MERCHANTABILITY SHALL BE LIMITED TO THE DURATION OF THE

EXPRESSED WARRANTY.

Some states do not allow limitations on the duration of an implied warranty,

so the above limitation may not apply to you. Some states do not allow

the exclusion or limitation of incidental or consequential damages, so the

above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights and you may also have other

rights which vary from state to state.

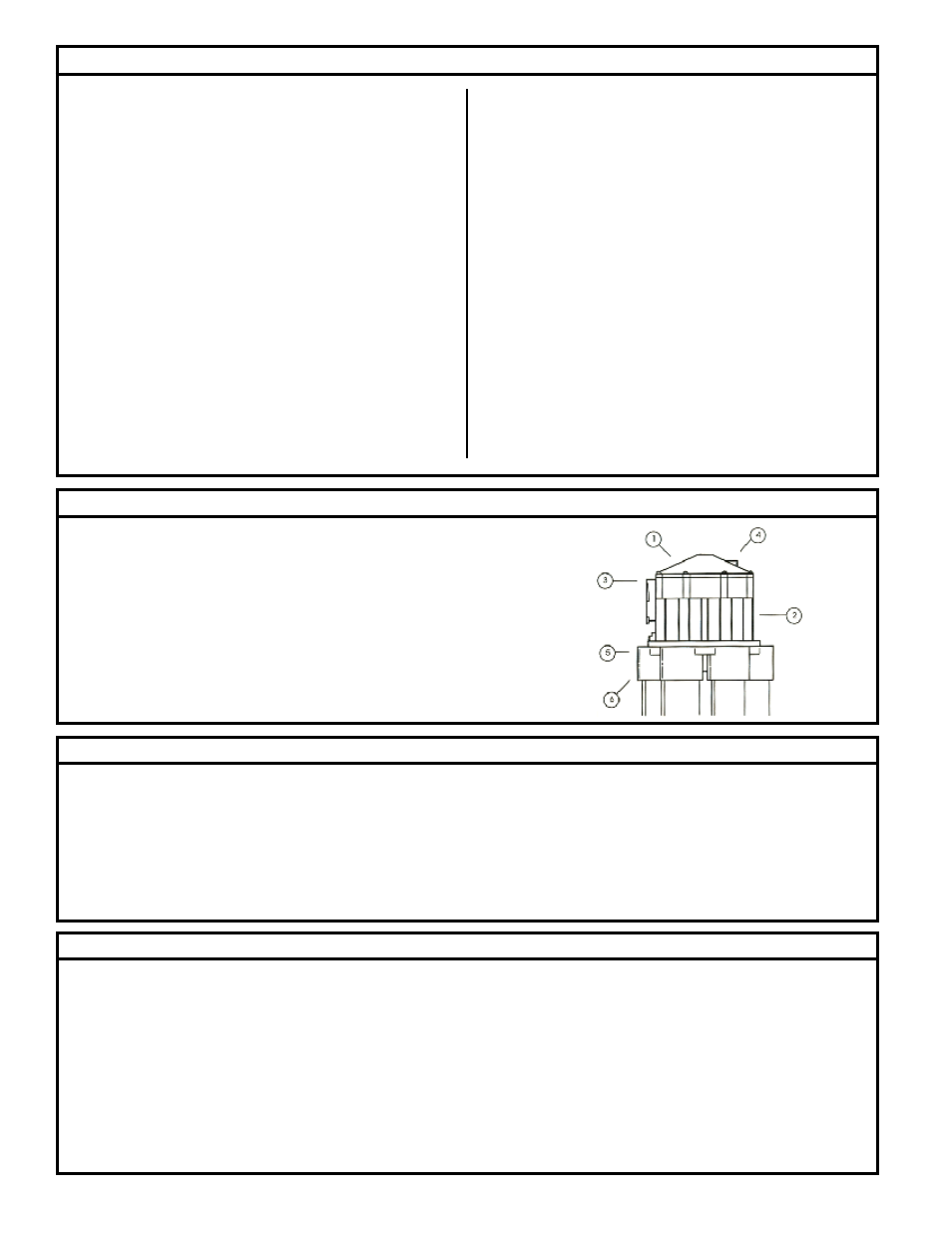

Major Components

1. Valve Top: A high strength metal die cast top which is secured to the valve body by eight

stainless steel screws.

2. Valve Body: A high strength metal die cast housing.
3. Inlet: Female 1 ½" NPT inlet for connection to water source.
4. Vacuum Breaker Port: Used to prevent back-siphon of water to course.
5. Valve Bottom: High strength ABS plastic bottom which is secured to a valve body with 6

stainless steel screws.

6. Outlets - Allows for slip and glue connection to 1 ½" PVC pipe.

Cam Replacement Instructions

Replacement cams are available to increase or decrease the number of outlets to be used on the 6000 Series Automatic Multizone Valve. 6400 Series four

outlet valves have interchangeable cams for two, three or four zone operation. 6600 Series six outlet valves have interchangeable cams for five or six zone

operation.
To replace cam, first remove valve top by removing eight valve top retaining screws. Remove two cam retaining screws which hold cam on the underside of

the valve top.
Insert replacement cam into valve top, ensuring that the wide notch on came is aligned with notch on valve top, and secure with two cam retaining screws.
Replace top, ensuring body seal is in place.

Valve Installation Instructions

Prior to installation of 6000 Series Automatic Multizone Valve, make sure that the system is designed using adequate pipe sizes and control valves to

ensure maximum performance of the valve.
For installation with large terrain elevations, or applications with high lift requirements such as overhead systems in greenhouses, the valve should be

installed at the highest point in the system, or check-valves should be installed near the valve in the elevated lines to prevent the back flow of water from

the higher locations to the lower zones.
When connecting the lines to the valve outlets, ensure that the correct cam is installed. See diagram for proper zone hookup of outlets.
Do NOT turn the valve upside down when gluing the lines into the open valve outlets. Glue may run down into the valve and interfere with valve operation.

Allow glue to dry for at least two hours before operating or testing the valve. For best results, use a multipurpose glue which is compatible with ABS plastic.
To seal off any unused outlets, install a piece of PVC pipe at least six inches in length to the outlet and cap the pipe. This will allow additional zones to be

added easily at a later time. Make sure proper cam is installed for number of zones to be used.
