Technical Reference Booklet
PIN SIGNAL DESCRIPTION
1 VCC +5V/5VSB (optional)
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V/5VSB (optional)
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground
Mouse Connector
The motherboard provides a standard PS/2 ® mouse mini DIN connector for
attaching a PS/2 ® mouse.You can plug a PS/2 ® mouse directly into this
connector.
Keyboard Connector
The motherboard provides a standard PS/2 ® keyboard mini DIN connector for
attaching a PS/2 ® keyboard.You can plug a PS/2 ® keyboard directly into this
connector.
USB 2.0 Connector
The motherboard provides an OHCI (Open Host Controller Interface) Universal
Serial Bus root for attaching USB devices such as keyboard, mouse or other
USB-compatible devices.You can plug the USB device directly into the
connector.
USB 2.0 Connector Description USB 2.0 Connector

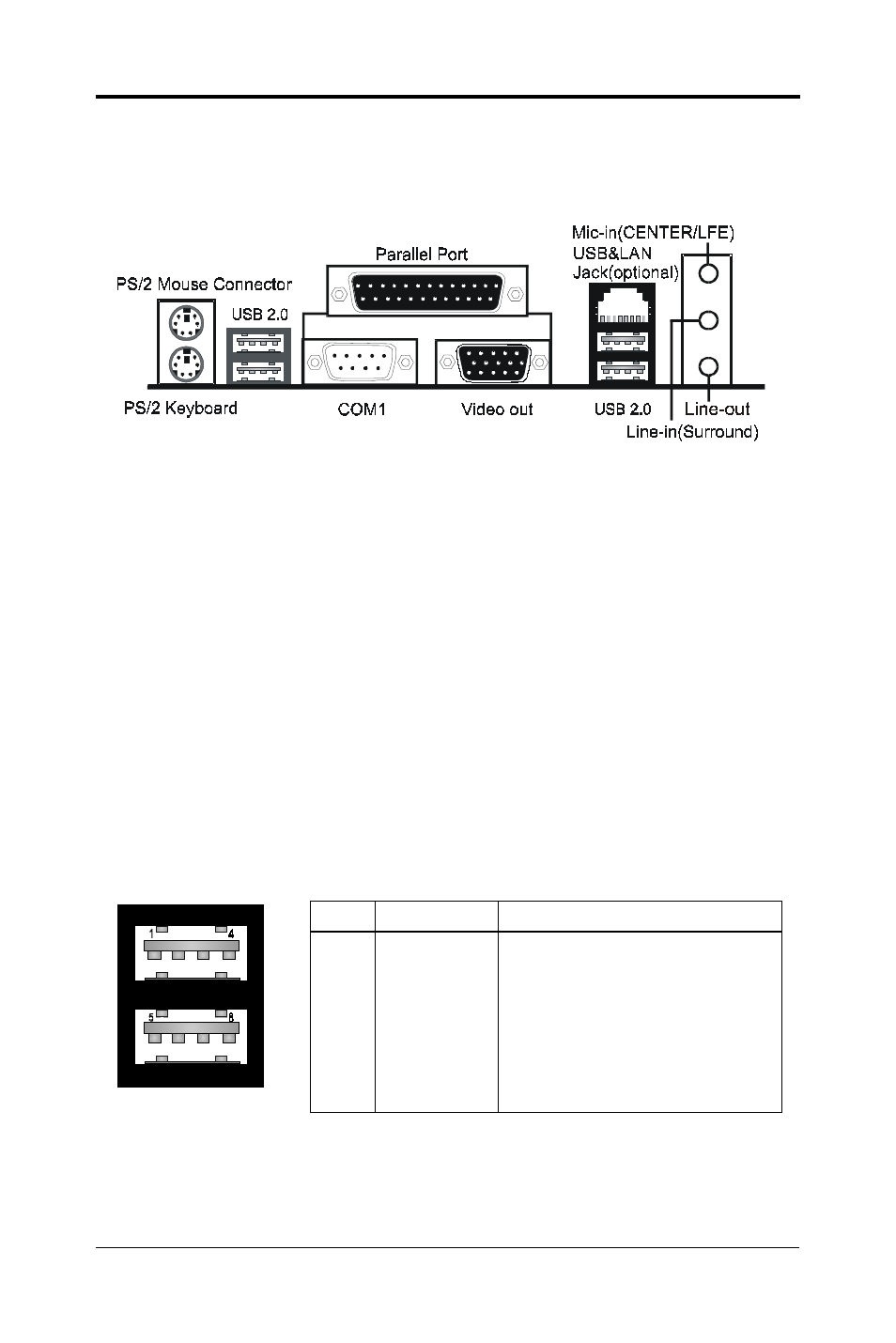

REAR PANEL
The back panel provides the following connectors:
