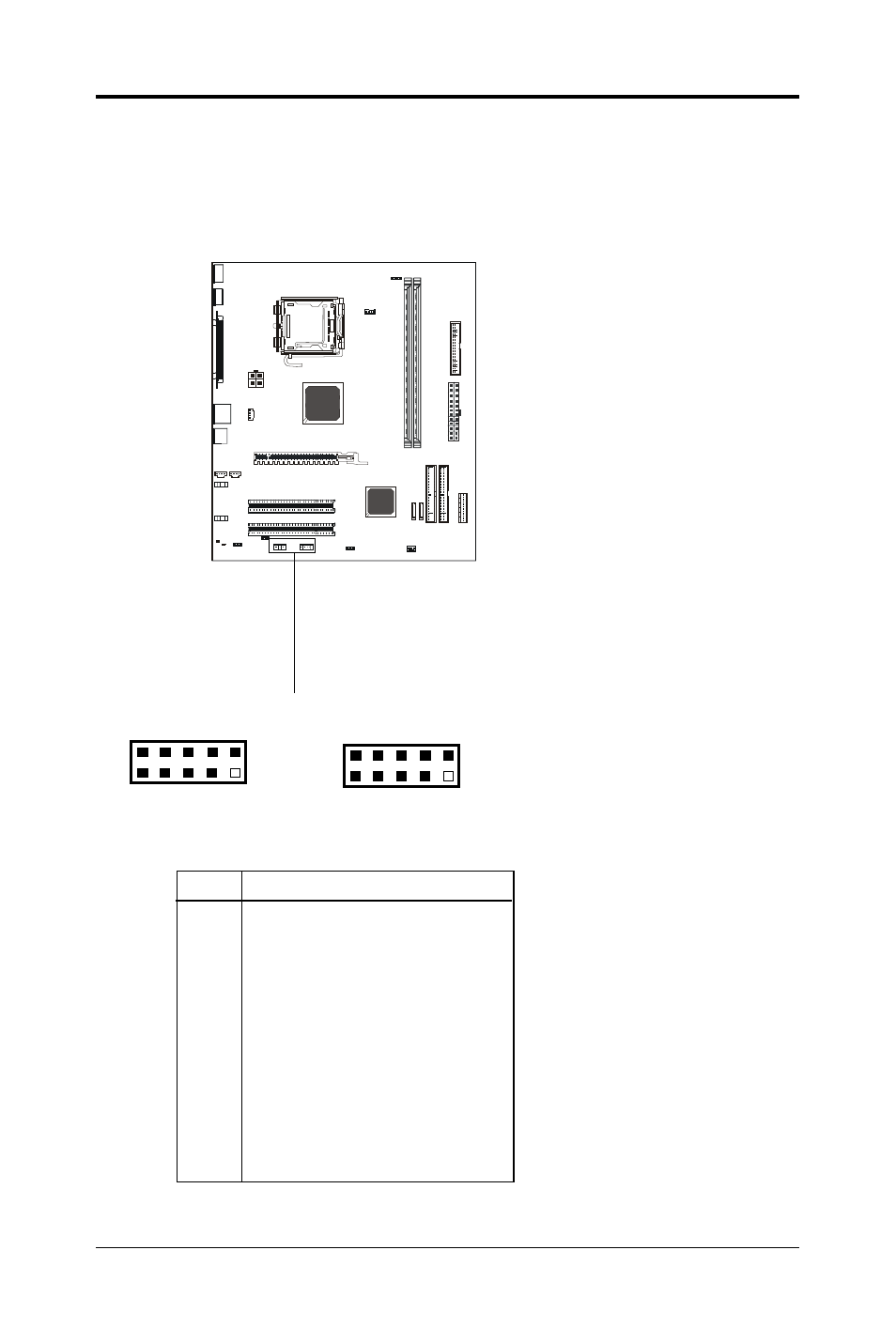

USB Connector: FP-U1/FP-U2
This motherboard has USB ports. Some computer cases have a special
module that mounts USB ports at the front of the case. If you have this kind of
case, use the auxiliary USB connector FP_U1/FP_U2 to connect the front
mounted ports to the motherboard.
PIN Assignment
1 VCC
2 VCC
3 USBP0-
4 USBP1-
5 USBP0+
6 USBP1+
7 GND
8 GND
9 KEY
10 OC#
USB Connector
10 10 10 10 10
9 99 9 9
2 22 2 2
1
11 1 1
FP-U1
10 10 10 10 10
9 99 9 9
2 22 2 2
1
11 1 1
FP-U2
