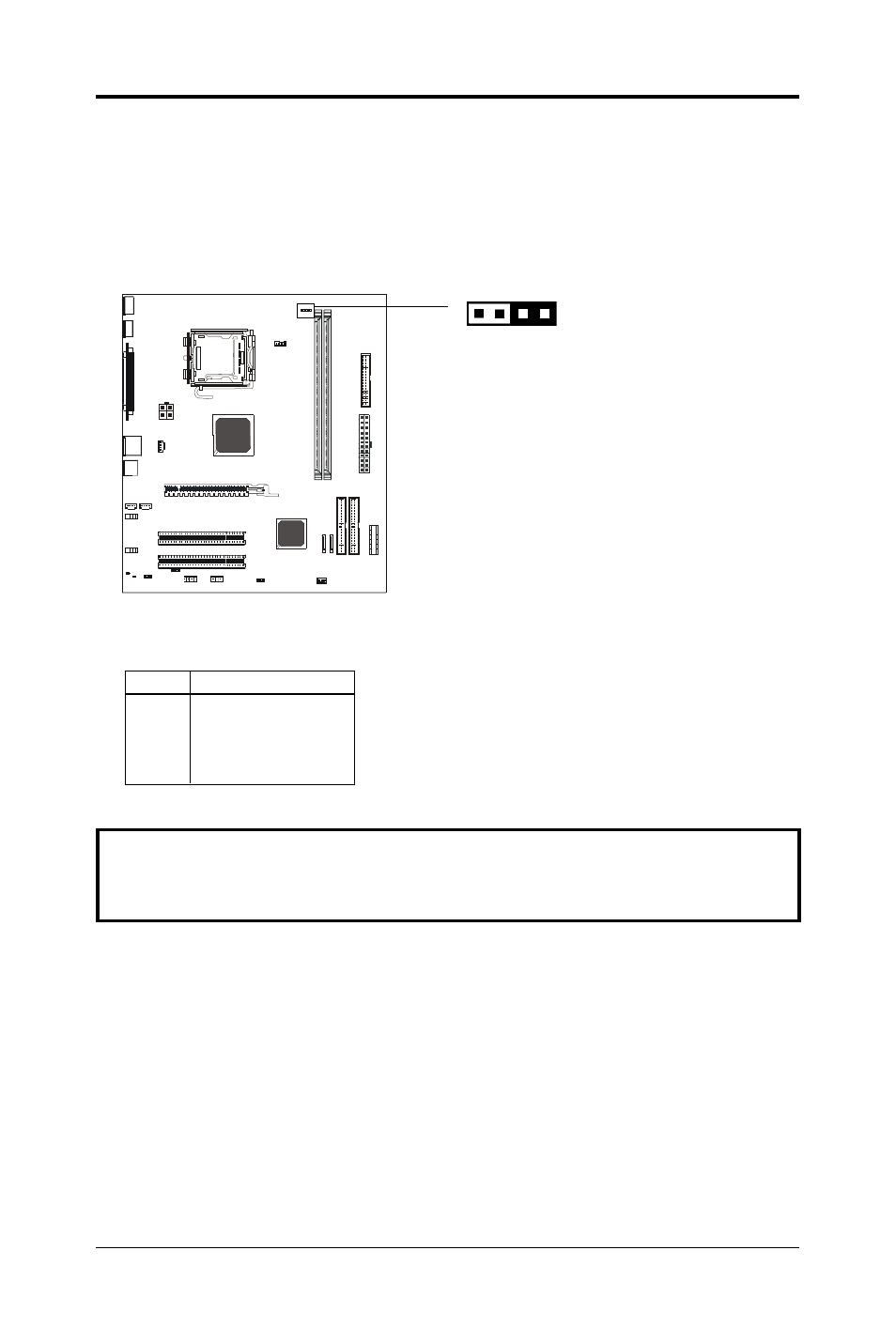

Chassis Alarm Lead: JP12 (optional)
This lead is for a chassis designed with an intrusion detection feature. This
requires an external detection mechanism such as a chassis intrusion sensor
or microswitch. When you remove any chassis component, the sensor triggers
and sends a high-level signal to this lead to record a chassis intrusion event.
JP12
1 11 1 1
PIN Assignment
1 +5VSB
2 KEY
3 Chassis Signal
4 GND
JP12 Pin Definition
Note: Note: Note: Note: Note:
If you want to use “Chassis Alarm” Connector, you must remove3-4
jumper.
