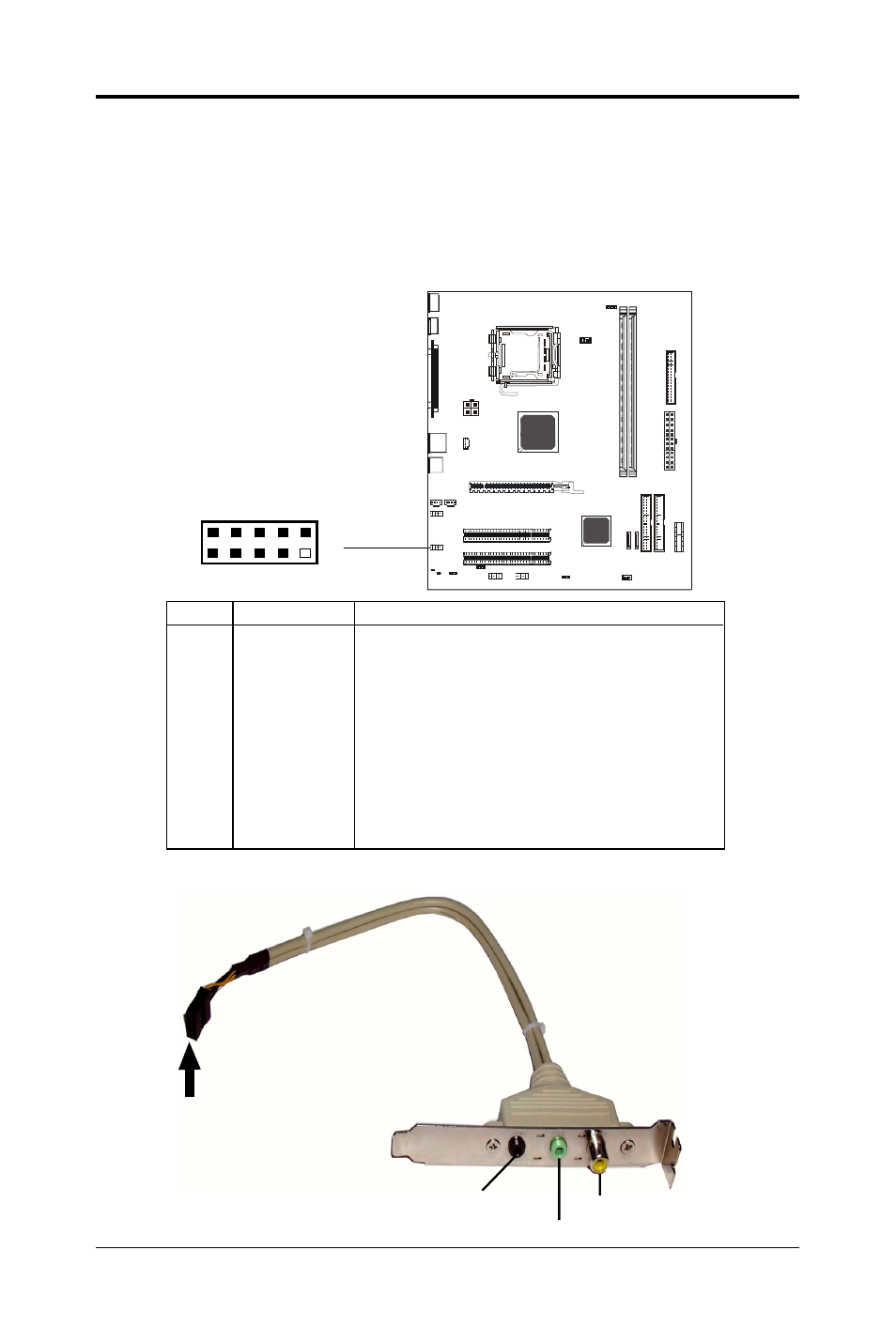

S-Bracket (SPDIF)/CEN/LFE/Surround Output Connector:
J19 (optional)
The connector allows you to connect a S-Bracket for a Digital Interface (SPDIF).
The S-Bracket offers 1 SPDIF jacks for digital audio transmission and 2 analog
Line-Out jacks for other 4-channel audio output. So you can use Line in, Mic in
and 6 channel audio output features at the same time.
PIN
SIGNAL
DESCRIPTION
1
SOUT-L
Audio left surrounding output
2
SOUT-R
Audio right surrounding output
3
GND
Ground
4
GND
Ground
5
CET-OUT
Audio center output
6
LFE-OUT
Audio bass output
7
GND
Ground
8
SPDIF
S/PDIF input
9
KEY
NC
10
SPDFO
S/PDIF output
S-Bracket Cable (optional)
Connect to J19
J19
2
22
2
2
1
11
1
1
10
10
10
10
10
9
99
9
9
SPDIF jack (coaxial)
Rear Speaker Out
Center and Subwoofer Out
