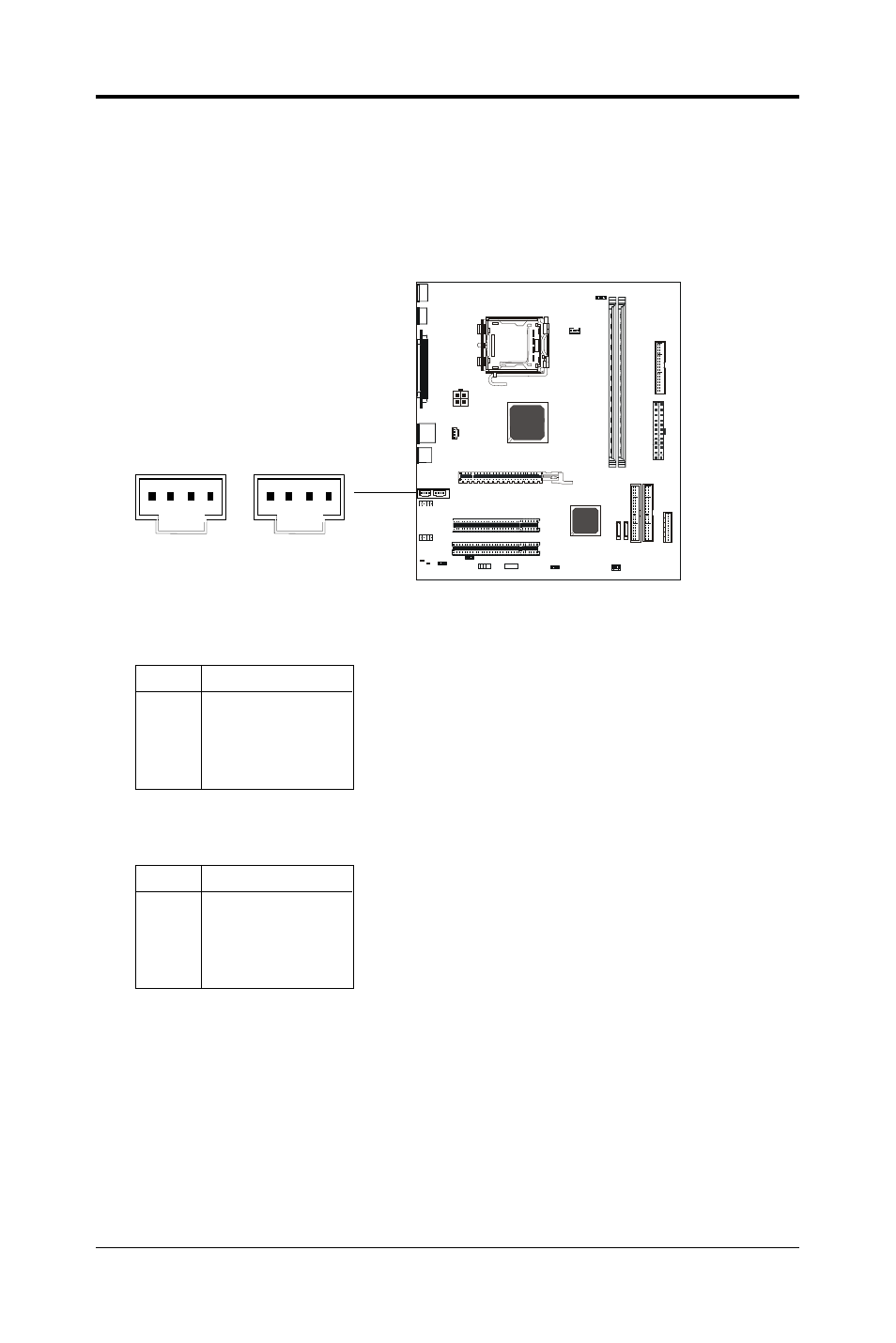

CD-IN Connector: J18

The connector is for CD-ROM Drive.

AUX-IN Connector: J20

The connector is for Audio Device.

J18

PIN

Assignment

1

CD-L

2

GND

3

GND

4

CD-R

CDS1 : J18

AUX1 : J20

PIN

Assignment

1

AUX-L

2

GND

3

GND

4

AUX-R

1

J20

1

FO

X

C

O

N

N

RE
