Pulper/Water Extractor - Initial Start-up
Water Fill Adjustments
1. Make sure all access doors, panels and safety devices are in place, secure and operating.
2. Turn the Main Circuit Breaker Switch on the remote control cabinet to the ON position.
3. Use an assistant to watch the pump and drive motors for proper rotation.
Push the START push button and then immediately push the STOP push button and
check the rotation of the pumps, pulper drive and water extractor drive motors.
Correct the phasing of the motors as required.
4. Push the green Start push button on the Start/Stop station located on the Water Extractor.
All motors will run and the pulper will fill with water to the level previously set at the factory.
5. The pulper water level is controlled by the water level pressure switch located on the side of the
pulper tank. The water level pressure switch is housed in a blue enclosure. (See photos below).
6. To adjust the water level pressure switch:
A. Remove 2 screws on the switch cover
B. Remove the cover.
C. Turn the level adjusting screw CW to reduce the water level, CCW to increase.
7. The proper water level in the pulper tank should be below the level of the water extractor return
piping. If the pulper is fed by a trough system, then the pulper water level should be below the
trough inlet to the pulper. The water should not flow back into the trough when the water level is
set at the correct level.

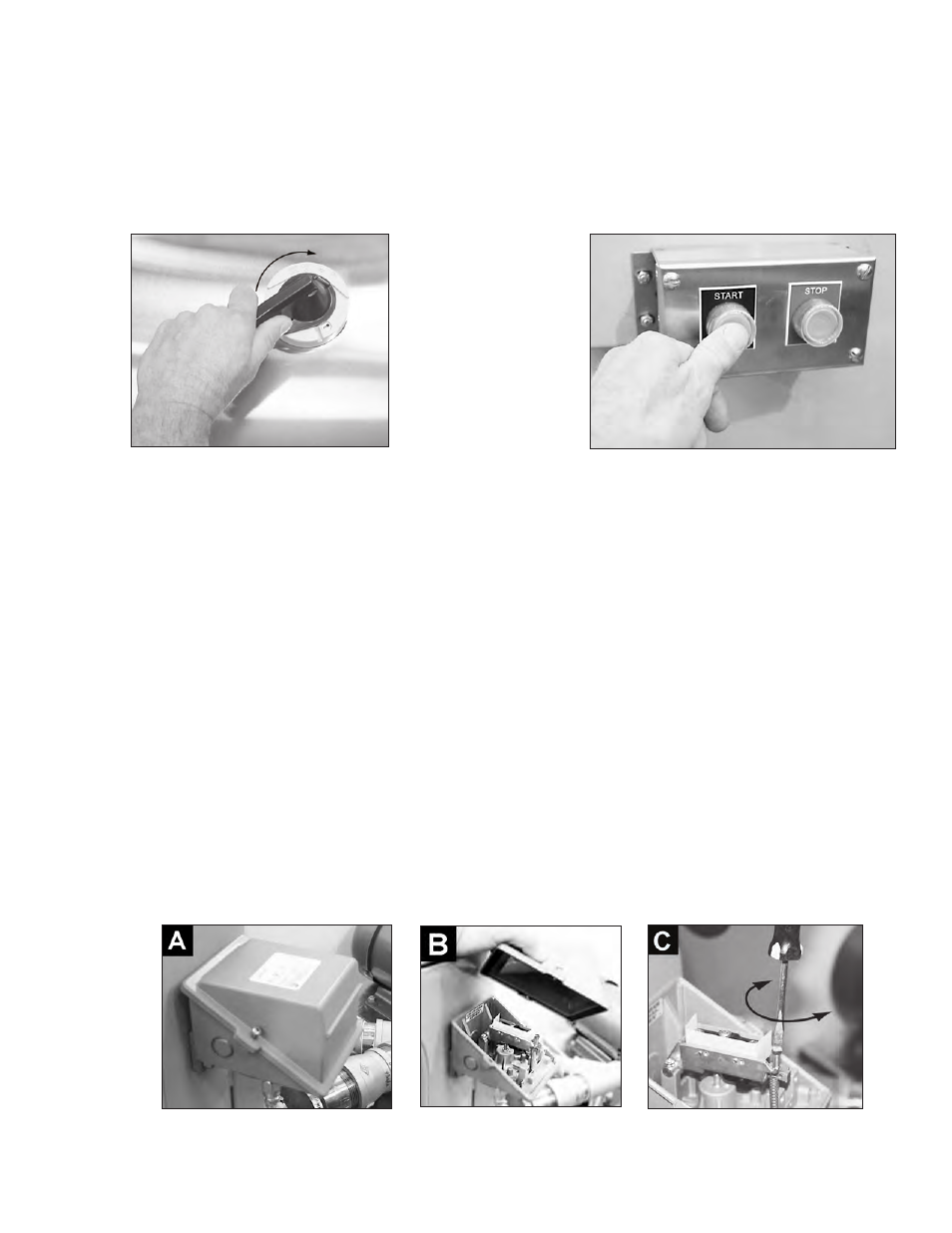

Turn the Main Circuit Breaker Switch
to the ON position.
Push the START push button located on
the water extractor.
