Recirculating Pump Trough Connection Kit: P/N 407365
½" Critical Gap
Trough (supplied by others)
Suggested Trough Baffle
(supplied by others)
Trunk Option A
Trunk Option B
Slurry Water
Recirculating
Pump
1½" Pipe
(supplied by others)
1
2
3 4
5
6 7
7
8
1 102448 Elbow, 1" x 90° Brass 1
2 100585 Locknut, 1" NPT Brass 1
3 111557 Nipple RTOE 1" x 2-12" Brass 1
4 111079 Tee, Red. 1-1/2" x 1-1/2" x 1" Brass 1
5 111080 Plug 1-1/2" Brass 1
6 204731 Stub End, Recirc Pump 1
7 107340 Clamp, Hose SST w/CS Screw 2
8 111117 Hose, 1-5/8" I.D. 1
9 104889 Compound, Grey Sealing 1 ft.
Item No. Part No. Qty. Description
Recirculating Pump Trough Connection Kit: P/N 407365
Recirculating Pump Trough Connection Kit P/N 407365
1
2
3
Form # 900822
P-5 Recirculating Pump Trough Connection Kit: P/N 407365

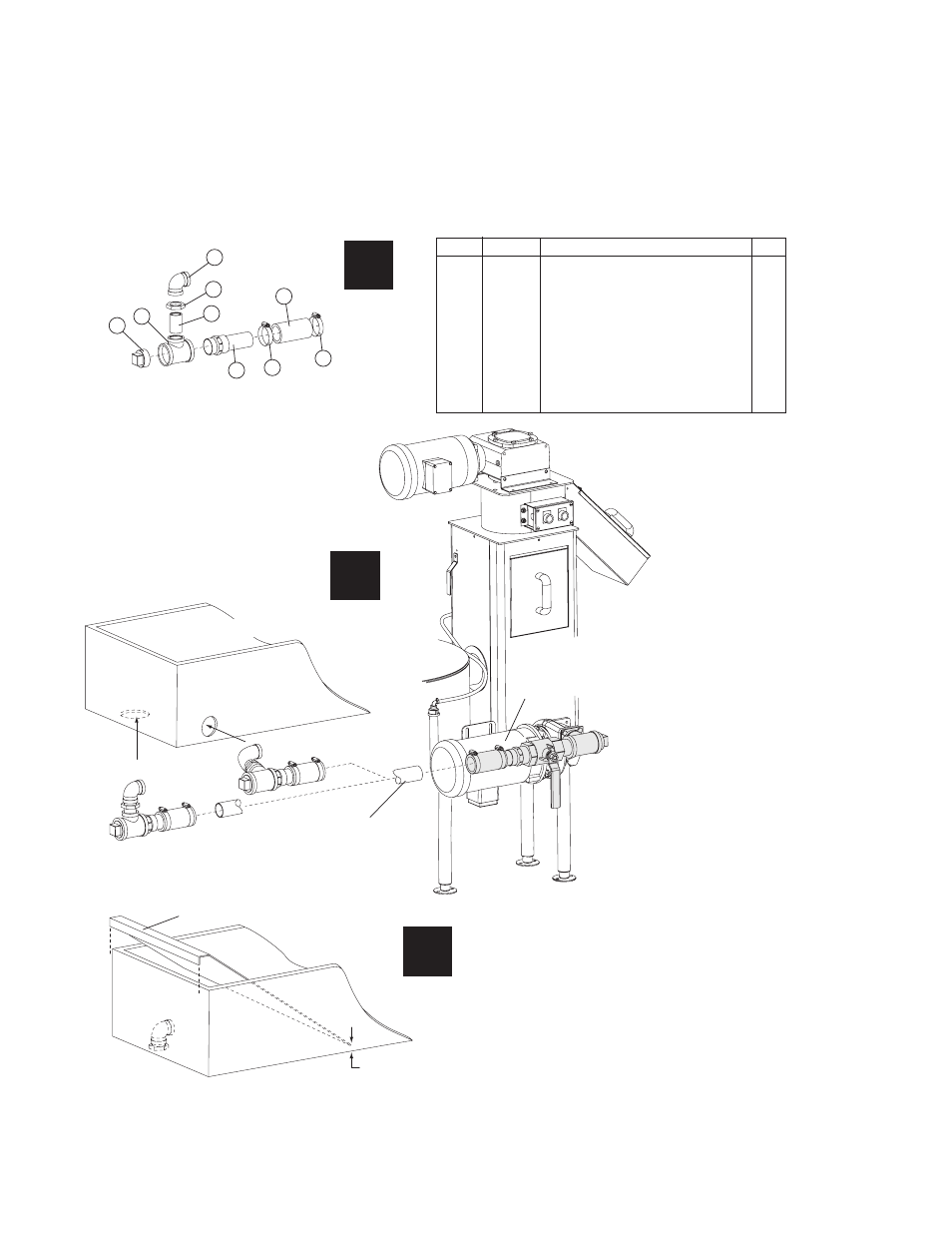

A trough connection kit (See No. 1 below) is shipped with each pulper equipped with a recirculating pump.
The kit is designed to connect the recirculating pump discharge to a waste trough (supplied by others).
Trunk Option A and Trunk Option B (See No. 2 below) are two suggested methods of making the trunk
connection to the trough which is supplied by others.
!! ATTENTION !!
A splash baffle (supplied by others) must be
fabricated and installed in the discharge end of
the trough to create the proper water flow. See
No. 3 at left for a suggested design for the baffle.
The splash baffle must extend across the entire
length of the trough and maintain a 1/2" gap
between the baffle and the trough bottom.
The trough must be removable for cleaning.
