Receiving • Installation
Follow the steps below to receive the waste handling system at the installation site.
Refer to Theory of Operation on page 2 for an illustration of the system.
NOTE:
The waste handling system may require parts and materials that are not supplied by the factory.
The scrapping station water trough is an example of an item typically supplied by others.
NOTE:
Observe all safety regulations and procedures when moving and placing the machine.
CAUTION:
To prevent damage to the machine, do not lift the machine by any of its piping or electrical
conduit.
1. The waste handling system is shipped on a single pallet. The system consists of a pulper,
water extractor, and remote control cabinet.
2. If specified, optional fasteners, trough gaskets, and anti-vibration feet are stored inside the
pulper tank.
3. Inspect the installation site before moving the machine, then place the machine and the
remote control cabinet at their permanent locations.
4. Complete the Warranty Registration Card located at the front of this manual and mail it
immediately to validate the machine warranty.
5. Level the pulper and water extractor front-to-back and side-to-side.
The legs are fitted with adjustable feet to level the machine.
6. Follow the instructions (supplied by others)
to permanently attach the machine to the floor.
7. A rubber gasket and mounting hardware is
supplied with the pulper if the installation
includes a feed trough system. The feed
trough system is supplied by others.
Receiving
IMPORTANT:
Plan the route used to transport the main components/pallets. Halls and doorways may be to small to travel through to
the final site.

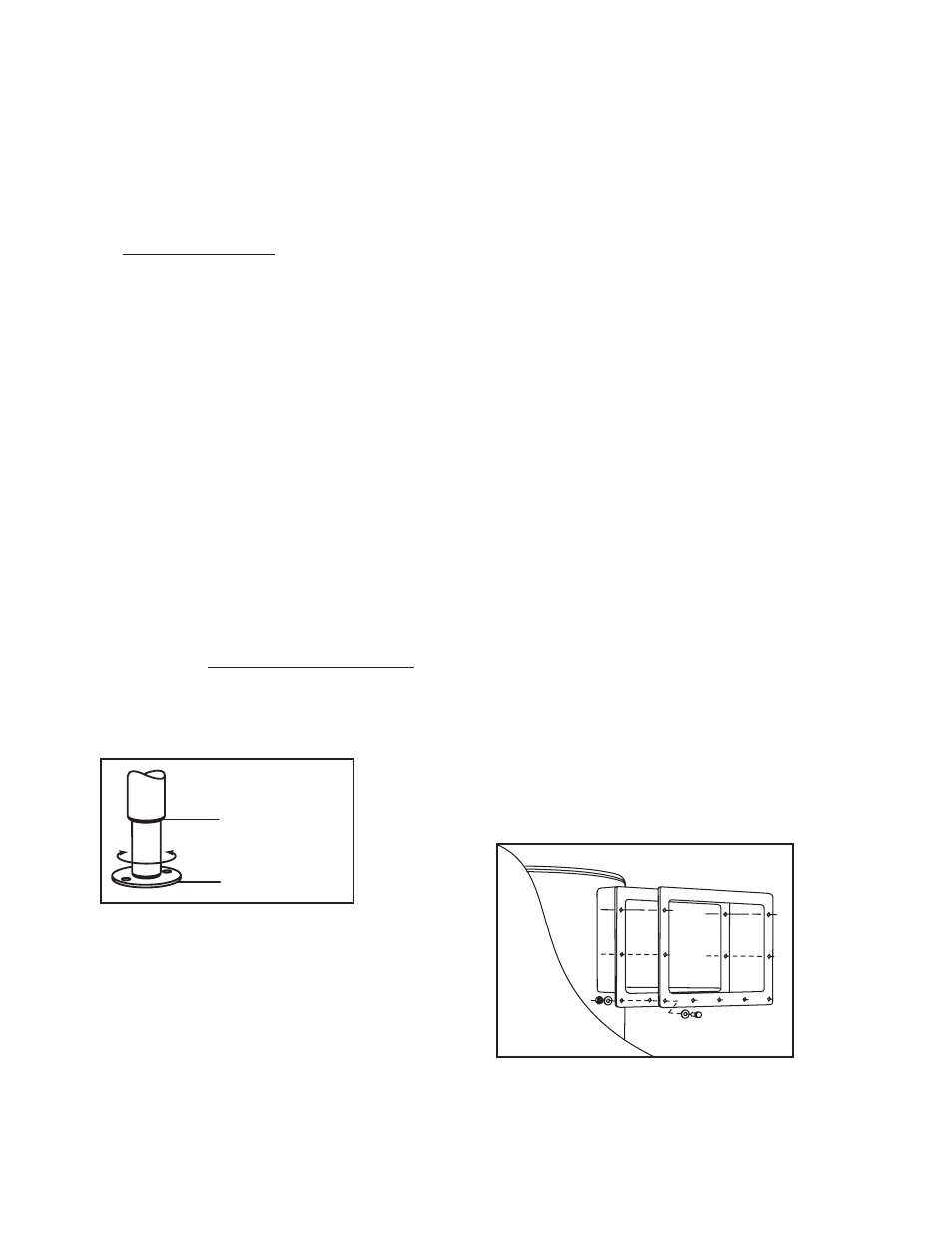

Rubber gasket for a trough connection is
supplied with the pulper.
2" [51mm]
Legs are fitted with adjustable feet.
