Page 93
85
P/N 114959 - Direct Vent Option Installation Instructions
Electrical Connections for the Optional Direct Vent Fan
(Supplied By Champion)
INPUT
MIN
MAX
MIN
MAX
LOAD
INPUT
LOAD
FC
CLT
FT
LR
FAN MOTOR-BLK
FAN MOTOR-WHT
WHITE #2
RED #19
BLUE #10
BLACK #4
ORANGE #5
BLK/WHT #55
TR
CLR
N
From Dishwasher
To Optional Vent Fan
(supplied by Champion)

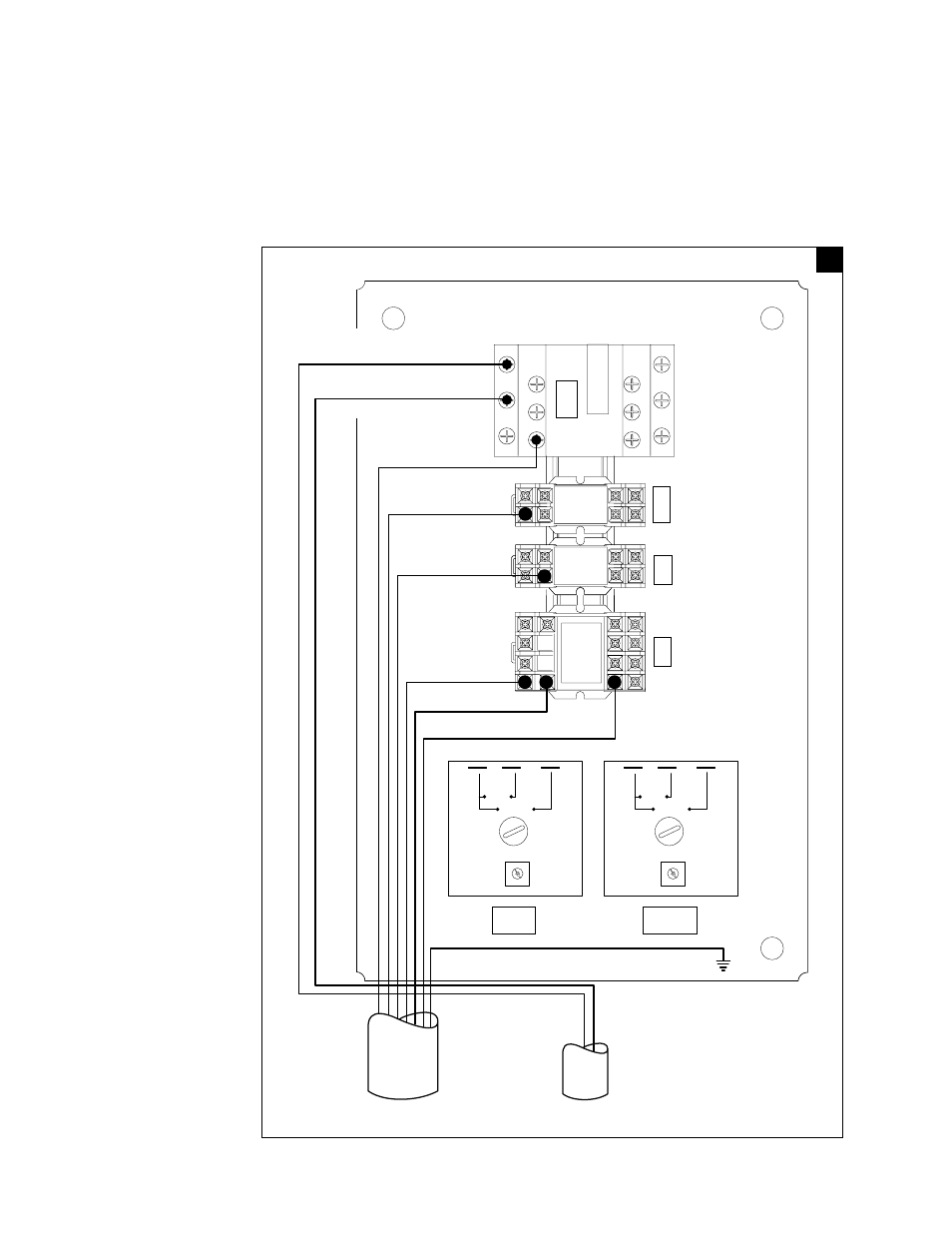

The wiring diagram in Figure N below illustrates the cable wire connections for
the vent fan electrical control box wired for the optional direct vent fan supplied by
Champion.
