Operation
Control Panel Description

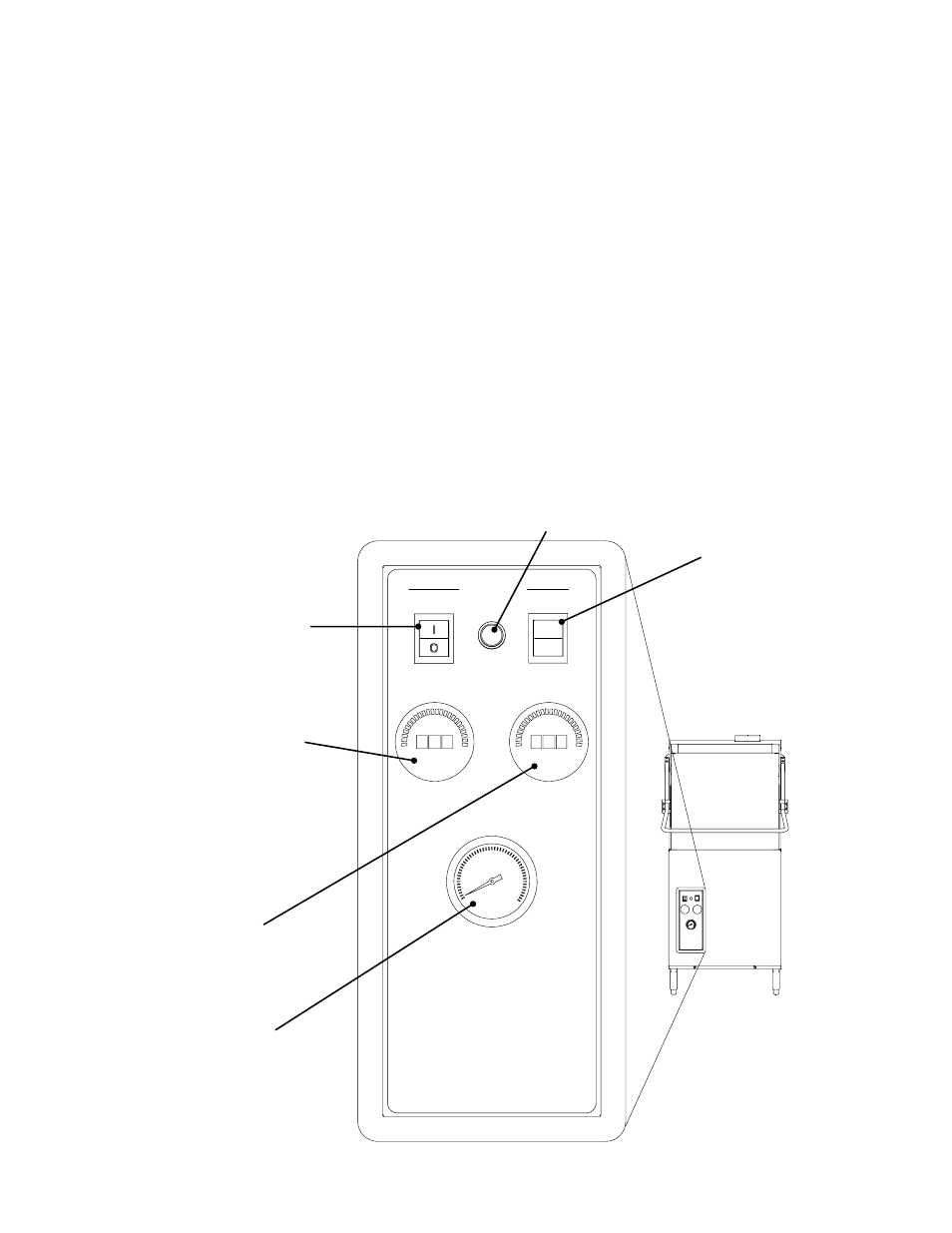

The control panel is located on the front left side of the lower panel. The controls include:
A - ON/OFF DRAIN power switch. Turns power on and off and initiates a drain cycle
when the switch is placed in the Off/Drain position.
B - CYCLE green indicator light. Illuminates during an automatic timed cycle.
The cycle light is off during the 10 minute automatic drain cycle.
C- CYCLE SELECTOR switch. Standard position provides a 60 second total cycle
and the Extended position provides a 90 second total cycle for heavy soiled items.
D- WASH (150°F) digital temperature display. Indicates the wash tank water temperature
whenever the dishwasher tank is full of water (see next page, Digital Temperature Displays).
E- RINSE (180°F) digital temperature display. Indicates the final rinse water temperature
during the final rinse (ee next page, Digital Temperature Displays).
F- PRESSURE gauge. Indicates the final rinse water flowing pressure during the final rinse.
The proper pressure reading is 20/25 PSI during the final rinse.
