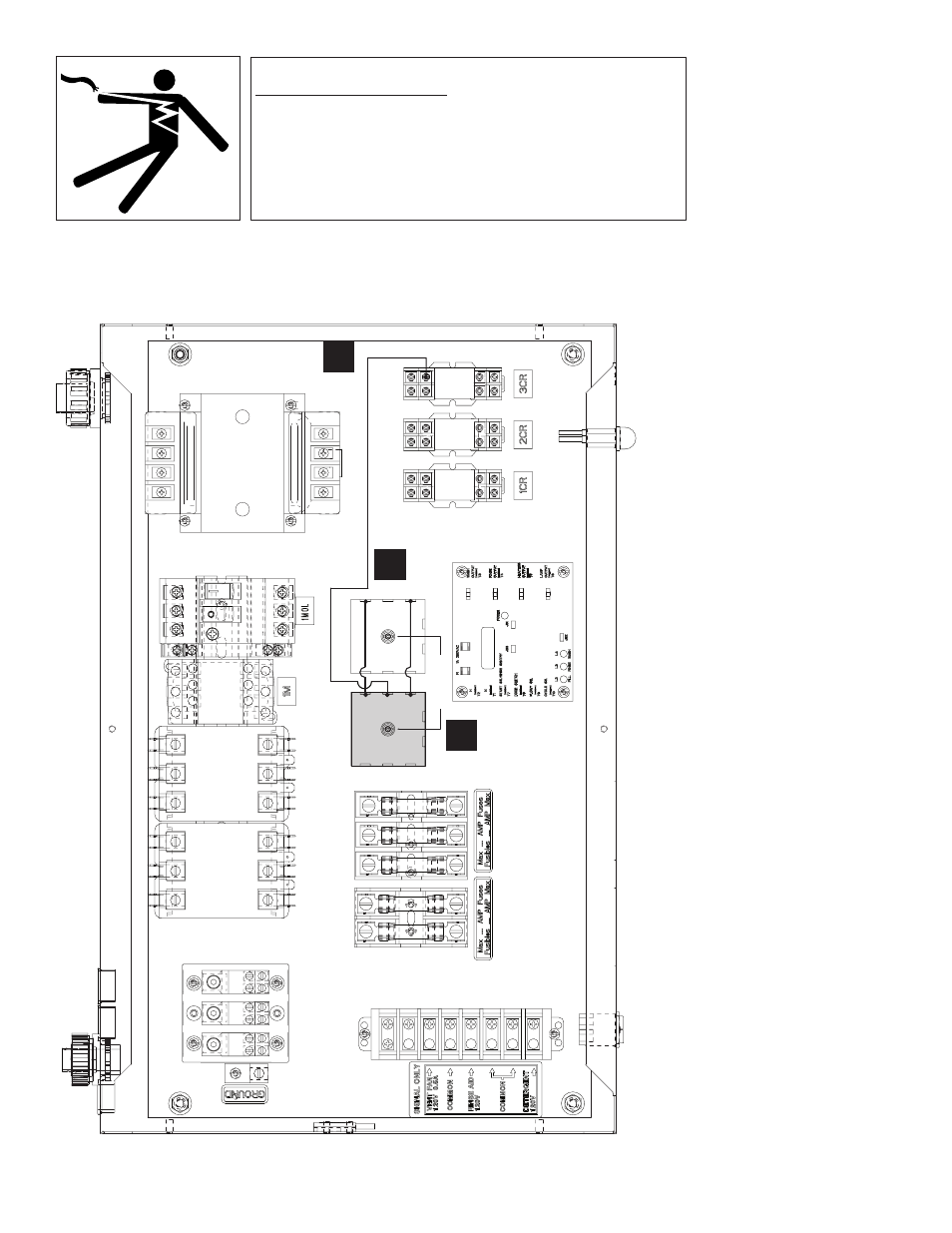

Top Cabinet Electrical Installation:
Follow the lettered steps (A, B, C) to make the installation.
CAUTION:
Make sure main power to the
machine is disconnected to
the machine before performing
any work.
A. Mount the new timer to the
base of the cabinet using
the 6-32 x 1" Truss Hd.
screw as shown.
B. Connect the wire #52
contained in the kit from
the terminal on the timer
to relay 3CR as shown.
C. Install a jumper wire from
terminals #2 and #3 as
shown.
D. Replace the cover.
A
C
B
WARNING:
Electrocution or serious injury may result when working on an
energized circuit.
Disconnect power at the main breaker or service disconnect
switch before working on the circuit.
Lock-out and tag the breaker to indicate that work is being
performed on the circuit.
Test Operation :
1. Turn main power and
water supplies to the
machine.
2. Turn the dishwasher
power switch ON. The
machine will fill and the
tempering solenoid valve
will open, then close when
the machine is full.
3. The tempering valve
should open during the
final rinse then close.
4. Drain the dishwasher. The
tempering valve should
open for 30-seconds and
then close.
