Introduction:
The drain water tempering kit is designed to inject cold water into the dishwasher drain water effluent to ensure that the
temperature of the water leaving the dishwasher drain and/or overflow does not exceed a temperature of 140°F/60°C.
This operation is most often required by the local plumbing and sanitary codes of the location.
The following instructions describe how to perform a field installation of the drain water tempering kit provided
by the manufacturer of the Champion Model DH2000 and the Champion-Moyer Diebel Model MD2000.
Kit Components:
The Drain Water Tempering Kit P/N 900923 may be installed at the factory or shipped as a separate part to be installed
at the installation site. Refer to the parts list below to ensure all the parts necessary for the installation are available.

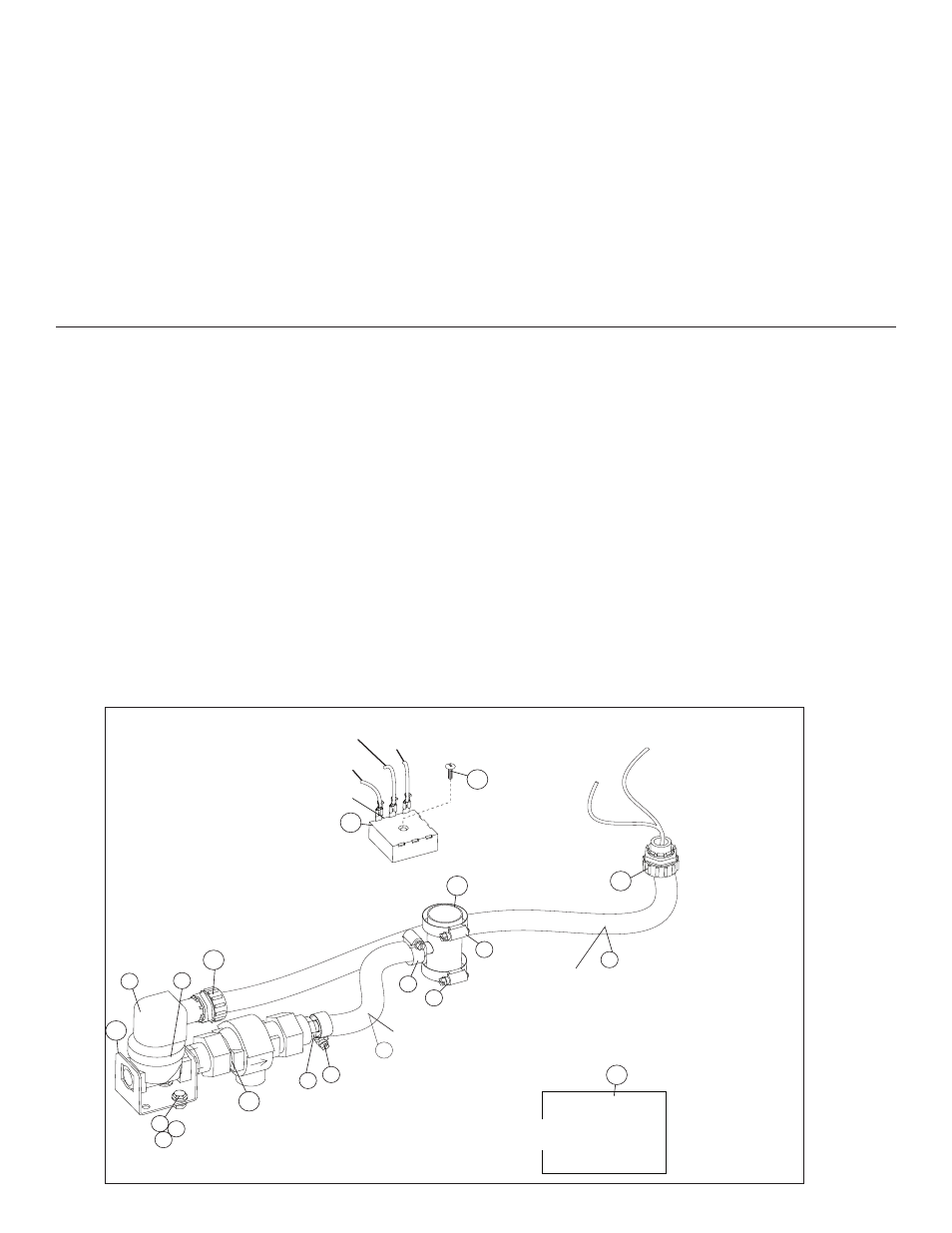

Refer to the parts list and illustration below.
Item No. Part No. Description Qty .
1 100734 BOLT, HEX HD. 1/4-20 X 1/2" SST 2
2 100209 NIPPLE, 1/2" npt X CLOSE BRASS 1
3 105994 CLAMP, HOSE, M10, 14/27 SST, GEAR-TYPE 2
4 106026 WASHER, FLAT 1/4", SST 2
5 107340 CLAMP, HOSE M28, SST, GEAR-TYPE 2
6 107417 1/2" 1.D RUBBER RE-INFORCED, 15"/38cm 1
7 107419 BARB, HOSE ST., 1/2" NPT X 1/2" HOSE, BRASS 1
8 109886 VALVE, SOLENOID, 1.2" NPT 120VAC COIL 1
-- 109902 KIT, VALVE REPAIR A/R
-- 108516 COIL, SOLENOID 120VAC A/R
9 110551 BACKFLOW, PREVENTER, 1/2" NPT BRONZE 1
10 110834 CONDUIT, 1/2", SEALTITE BLACK 26"/66"/66cm 1
11 110836 FITTING, STRAIGHT, 1/2" SEALTITE 1
12 114662 TIMER, INFITEC 30 SECOND 1
13 114695 INSTALLATION INSTUCTIONS 1
14 0312146 BRACKET, VALVE FWR 1
15 333280 TEE, WELDMENT, 1-3/8" X 1/2" BARB X 1-3/8" 1
16 106482 WASHER, LOCK SPLIT 1/4" SST 2
17 100003 NUT, PLAIN 1/4-20 SST 2
18 107564 SCREW, 6-32 X 1" TRUSS HD. SST 1
Timer
Located in Top Cabinet
Wire #3
Wire #2
Wire #52
Wire #2
Wire #51
Located in Junction Box
Note:
1. See Schematic # 702119 Rev.B or later for wiring references.
2. Revisions to current drawing will revise instructions to Form No. 114695.
Rubber Hose measures15"/38cm.
1/2" Flexible Conduit measures
26"/66cm.
