Conversion Installation:

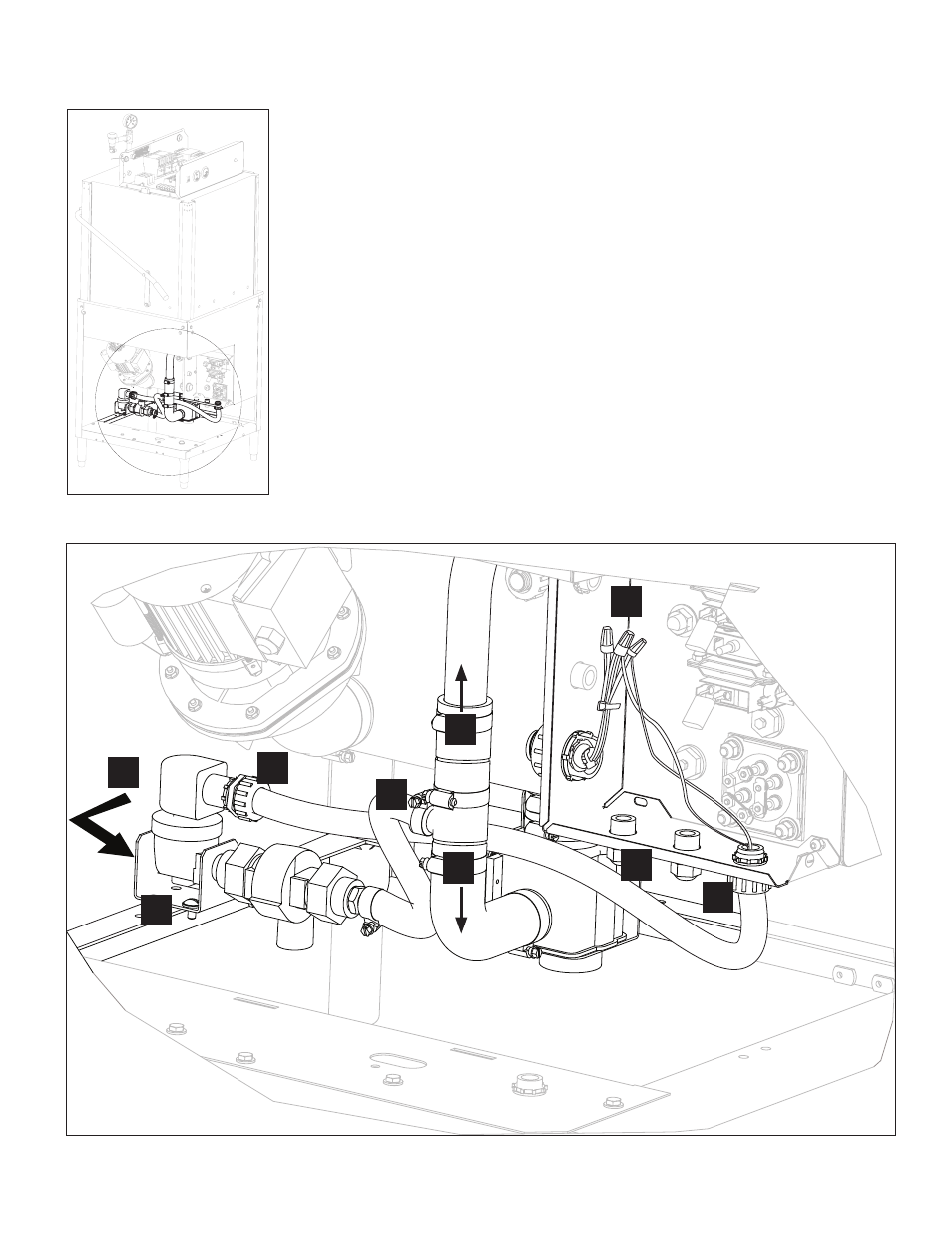

Follow the lettered steps (A, B, C, D. E, F) to make the installation easier.
A
A
B
C
D
C
D
E
#2
#51
The kit is installed on the base
of the machine.
Refer to the next page for the electrical connections that are made in the Top Cabinet to complete the Conversion Installation
F
A. Remove the existing hose connected on the overflow tube.
Cut the hose in half. Install the Tee fitting with the Tee facing the solenoid.
Slide the hoses in place and tighten.
B. Install the solenoid bracket to the base of the machine in the holes
provided. Use 1/4-20 bolts and mounting hardware.
C. Connect the 1/2" rubber hose to the Tee that was installed in the overflow.
D. Thread the solenoid wires through the sealtite tubing so they extend into
the junction box.
E. Wire nut the #2 wire and the #51 wire in the existing wire nut connectors.
Close the junction box.
F. Connect a 1/2" cold water line to the inlet of the solenoid valve. Install a
pressure regulating valve (PRV) before the solenoid in order to adjust the
cold water pressure to 20-25 PSI/137.8-172.4 kPa flowing pressure.
Install a 1/2" or larger valve before the PRV for servicing.
Refer to the next page for the electrical connections in the Top Cabinet.
