9
Dedicated Height Sequencer
Assembly
3.1
Unit Assembly for Single Dedicated Height Sequencer
Place the Sequencer in a laboratory workspace for authorized personnel only. For protection
against possible damage, the aluminum plate and upper and lower reservoirs are shipped
detached from the unit. Do not attach reservoirs until after aluminum plate is installed. To
assemble follow steps below:

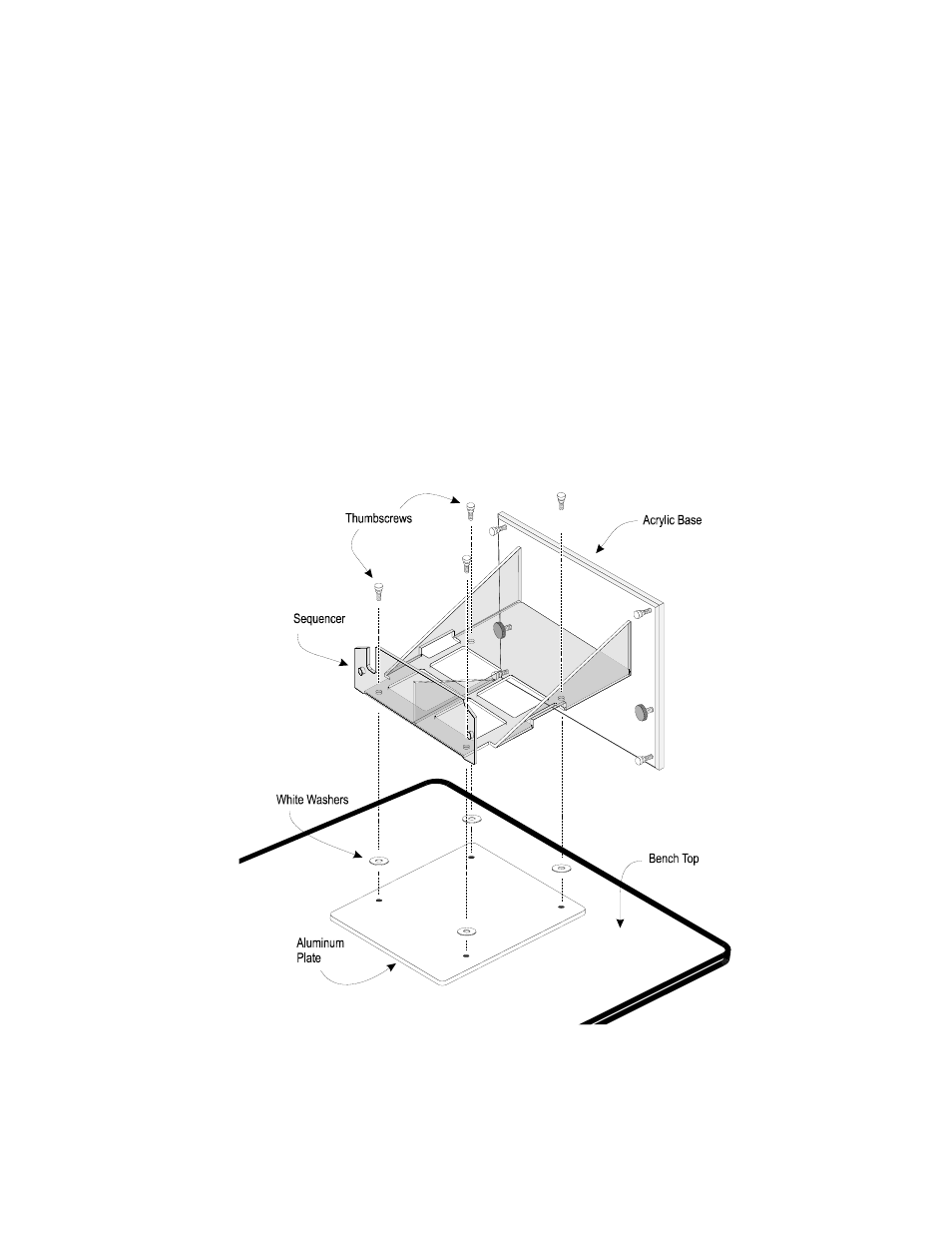

A. Aluminum plate installation (see diagram below).
1. The top-front portion of the aluminum plate will be identified. Place the aluminum
plate face down on the edge of the bench-top as illustrated below. Larger offset of
screw holes in aluminum plate should align with the top of the sequencer upright.
2. Place the four white washers on top of screw holes.
3. Place sequencer in horizontal position with base overhanging bench-top making sure
to support base of unit with one hand and line up the thumb screw holes with washer
and aluminum plate holes.
4. Support base of unit with one hand while attaching the 4 thumbscrews. Tighten
screws and return sequencer to upright position.
