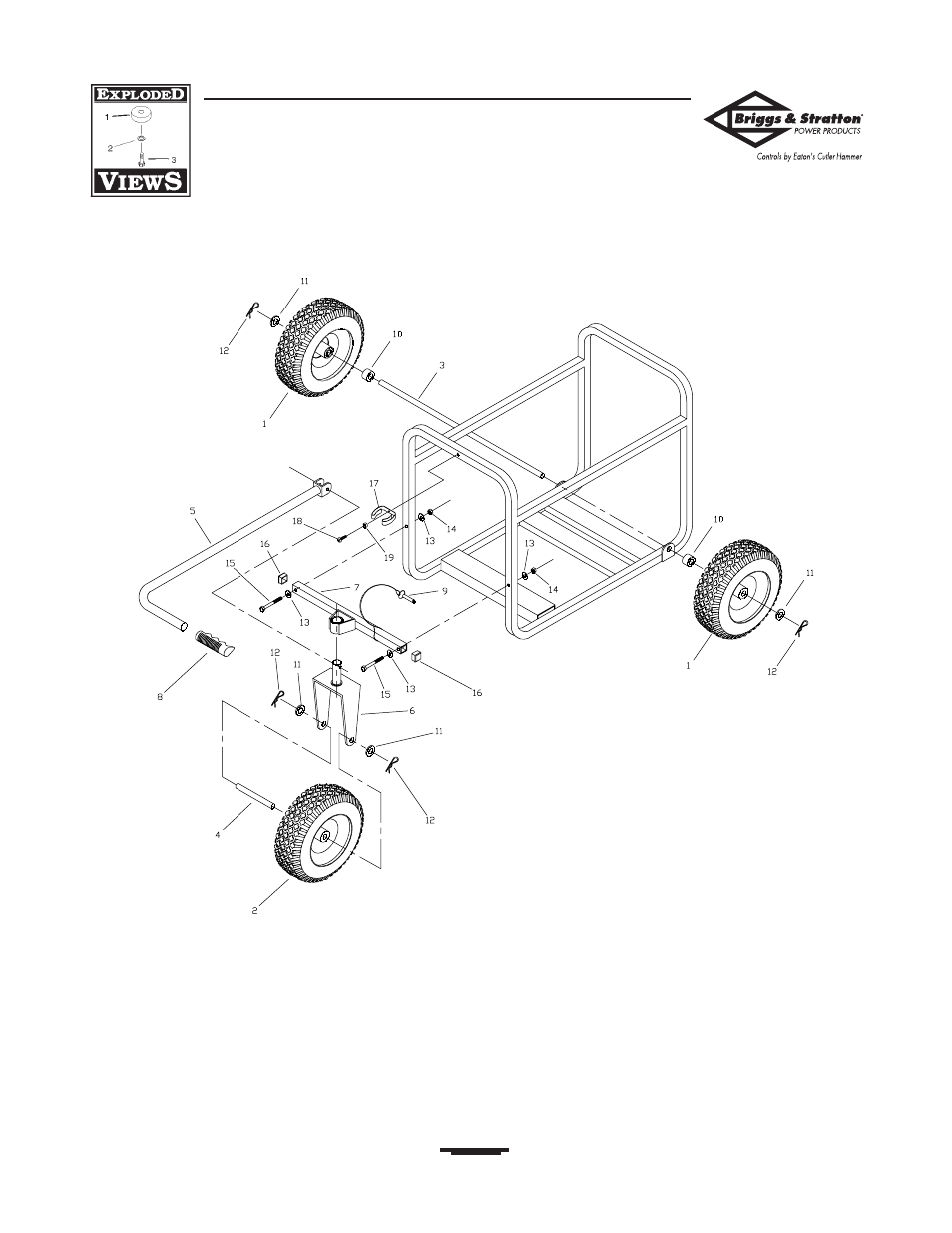

WHEEL KIT EXPLODED VIEW AND PARTS LIST
Item Part # Qty. Description
1 89742GS 2 ASSY,Wheel
2 B4905GS 1 ASSY,Wheel Hub Ext.
3 93693LGS 1 AXLE, Zinc Plate 700
4 93693EGS 1 AXLE, Zinc Plate 150
5 HB4122GS 1 ASSY, Handle Hitch
6 HB3375GS 1 WELDMENT, Fork Pivot
7 H190738GS 1 ASSY, Pivot
8 B4134GS 1 GRIP, Handle
9 B4135GS 1 PIN, Handle Release
10 89635GS 2 SPACER,Wheel
Item Part # Qty. Description
11 22247GS 4 WASHER, Flat
12 87005GS 4 PIN, Quick Release
13 96796GS 4 WASHER, Grommet Retainer
14 52858GS 2 NUT, Locking
15 52203GS 2 CAPSCREW, Hex Head
16 46476GS 2 CAP PLUG
17 B2427BGS 1 CLIP, Spring
18 B5164GS 1 SELF DRILLER
19 186569GS 1 BUMPER, Recess
