Page 28
28
Briggs & Stratton Power Products Home Generator System
Owners Manual

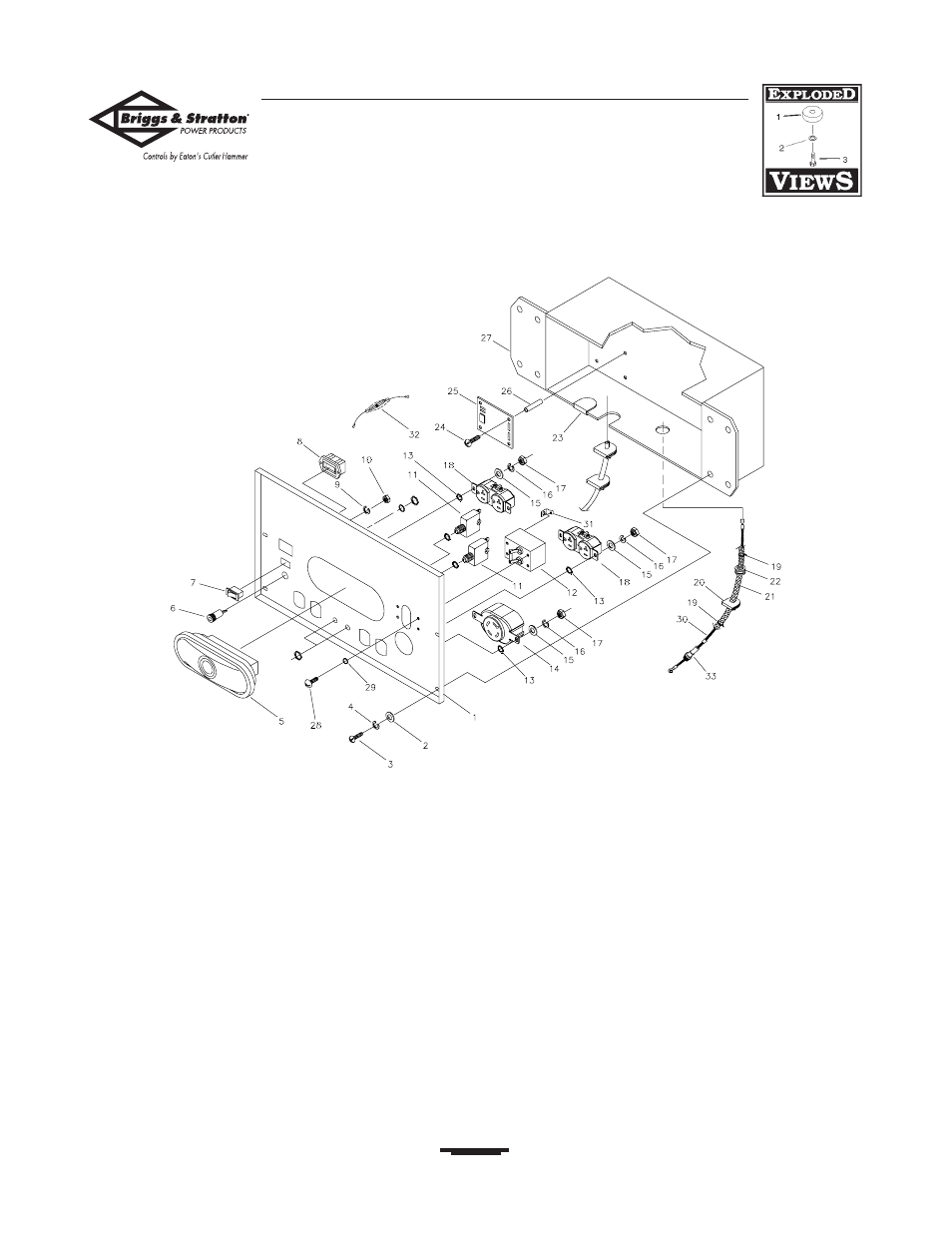

CONTROL PANEL EXPLODED VIEW AND PARTS LIST
Item Part #
Qty. Description
1
BB4689GS
1
PANEL, Control
2
23897GS
4
WASHER, Flat
3
49226GS
4
WASHER, Lock
4
91526GS
4
MACHINE SCREW, Phllps Pn Hd
5
B4695GS
1
LIGHT, 12V Backup
6
B4694GS
1
JACK, Coaxial DC Power
7
20984GS
1
SWITCH, Rocker (On - Off)
8
77604GS
1
METER, Hour, Hobbs
9
43182GS
2
WASHER, Lock
10 51714GS
2
NUT
11 75207GS
2
CIRCUIT BREAKER, 20A Manual
Reset
12 82081GS
1
BREAKER, 30A Manual 2-Pole
13 23365GS
6
WASHER, Shakeproof
14 43437GS
1
OUTLET, 120/240V - 30A
15 43180GS
6
WASHER, Flat
16 22264GS
6
WASHER, Lock
17 51715GS
6
NUT, Hex
Item Part #
Qty. Description
18 68759GS
2
OUTLET, 120V - 20A Duplex
19 28739AGS
2
WRAP, Black Tie
20 84135GS
1
GROMMET, Rubber
21 84409GS
1
SLEEVING, Flexo
22 B1127GS
1
GROMMET, Rubber
23 84242GS
1
GROMMET, Plastic
24 64526GS
8
SCREW, Self Tapping
25 83970GS
1
BOARD, System Control
26 64525GS
4
STAND OFF, Hex
27 B92069GS
1
BOX, Control Panel
28 36900GS
4
MACHINE SCREW, Phllps Pn Hd
29 23364GS
4
WASHER, Shakeproof
30 190914GS
1
ASSY,Wire Harness
31 74138GS
1
ADAPTER, Male Disconnect
32 B5112GS
1
ASSY, Diode
33 A3746GS
1
ASSY, Fuse Holder
A3747GS
1
FUSE, 10A Normal BLO
(Included with Item 33)
