Barranca Diamond PF10 Power Feed Trim Saw - Manual (Page 22)

22
BLADE ARBOR ASSEMBLY AND PULLEYS (continued)

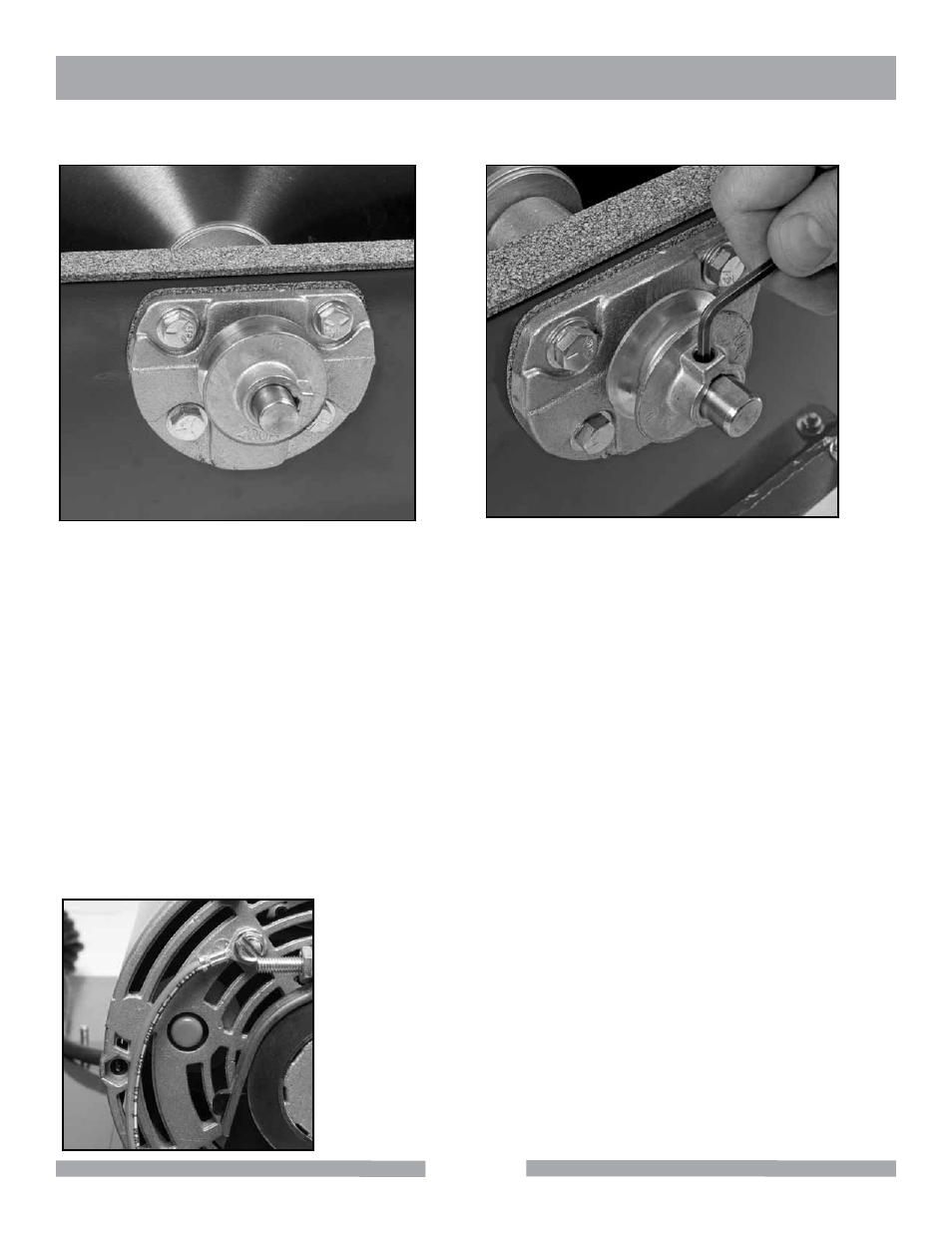

Fig 29. Arbotng bolts Fig 30. Pulley set screw
Periodically, check the tightness of the four blade arbor housing mounting bolts (fig 29) to make sure they
are securely tightened to the oil reservoir. Should the 2 inch OD die cast pulleys on either the motor or blade
arbor shaft need to be removed or replaced, loosen the set screw on the hub (fig 30) of each pulley with a US
standard Allen/hex wrench to remove the pulley from the shaft.
MAIN MOTOR
The Cab Combo is equipped with a Baldor 1/3 HP 1725 RPM single-phase 120 volt 60 Hz 8 amp motor. The
motor shaft has sealed ball bearings and requires no lubrication. The motor is protected from thermal damage
(overheating) with an automatic shut-off switch. If the motor overheats it will automatically shut off and restart
once its internal components cool down and the motor is restarted manually (red button). Be sure to shut off
the main motor by placing the switch lever to the OFF position and disconnecting the power source. After al-
lowing the motor to cool (2 to 3 hours), push the red reset button on the side of the motor (fig 31) and restart
the unit by turning the switch to ON. If the motor does not restart after a cool down period, remove the motor
and have an authorized repair service center for Baldor inspect the motor. Barranca Diamond can refer you to
an authorized motor repair service center in your area.
Please note: On PF10 trim saws prior to serial number 1260, the motors
do not have reset switch. Therefore it is imperative that if the saw motor
should stop during operation that the power to the main motor be shut off
by placing the toggle switch in the MIDDLE/OFF position as the motor will
restart automatically once cooled down.
PF10 MAINTENANCE
