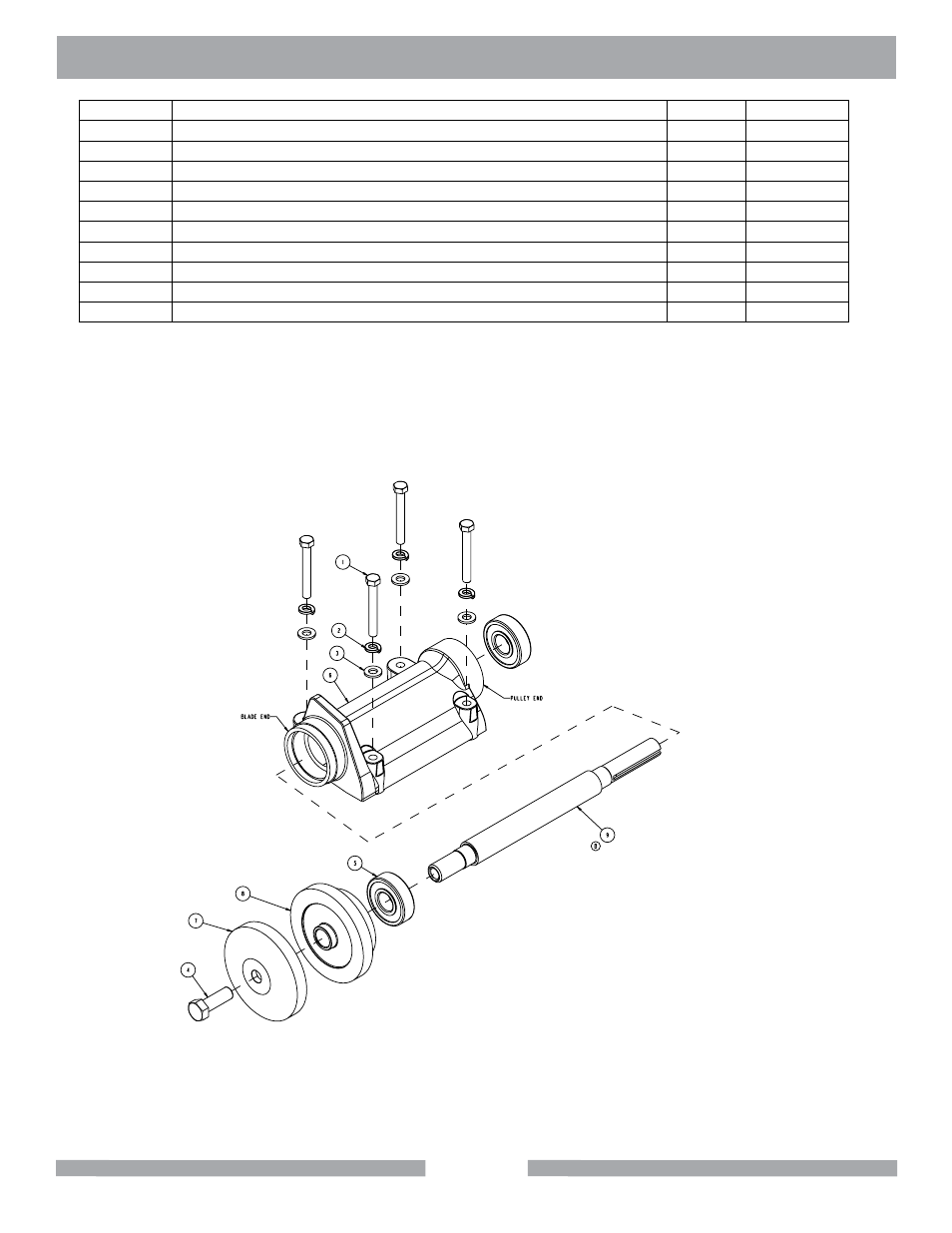

MK-5000G EXPLODED VIEW
BLADE SHAFT
ASSEMBLY
(STANDARD)
Item
Description
Qty
Part #
Arbor Assembly Standard
-
161208
1
Screw, Hex HD 5/16 - 18 x 2 - 1/2
4
101675
2
Washer, 5/16 Split Lock
4
151747
3
Washer, 5/16 Sae Flat
4
151754
4
Screw, Hex HD 1/2 - 20 x 1-1/4
1
152122
5
Bearing, Arbor Housing
2
154594
6
Casting, 2000/5000 Arbor - Comp
1
154637
7
Flange, Outer, Masonry, 4"
1
161304
8
Flange, Outer, Masonry, 4"
1
161305
9
Shaft, Blade, 20mm
1
165861
