11

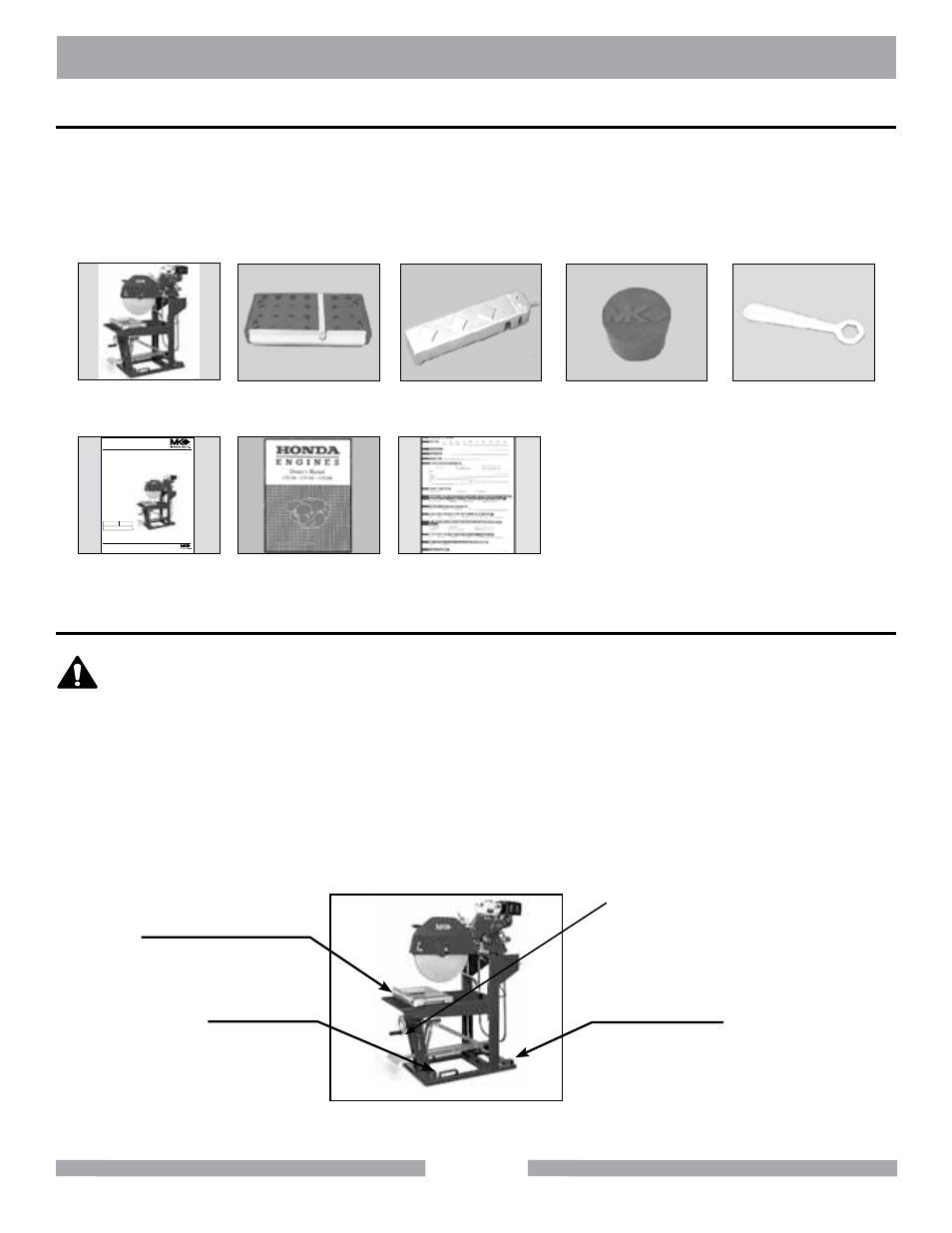

MK-5000G UNPACKING & TRANSPORT
Lift Point
Cutting Head
Locked Down
Lift Point
Remove Movable
Cutting Table
UNPACKING
Your MK-5000G has been shipped from the factory thoroughly inspected. Only minimal assembly is required.
If not done, completely remove the plastic wrapping from the MK-5000G.
Remove the accessories box from the Water Basin and remove the contents from the box.
CONTENTS
In your container, you will find one (1) MK-5000G, one (1) movable cutting table, one (1) adjustable cutting guide, one (1)
drain plug, one (1) blade wrench, one (1) owner’s manual, one (1) Engine owner’s manual and one (1) warranty card.
1. Never transport the MK-5000G with water in the Water Basin.
2. The MK-5000G series Block Saw weighs approximately 515 pounds, a forklift should be used
for transport.
Lock the Cutting Head in the DOWN position, and remove the Movable Cutting Table when transporting
the MK-5000G.
The MK-5000G is designed with forklift ears for ease of transport. To transport –
• Verify the Movable Cutting Head is locked in the down position and the Movable Cutting Table is removed
• Lift and transport the saw to the desired work location
MK-5000G
Block Saw
Movable Cutting
Table
Cutting Guide Drain Plug Blade Wrench
Owner's Manual
09.2009
MK-5009G/5013G
OWNERS MANUAL
PARTS LIST &
OPERATING INSTRUCTIONS
www.mkdiamond.com
MK Diamond Products, Inc.
Caution: Read all safety and operating instructions before
using this equipment. This parts list MUST accompany the equipment at all times.
Revision 100
Manual Part# 160958
Engine Owner's
Manual
Warranty Card
CAUTION
TRANSPORT
NOTE:
